Hioki 3159 - Appendix 3 9615 H.V. TEST LEAD (Standard Accessory)

APPENDIX 3
_____________________________________________________________________________________________

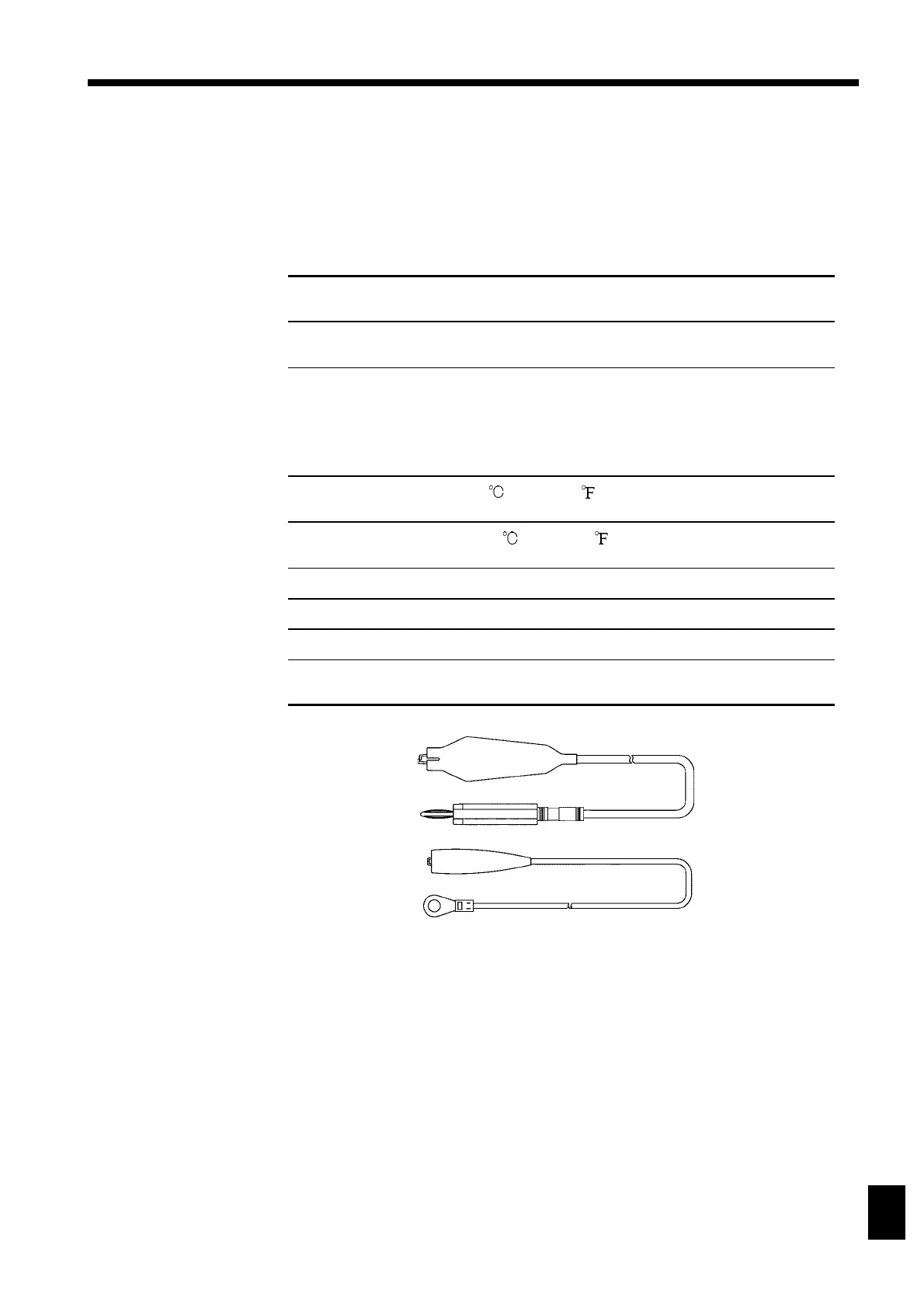

Appendix 3 9615 H.V. T EST LEAD (Standard Accessory)
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
1
0
11
1
2
1
3
1
4
1
5
APP
Rated voltage 5 kVAC or 5 kVDC (High voltage side)
600 VAC or 600 VDC (Return side)
Rated current 150 mAAC or 150 mADC (High voltage side)
10 AAC or 10 ADC (Return side)
Dielectric strength 6.25 kVAC Sensitivity current 5 mA 1 minute
(High voltage side)
1.35 kVAC Sensitivity current 5 mA 1 minute
(Return side)
Test point (between the core wire and the cable
exterior)
Ambient operating
conditions
0to40 (32 to 104 ), 80% RH or less (no
condensation)
Ambient storage
conditions
-10 to 50 (14 to 122 ), 90% RH or less (no
condensation)
Operating place Indoors, max. 2000 m (6562 feet) height
Dimensions Approx. 1500 mm (59.06")
Mass Approx. 100 g (3.5 oz.)
Standard Applying EN 61010-2-031:1994 Pollution Degree 2, overvoltage
category I
Appendix 3 9615 H.V. TEST LEAD (Standard Accessory)
Testing of the grounded lead should be avoided, unless absolutely necessary.
If a part such as the lead must be tested, be sure to connect the low-side
crocodile clip (black) to the grounded end of the lead. Connecting the
highside crocodile clip (red) to the grounded end of the lead may result in
electric shock or damage to the equipment.
