6.9 Voltage Comparator Position
______________________________________________________________________________________________
0
:
Start test (Initial setting)
1
:
End test
NOTE
When the Voltage Comparator function is set to OFF or the Voltage Comparator
function is set to ON but the timer is set to OFF, the Voltage Comparator function
is disabled and o
p
tional settin
g
s are ineffective.
6.9 Voltage Comparator Position
When performing a withstand voltage test, you can select whether you want
to view the output-voltage when the test starts, or when the test ends.
If "0: Start test" is selected, the Voltage Comparator function is active
immediately before and during the withstand voltage test.
If "
1
: End test" is selected, the Voltage Comparator function is only active
when the withstand voltage test ends.
1. Press
SHIFT
+
STOP
keys while in READY state to display the Optional
function setting screen.
2.

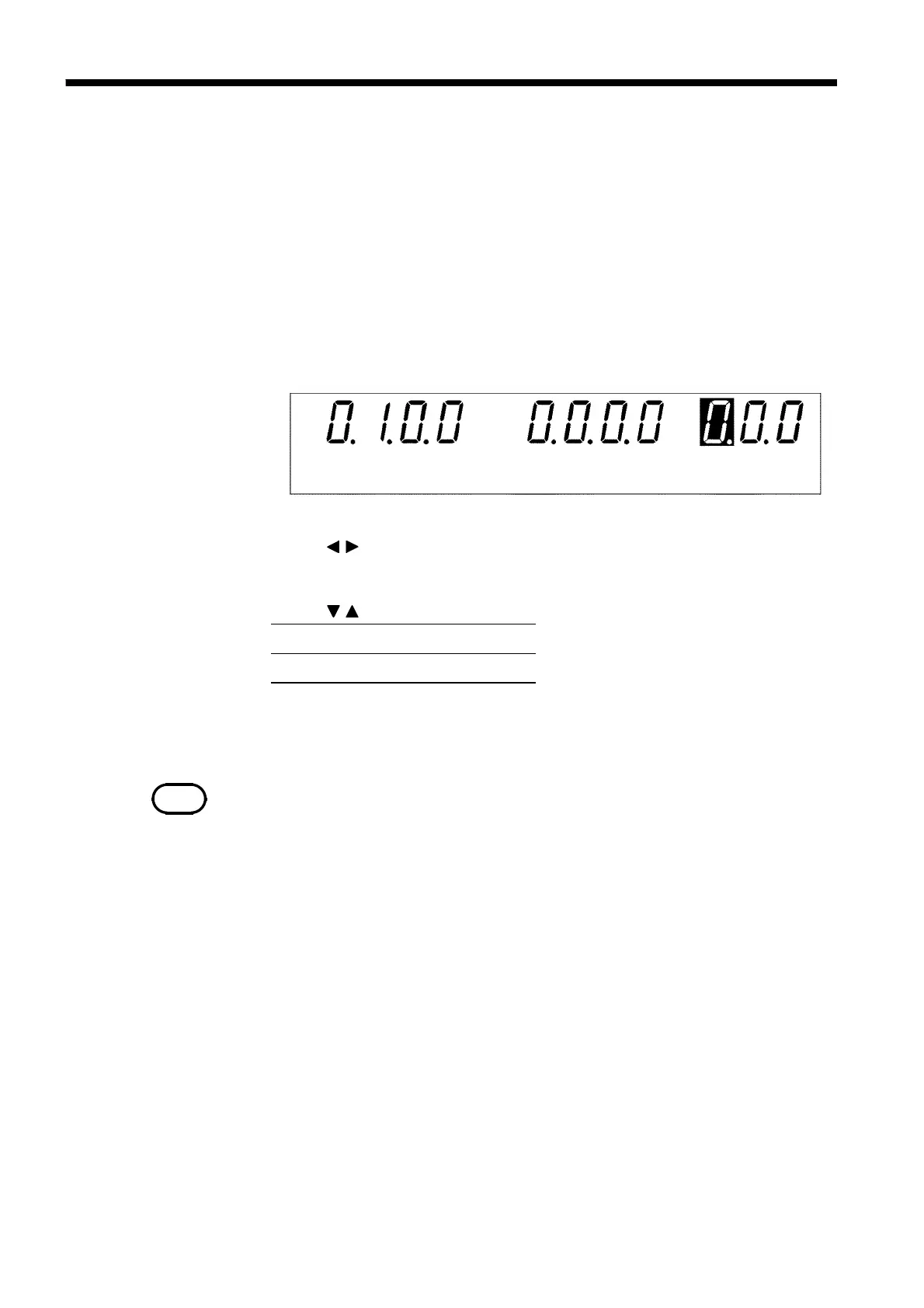

Use the / keys to move the flashing cursor to the position shown in the
figure.
3.
Use the / keys to set a value at the flashing cursor location.
4. To complete the optional settings, press
SHIFT + STOP keys. The unit
reverts to the READY state.
