Hioki 3159 - 2.5 Connecting the 9615 H.V. TEST LEAD

14
_____________________________________________________________________________________________
2.5 Connecting the 9615 H.V. TEST LEAD
______________________________________________________________________________________________
WARNING
To prevent electrical shock, turn off the power unit and tested object,
make sure that there is no high voltage being applied to the output,
confirm the following 3 items, and connect the 9615 H.V. TEST LEAD.
(1) The analog voltmeter reads 0 kV.
(2) The
DANGER
lamp is OFF.
(3) The
READY
lamp is lit (it is off in the Double Action mode).
Before connecting the 9615 H.V. TEST LEAD, be sure to check its
insulation for tearing and metal exposure.Using the product in such
conditions could cause an electric shock, so contact your dealer or
Hioki representative for repair.
To avoid electric shock, make sure the 9615 H.V. TEST LEAD is
securely connected before starting a test, as a loose test lead can
cause a hazard when a voltage is output.

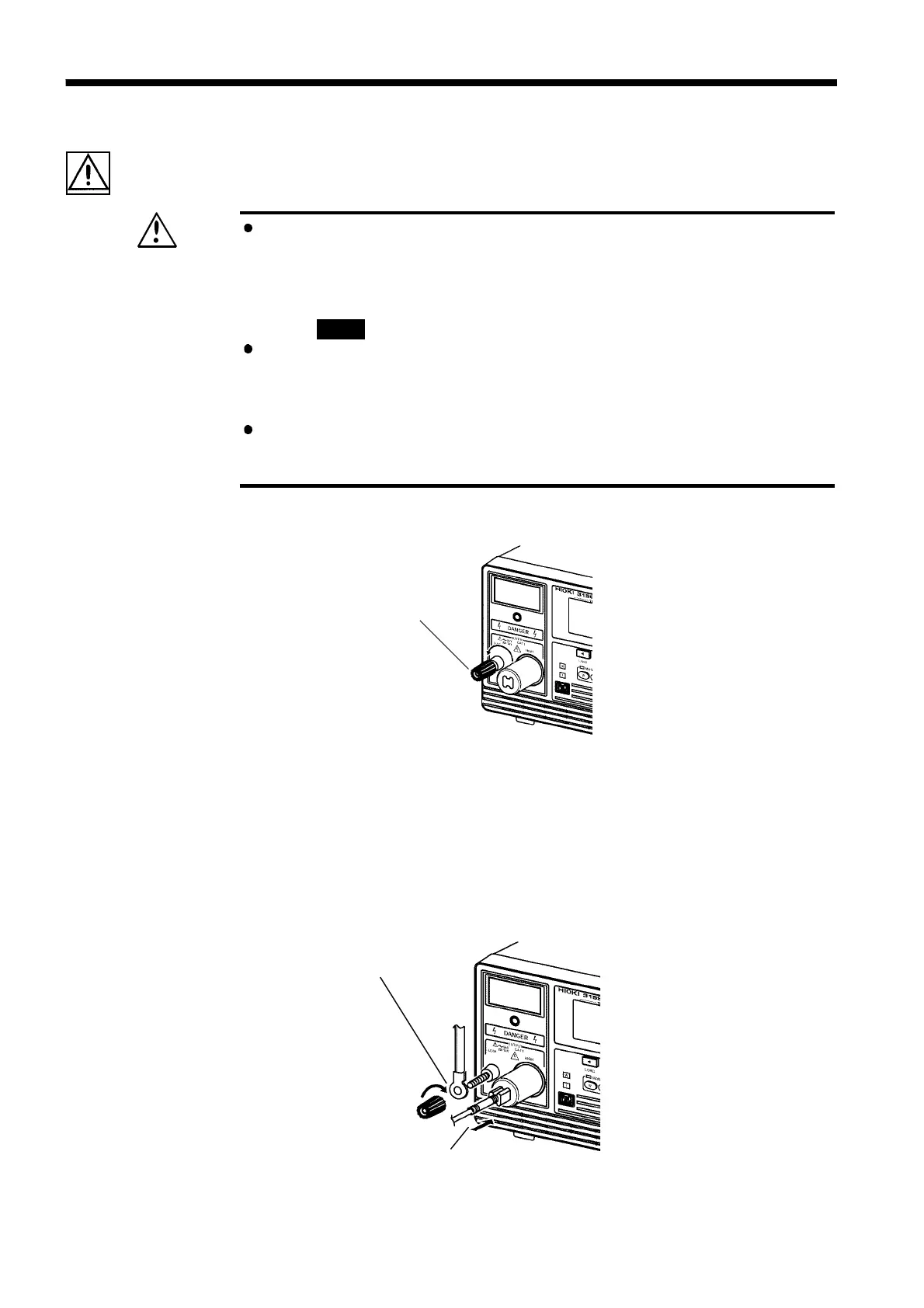

Low terminal
Plug on the H.V. TEST LEAD
(low voltage side)
Plug on the H.V. TEST LEAD (high voltage side)
2.5 Connecting the 9615 H.V. TEST LEAD
1. Remove the LOW terminal by turning it counterclockwise.
2. As shown in the figure, insert the plug on the H.V. TEST LEAD (low
voltage side).
3. Secure the LOW terminal by turning it clockwise.
4.
Connect the plug on the H.V. TEST LEAD (high voltage side) to the
HIGH terminal.
