Hioki 3159 - 3.3.1 Setting the Comparative Voltage Value

25
_____________________________________________________________________________________________
3.3 "SETTING " State
______________________________________________________________________________________________

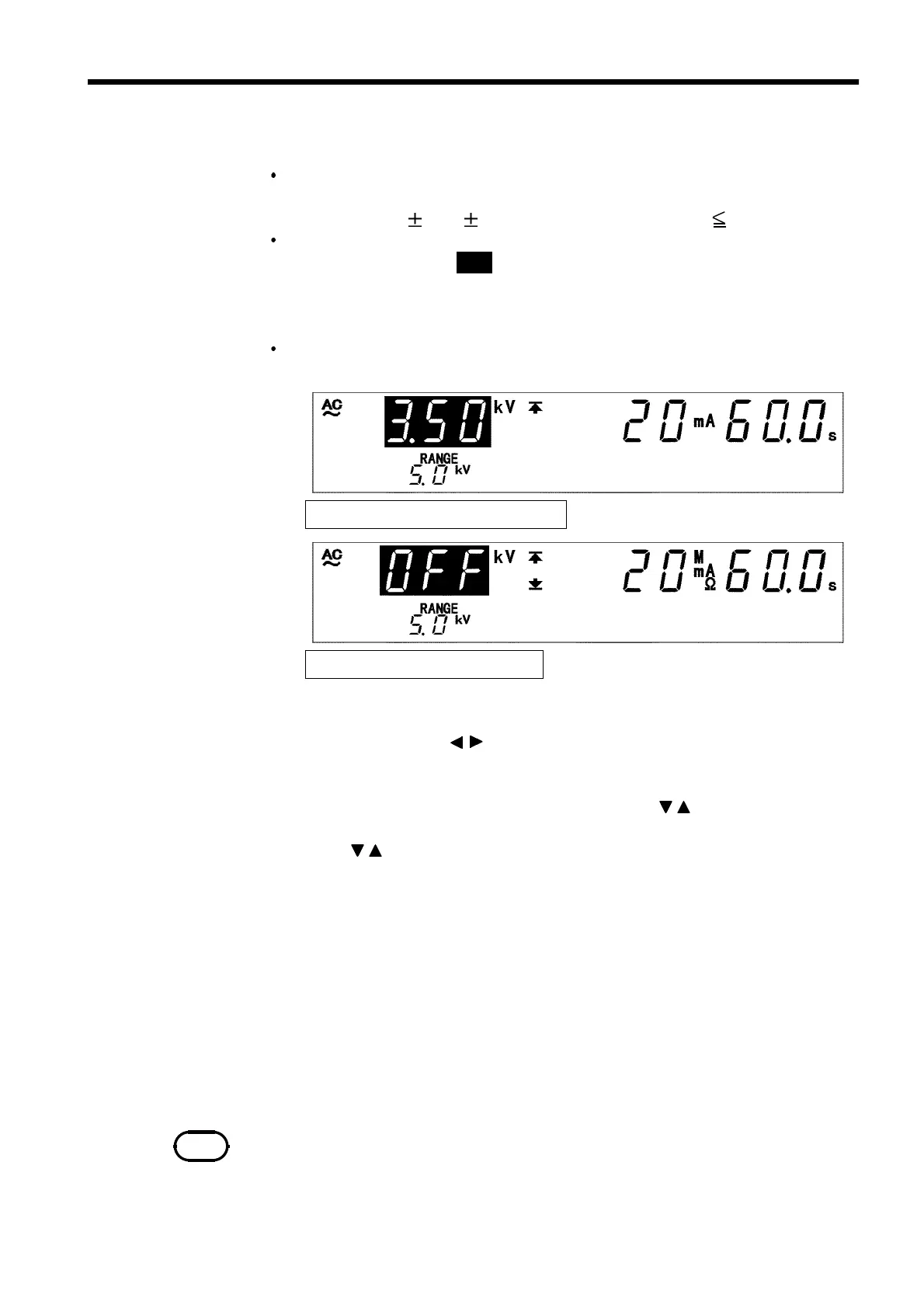

3.3.1 Setting the Comparative Voltage Value
Comparative voltage value:
3.50 kV
Comparative voltage value:
OFF
NOTE
When test time is off, the voltage comparator function is disabled.
If a comparative-voltage value needs to be set, value settings must be
made. Check that the output-voltage reaches the set comparative-voltage
range, which is 5% ( 50 V when the output-voltage 1 kV).
If the output-voltage value fails to reach the comparative-voltage range,
the test does not start.
TEST
flickers and if the value fails to reach the
comparative-voltage range within approximately 5 seconds, the unit
returns a FAIL result and the test ends. Further, if the output-voltage value
deviates from the value range, the test is immediately be terminated.
If this function is not to be used, press the
ON/OFF
key to turn the setting
for that value OFF.
1. If no flashing cursor is displayed in the withstand voltage mode READY
state, press either the
/ key to display the cursor in the
comparativevoltage value position.
2.
Change the comparative voltage value using the / keys. The value
changes in 0.01 kV increments. To change the value by 0.10 kV, press
SHIFT + / keys.
The comparative voltage value can be set from 0.00 kV to 5.00 kV.
If a comparative voltage value is not to be used, press the ON/OFF key to
turn the setting for that value OFF.
3. To finalize the test settings, press the
STOP key. The settings are
confirmed and the unit returns to the READY state.
Optional Function
You can select whether you want to check the output-voltage when the test
starts or ends. (When the default is set to the start of testing.)
(See Section 6.9)
