5.5 PASS or FAIL Determination
______________________________________________________________________________________________

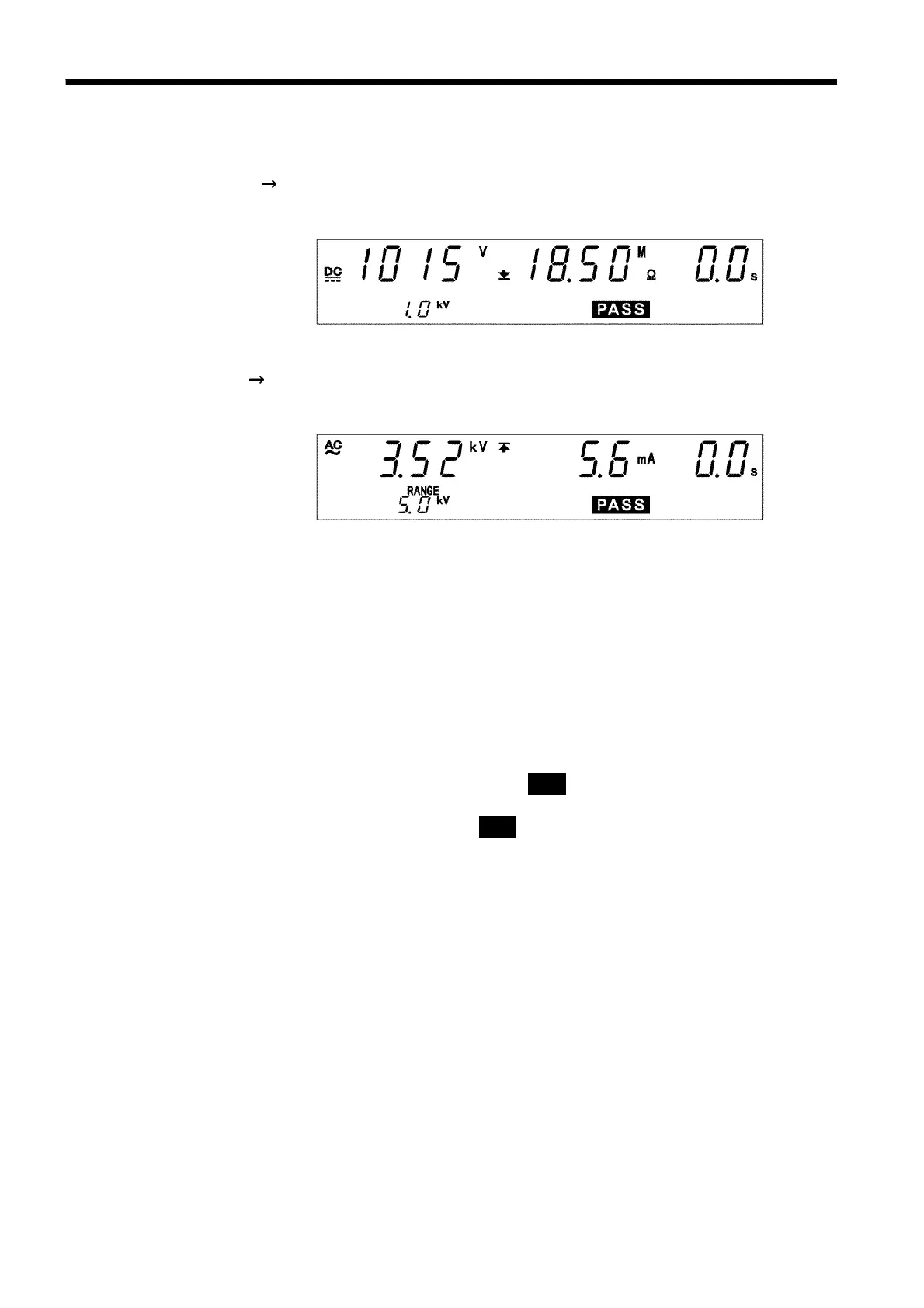

5.5.2 Screening in "PASS" State
(1) W I mode
Similar to the insulation resistance mode TEST state. (See Section 4.5.2)
(2) I W mode
Similar to the withstand voltage mode TEST state. (See Section 3.5.2)
Danger lamp
Indicates that a voltage is being output. This lamp remains lit as long as a
voltage is being applied to the output terminal.
Analog voltmeter
Indicates the voltage being output in withstand voltage test. The analog
voltmeter is not held even if the PASS Hold function is disabled.
Does not move in insulation resistance mode.
External I/O
The
PASS
―――――――
signal is turned ON when
PASS
on the fluorescent indicator is lit.
As long as the PASS state is held, the
PASS
―――――――
signal remains ON. The
PASS
―――――――
signal is turned OFF when the
PASS
light on the fluorescent indicator goes
out. If voltage remains in the output-voltage terminal following termination
of a test, the
H.V.ON
――――――――――
signal remains ON. When the DANGER lamp goes out,
the
H.V.ON
――――――――――
signal is immediately turned OFF. If the voltage drops below
0.03 kV when performing a withstand voltage test, or below 50 V when
performing an insulation resistance test, the DANGER lamp goes out.
