Hioki 3159 - Example of Saving

102
_____________________________________________________________________________________________
7.1 Saving Preset Values
______________________________________________________________________________________________
7.1.2 Example of Saving
Comparative voltage value: 2.00 kV
Upper limit value: 20 mA
Lower limit value: OFF
Test time: 60.0 s
Output voltage range: 2.5 kV
Comparative voltage value: 4.50 kV
Upper limit value: 40 mA
Lower limit value: 3 mA
Test time: 10.0 s
Output voltage range: 5.0 kV

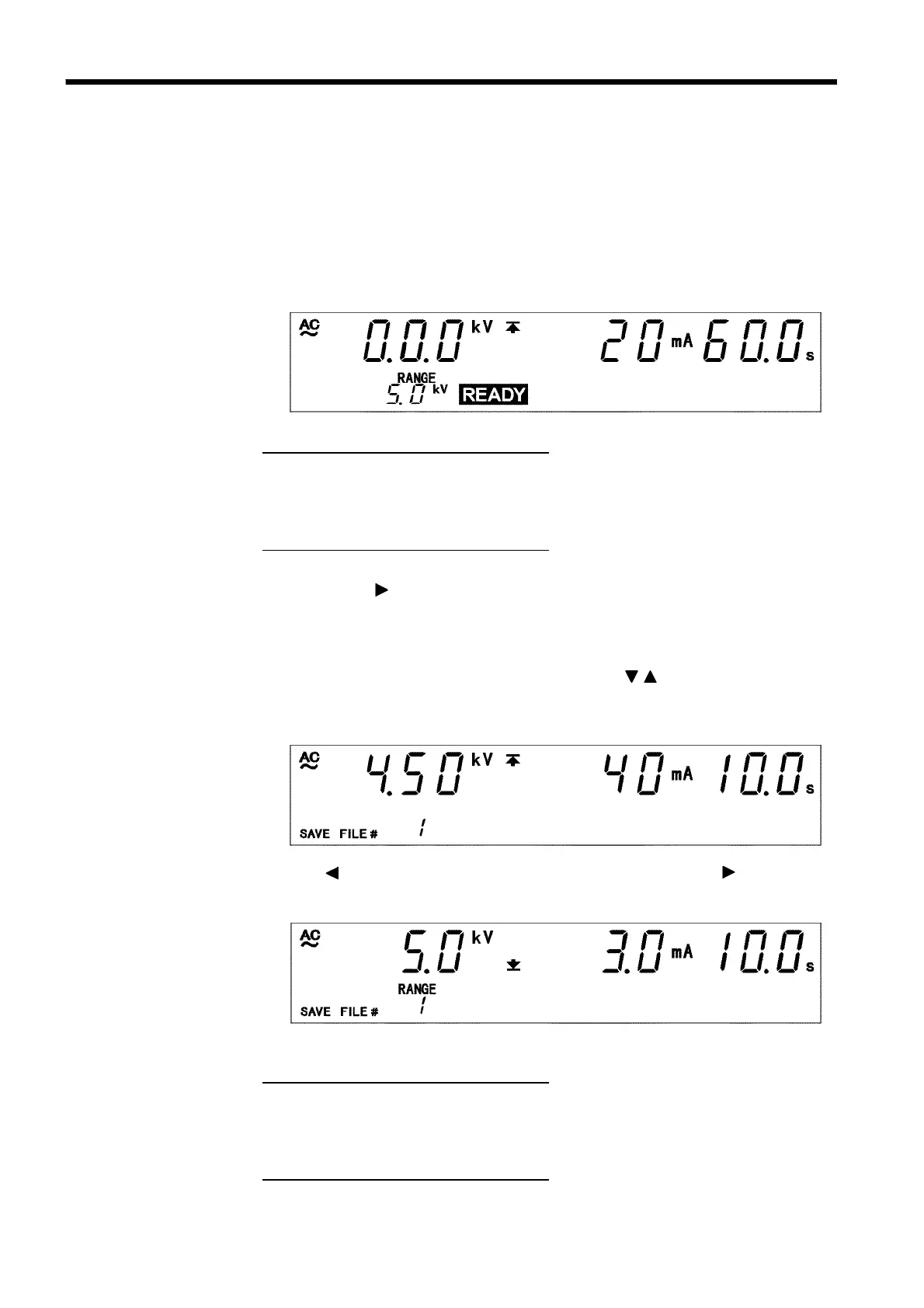

The following example shows how to save in File No.3. We assume that the
3159 is in the READY state.
1. Make the settings that you want to save in the SETTING state and the
unit returns to the READY state.
For more information on making these settings, see Chapter 3.
In this example, settings are made as follows:
2. Press
SHIFT + keys to bring up the save screen.
In the save screen, the value set in the READY state is replaced by the
saved data being displayed. The first saved data displayed is the last data
item from the previous save screen. This example shows "File No.1."The
new data overwrites the previous data. Use the / keys to select the data
to be overwritten. The new data in this example is to be saved in File
No.3.
Use the key to confirm the output-voltage range, and the key to
confirm the lower-limit value.
In this example, File No. 1 contains the following settings.
