Hioki 3159 - Rubber Keys

4
_____________________________________________________________________________________________
1.2 Names and Functions of Parts
______________________________________________________________________________________________

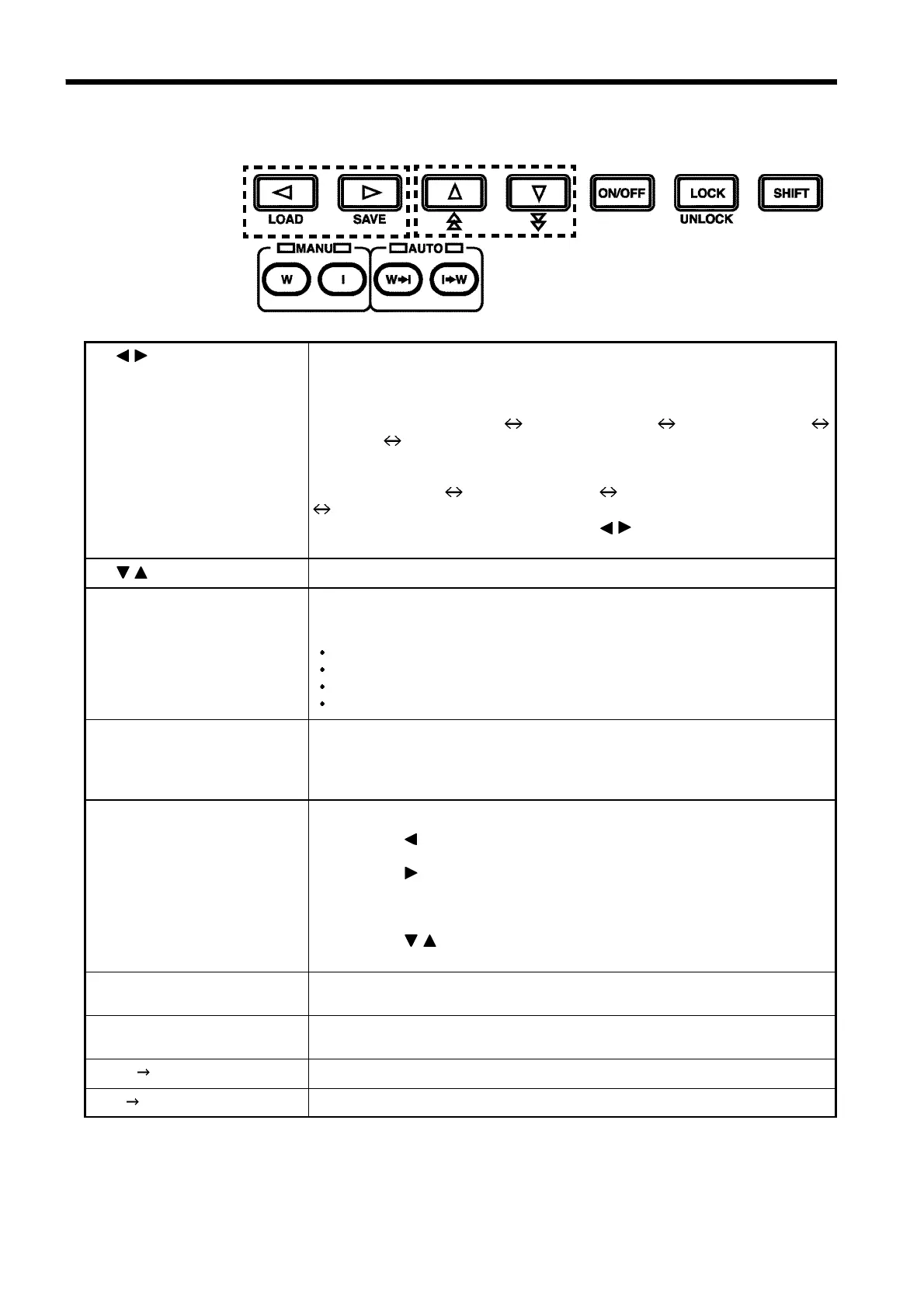

1.2.2 Rubber keys
1
2
3
4
5
6
7
8 9
1
/
key
Moves the flashing cursor.
The switching range is preset before shipment:
Withstand voltage test:
Comparative voltage value
Upper limit Value Lower limit Value
Test time Output voltage range
Insulation resistance test:
Test voltage value
Lower limit Value Upper limit Value
Test time
To display the flashing cursor, press the
/
keys. The cursor appears,
displaying the preset comparative voltage value or test voltage value.
2
/
key
Changes the position at which the flashing cursor appears.
3
ON/OFF
key
Switches on/off the set value for the position of the flashing cursor.
If turned off, the set value is not used in testing.
However, the following key can't perform the switching on/off:
Upper limit Value (Withstand voltage test)
Output voltage range (Withstand voltage test)
Test voltage value (Insulation resistance test)
Lower limit Value (Insulation resistance test)
4
LOCK
key
Used to lock the keys.
When pressed, the
LOCK
key disables all keys except the
START
key,
STOP
key, and
UNLOCK
key (
LOCK
+
SHIFT
key).
(See Section 3.3.2)
5
SHIFT
key
Used in combination with other keys.
(1)
SHIFT
+ key
Displaying the Preset-data loading screen. (See Chapter 7)
(2)
SHIFT
+ key
Displaying the Preset-data saving screen. (See Chapter 7)
(3)
SHIFT
+
UNLOCK
key
Disabling the key lock function.
(4)
SHIFT
+
/
key
Changing the increment size of setting values.
6
W
key
(withstand-voltage test)
Performs withstand voltage tests and settings.
7
I
key
(insulation-resistance test)
Performs insulation resistance tests and settings.
8
W I
key
Tests for voltage, then insulation resistance.
9
I W
key
Tests for insulation resistance, then withstand voltage.
