Hioki 3159 - Examples of Settings

29
_____________________________________________________________________________________________
3.3 "SETTING " State
______________________________________________________________________________________________

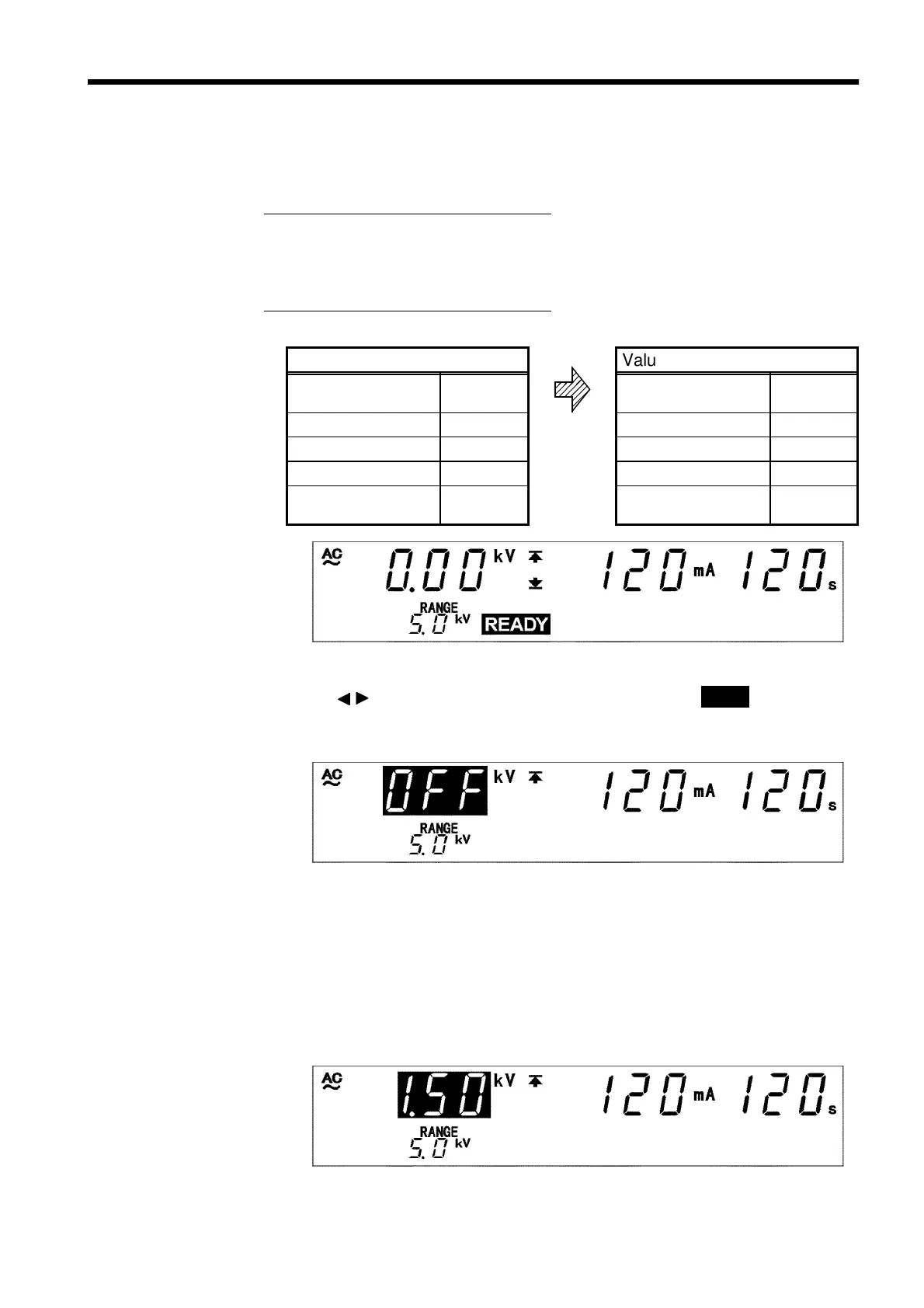

3.3.5 Examples of Settings
Test voltage value: 2.00 kV
Upper limit value: 20 mA
Lower limit value: OFF
Test time: 60.0 s
Output voltage range: 2.5 kV
Values currently set


Values to be set
Comparative
voltage value
OFF Comparative
voltage value
2.00 kV
Upper limit value 120 mA Upper limit value 20 mA
Lower limit value 40 mA Lower limit value OFF
Test time 120 s Test time 60.0 s
Output voltage
range
5.0 kV Output voltage
range
2.5 kV
This section describes the procedure for making withstand voltage test
settings under the following conditions.
The 3159 is in the READY state in withstand voltage mode.
(1) Changing to the SETTING state
Press the / keys to switch to the SETTING state. The
READY
light will go
out, and the flashing cursor will be displayed at the position where the
comparative-voltage value is indicated.
In the READY state, a measured-voltage value is displayed. In the SETTING
state, the display changes to the comparative-voltage value (in this example,
OFF).
(2) Setting the comparative-voltage value
The comparative-voltage value is initially set to OFF. It must be changed to
ON before the value is changed. To do so, press the ON/OFF key.
