9.3 Command Transfer Methods
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
1
0
11
1
2
1
3
1
4
1
5
NOTE
Every time the computer has sent a command, a response is always returned. Make
sure that the computer only sends the next command after it has received the
response to the previous command issued from the 3159.
If multiple commands are sent consecutively, the 3159 may not execute the
commands
,
or command errors ma
y
occur.
Command Parameter
+ +
Delimiter
NOTE
The meaning of the delimiter is to separate commands and data. When the 3159
receives the delimiter, it starts analysis of the command.
9.3 Command Transfer Methods
The command is issued from the computer.
When the 3159 receives the incoming command from the computer, it
executes the processing specified by the command.
When 3159 has completed processing of the command, it always returns a
response to the computer.
When the computer has confirmed the response, it sends the next command.
"

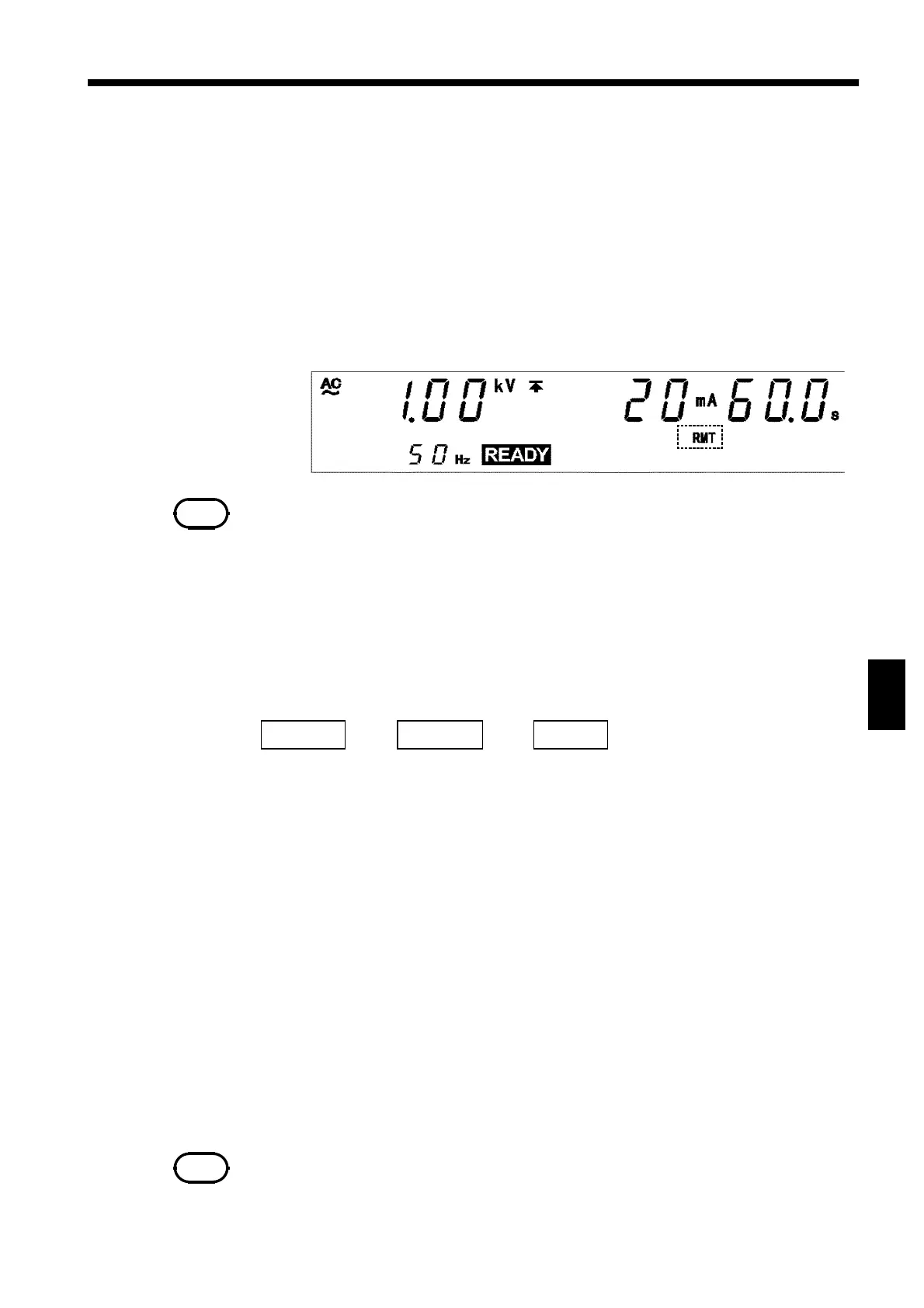

RMT
" lights up on the screen during interface communication.
Command Format
Command Format
The 3159 commands have the following structure.
The command and the parameter are separated by " " ( one character space )
If there is no parameter, send the delimiter after the command.
The command may consist of both upper and lower case letters.
Make sure to use one character space as the separator between the command
and the parameter.
(1) When the command contains a parameter
:CONF:WITH:CUPP 5.0
( + delimiter )
the command format consists of the command
:CONF:CUPP
followed by the
separator " ". Then follows the parameter"5.0". Following the parameter
comes the delimiter.
(2) When the command contains no parameter
:STOP
( + delimiter )
the command format consists of the command
:STOP
immediately followed
by the delimiter.
