8.1 External I/O Terminal
______________________________________________________________________________________________

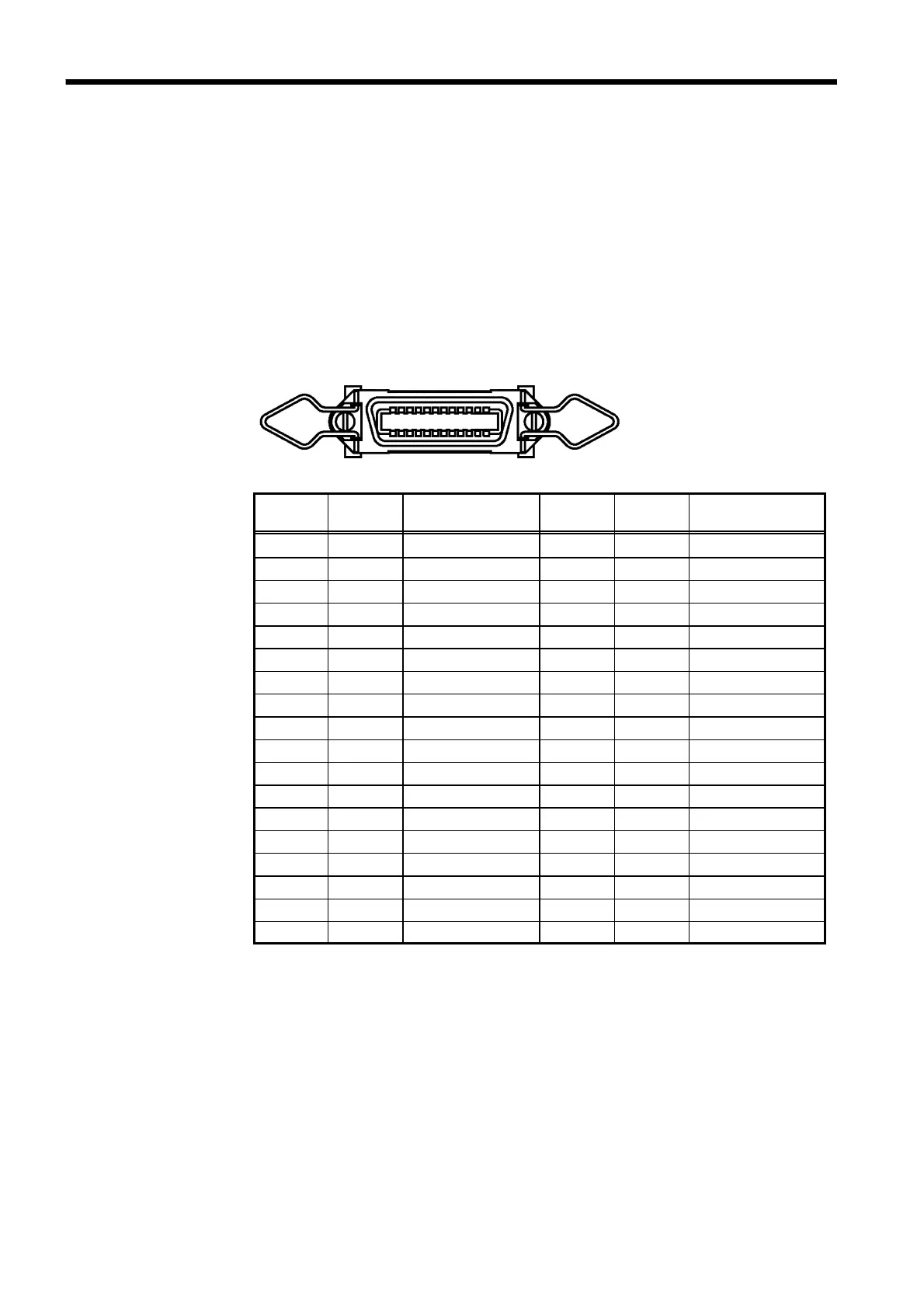

8.1.1 Signal Line
18…

… 1
36
…
…
19
Pin
number
I/O Signal line name
Pin
number
I/O Signal line name
1 OUT
READY
―――――――
19 OUT NC
2 OUT
L-FAIL
―――――――
20 OUT NC
3 OUT
U-FAIL
―――――――
21 OUT NC
4 OUT
PASS
――――――
22 OUT NC
5 OUT
TEST
――――――
23 OUT NC
6 OUT
H.V.ON
――――――――
24 OUT NC
7 IN
EXT-E
――――――
25 OUT NC
8 IN
START
――――――
26 OUT NC
9 IN
STOP
――――――
27 OUT NC
10 IN
INT.LOCK
――――――――――
28 OUT NC
11 OUT
W-MODE
――――――――――
29 OUT NC
12 OUT
I-MODE
―――――――――
30 OUT NC
13 OUT
W-FAIL
――――――――
31 OUT NC
14 OUT
I-FAIL
―――――――
32 OUT NC
15 IN ISO.COM 33 OUT ISO.DCV
16 IN ISO.COM 34 OUT ISO.DCV
17 IN ISO.COM 35 OUT ISO.DCV
18 IN ISO.COM 36 OUT ISO.DCV
Use the following external I/O connectors or their equivalents:
(1) Compatible connector
Compatible connector: XM8A-3621 and XM8K-3623-S
(OMRON Corporation)
RC30-36P (Hirose Electric)
(2) External I/O connector pin numbering
Connector of the 31 59 ma i n uni t : X M8F-3622-12 ( OMRON Corporation)
