Hioki 3159 - 2.4 Powering On and Off the Unit

13
_____________________________________________________________________________________________

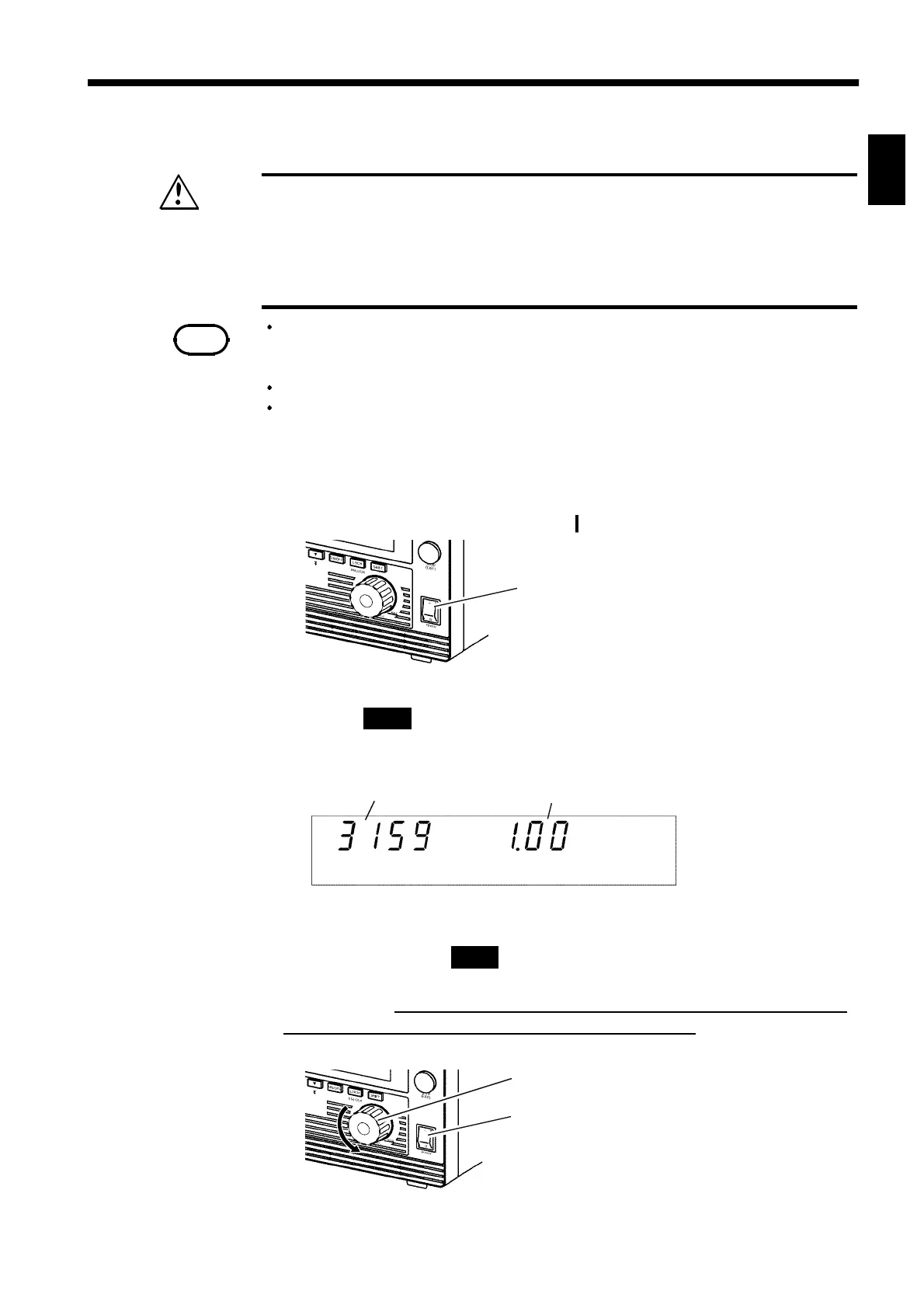

2.4 Powering On and Off the Unit
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
1
0
11
1
2
1
3
1
4
A
WARNING
Before turning on the power, make sure that the voltage of the power
supply being used matches the supply voltage indicated on the rear
panel of the unit. If an attempt is made to use an improper supply
voltage, there is danger of damage to this unit and of life-threatening
risk to the operator. Apply a voltage within the acceptable powervoltage
range. Otherwise, damage to the unit or electrical accidents may result.
NOTE
The settings immediately prior to power shutdown are saved. The unit restarts
with these settings, even following a power interruption. When settings are
modified, however they are only saved after running a test.
Allow 5 minutes warming up after powering on.
The REMOTE CONTROL BOX, external I/O device, RS-232C interface, and
status out function are active only when they are connected prior to startup. If
these devices are connected after the power is turned on, the protective function
ma
y
be activated
,
thus causin
g
a malfunction.
Main power switch
Model name
Software version
"Version 1.00" is displayed.
Main power switch
Output voltage knob
2.4 Powering On and Off the Unit
(1) Powering on the unit
1. Turn the main power switch to ON (
).
2. The model name and version number are displayed as below:
3. When the
READY
lamp is lit (it does not light up in the Double Action
mode), the keys are ready for operation.
(2) Powering off the unit
1.
Following a test, make sure the analog voltmeter is at 0 kV, the DANGER
lamp is OFF, and the
READY
lamp is lit.
2. Turn the voltage adjustment knob counterclockwise until the output
reaches 0 kV. Do not turn OFF the Main Power switch when a voltage is
being output, as the unit may be damaged as a result.
3.
Turn OFF the Main Power switch.
