1.2 Names and Functions of Parts
______________________________________________________________________________________________

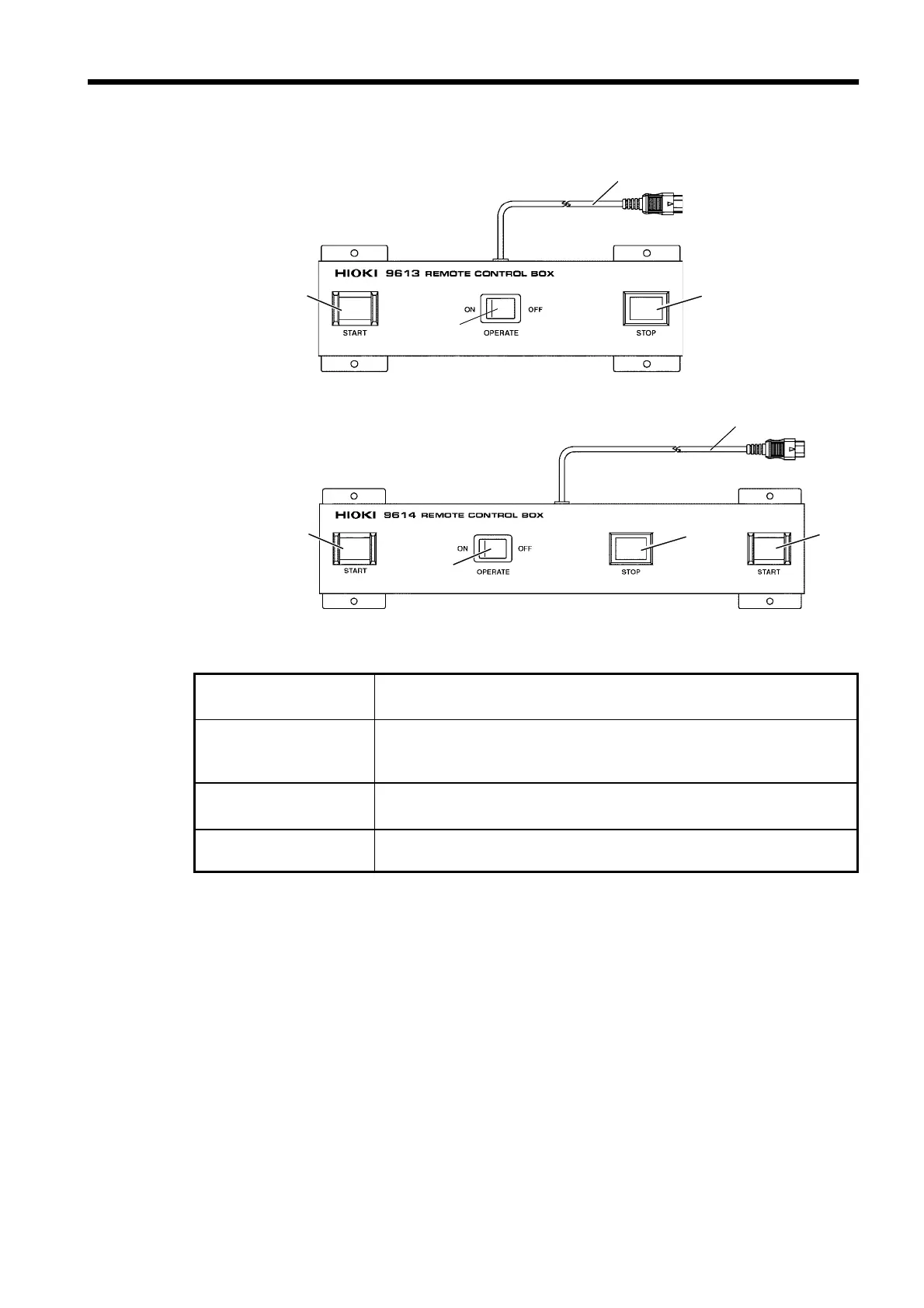

1.2.5 REMOTE CONTROL BOX
9613 REMOTE CONTROL BOX (SINGLE)
1
2
3
2
4
4
3
1
2
9614 REMOTE CONTROL BOX (DUAL)
1 OPERATE switch
Used to enable remote-control operation. When this switch is ON,
the
START
and
STOP
keys for remote control are active.
2 START key
Works in the same manner as the
START
key on the unit. With
the 9614 REMOTE CONTROL BOX (dual-hand), the two
START
switches must be pressed.
3 STOP key
Works in the same manner as the
STOP
key on the unit. The
STOP
key is ON during a test or when a voltage is being output.
4 Switch signal-line
plug
Connect to the external switch terminal on the unit.
