Hioki 3159 - Examples of Settings

55
_____________________________________________________________________________________________
4.3 "SETTING " State
______________________________________________________________________________________________

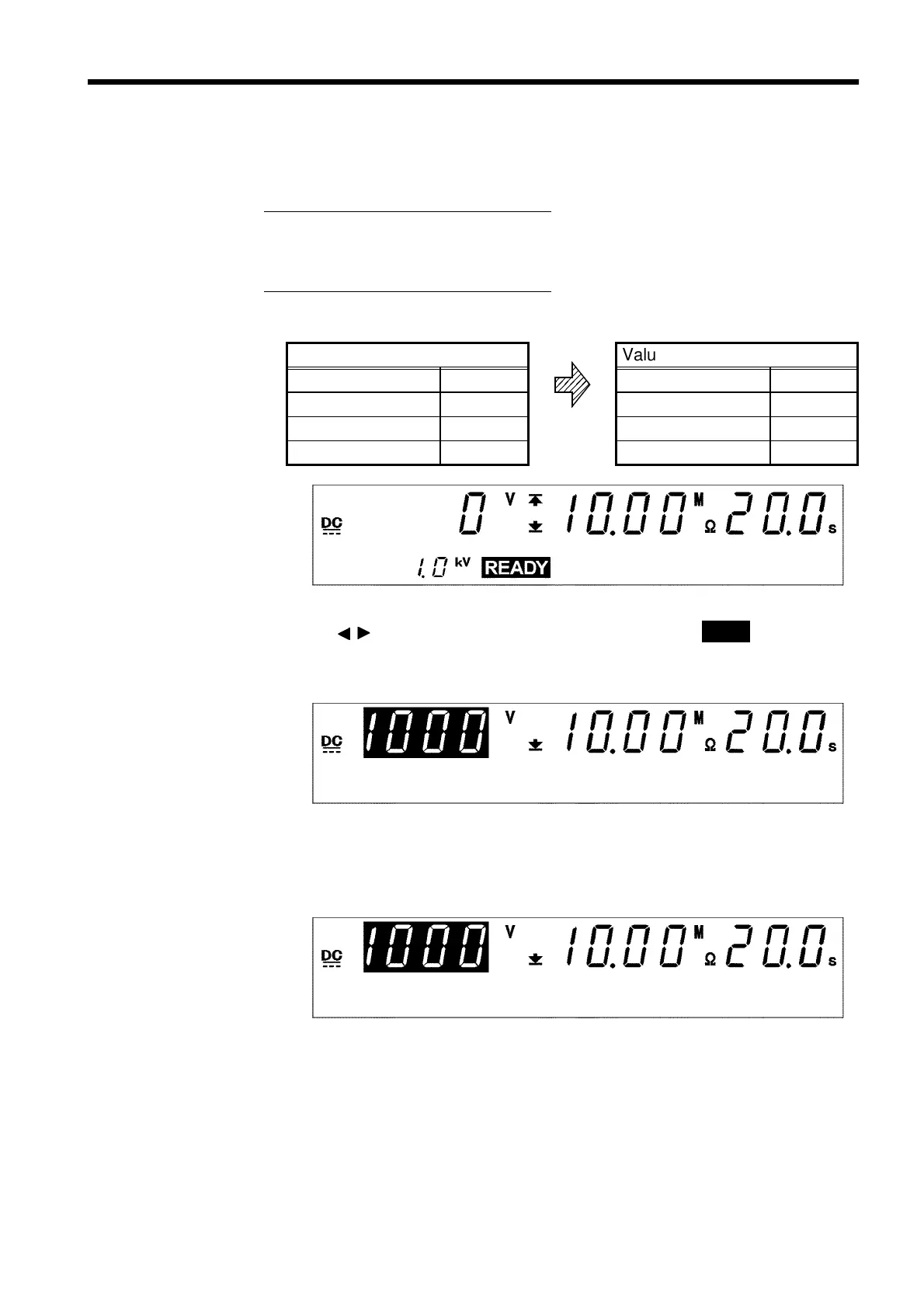

4.3.4 Examples of Settings
Test voltage value: 500 V
Upper limit value: 100 MΩ
Lower limit value: OFF
Test time: 5.0 s
Values currently set


Values to be set
Test voltage value 1000 V Test voltage value 500 V
Lower limit value 10.0 M
Ω
Lower limit value 100 M
Ω
Upper limit value 2000 M
Ω
Upper limit value OFF
Test time 20.0 s Test time 5.0 s
This section describes the procedure for making withstand voltage test
settings under the following conditions.
The 3159 is in the READY state in insulation resistance mode.
(1) Changing to the SETTING state
Press the / keys to switch to the SETTING state. The
READY
light will go
out, and the flashing cursor will be displayed at the position where the
testvoltage value is indicated.
In the READY state, a measured-voltage value is displayed. In the SETTING
state, the display changes to the test-voltage value (in this example, 1000 V).
(2) Setting the test-voltage value
