8.2 Status Out
______________________________________________________________________________________________
WARNING
Do not connect units that require a current of 0.5 A or higher to the
STATUS OUT relay terminal. Doing so may damage the unit.
Maximum input voltage 250 VAC, 30 VDC
Maximum current point 0.5 A
Recommended wire Single standard:
φ
1.2 mm (AWG16)
Multi-standard: 1.25 mm2(AWG16)
Standard diameter: Min.
φ
0.18 mm
Usable limits Single standard:
φ
0.4
to φ
1.2 mm
(AWG26 to 16)
Multi-standard: 0.3 to 1.25 mm
2
(AWG22 to 16),
Standard diameter: Min.
φ
0.18 mm
Standard insulation
stripping length
11 mm

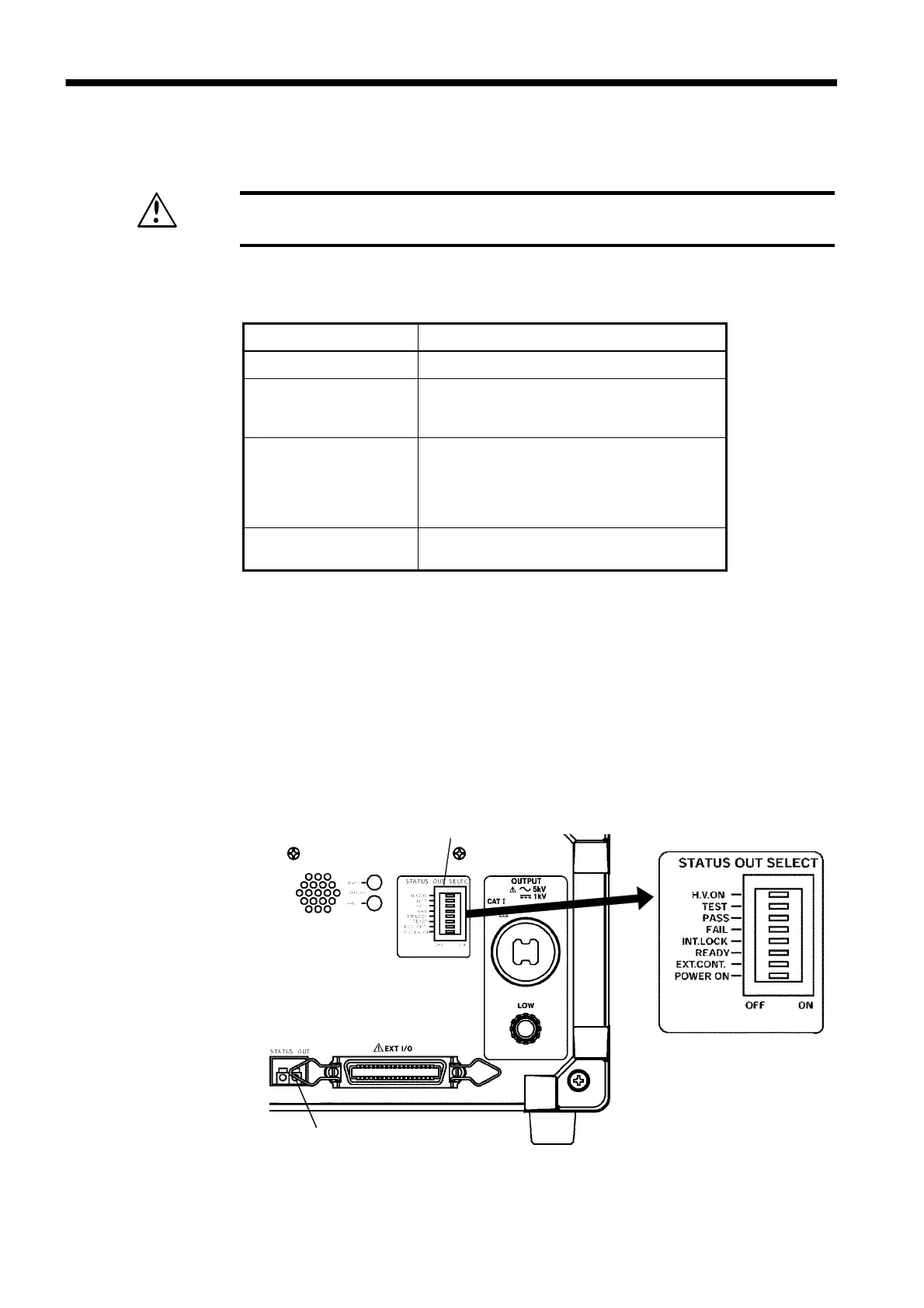

Relay terminal
Dip switch
8.2 Status Out
(1) Relay terminal
(2) Output settings
1. Make sure that the unit is OFF.
2. Make sure that the analog voltmeter reads 0 kV.
3.
Make sure that the desired settings for the STATUS OUT dip switch have
been made. When any one of the settings for the STATUS OUT dip
switch is ON, the relay point for the STATUS OUT terminal is also ON.
