8.2 Status Out
______________________________________________________________________________________________
H.V. ON When a voltage is output. Operates together with the
DANGER
lamp.
TEST Testing in progress. When
TEST
lights up or flashes.
PASS In the PASS state. When
PASS
lights up.
FAIL In the FAIL state. When
FAIL
lights up.
INT.LOCK In the INTERLOCK state.
READY In the READY state. When
READY
lights up.
EXT.CONT. When controlled externally. When controlled with the
external I/O, REMOTE CONTROL BOX, or RS-232C
interface.
(When "
EXT
" lights up on the display screen.)
POWER-ON When the unit is ON.

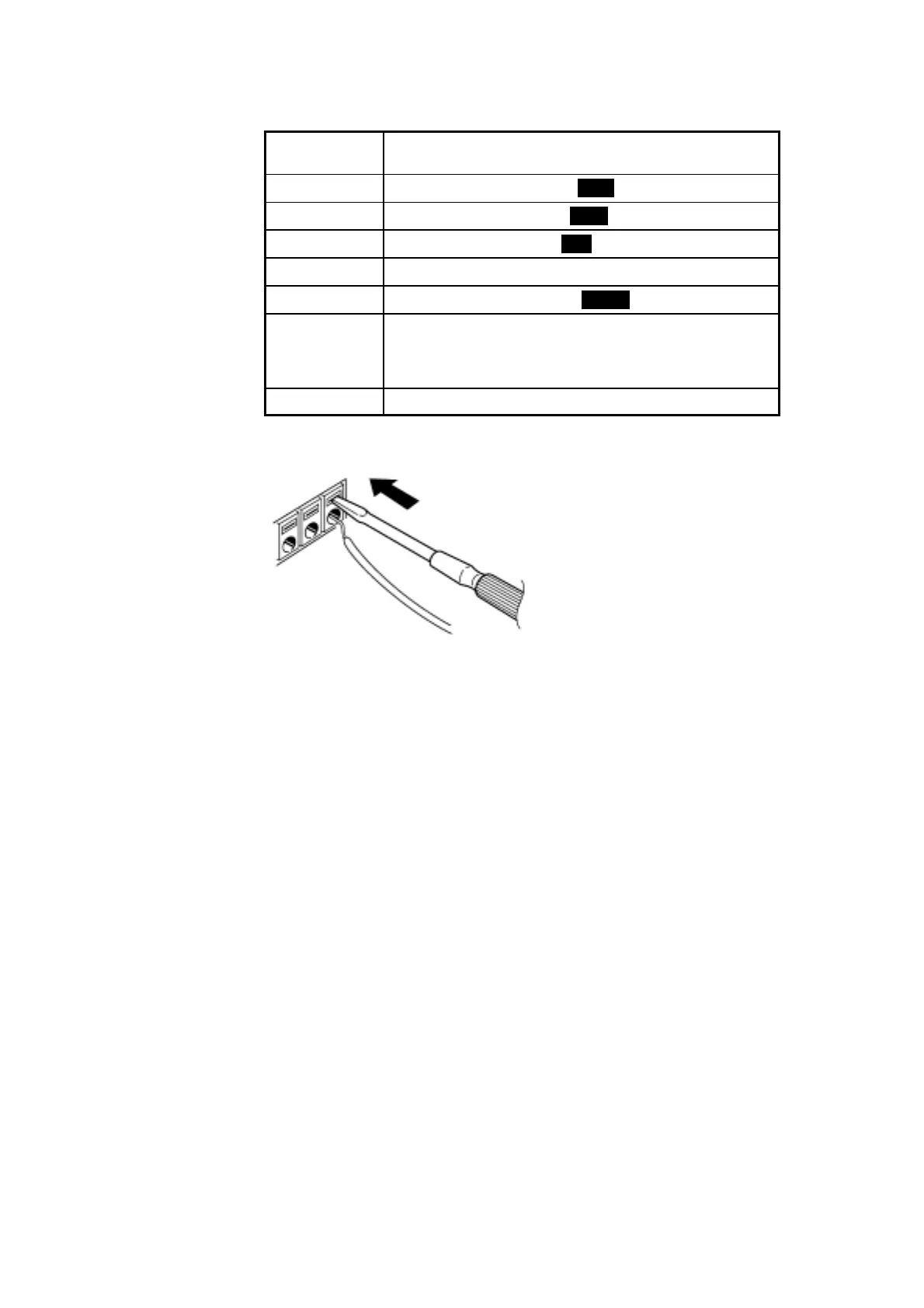

(3) Output settings that can be set with the STATUS OUT DIP switch
(4) Connection method
1.
Push the tab with a flatblade
screwdriver or similar.
2.
While keeping the tab depressed, insert
a stripped wire into the connector
opening.
3. Release the tab to lock the wire.
