7.2 Loading Preset Values
______________________________________________________________________________________________
7.2.2 Example of Loading
Comparative voltage value: 4.5 kV
Upper limit value: 40 mA
Lower limit value: 3 mA
Test time: 10.0 s
Output voltage range: 5.0 kV

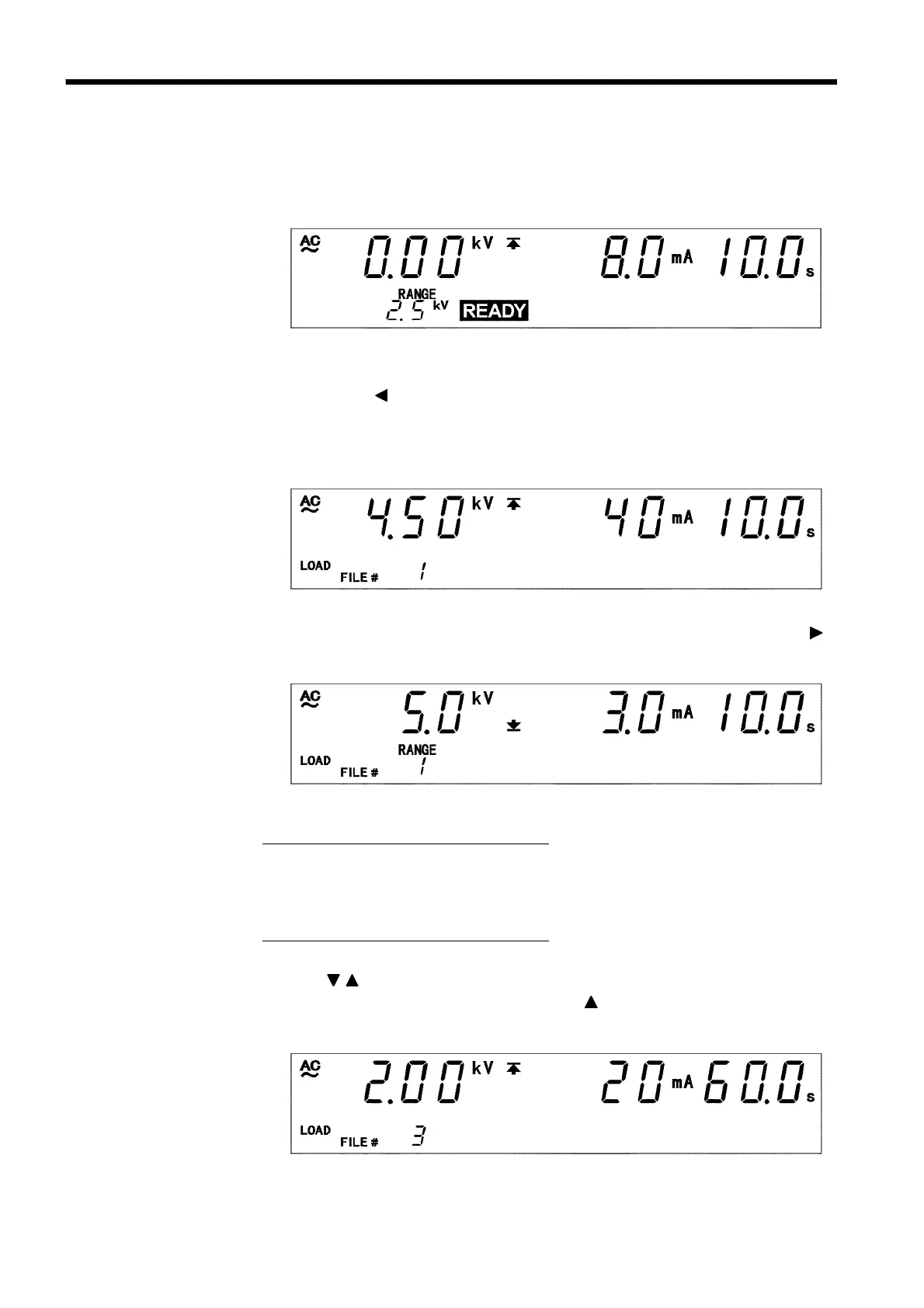

The following example shows how to load File No.3. The 3159 is in the
withstand voltage mode READY state.
1. Press
SHIFT + keys to bring up the load screen.
In the load screen, the value set in the READY state is replaced by the
saved data being displayed. The first saved data displayed is the last data
item from the previous load screen. This example shows "File No.1."
In this status, the preset lower limit valve can be checked by using the
keys.
In this example, File No. 1 contains the following settings.
2. Use the
/ keys to select File No.3.
This example shows File No. 1. Press the key twice to display File
No.3.
