7.2 Loading Preset Values
______________________________________________________________________________________________

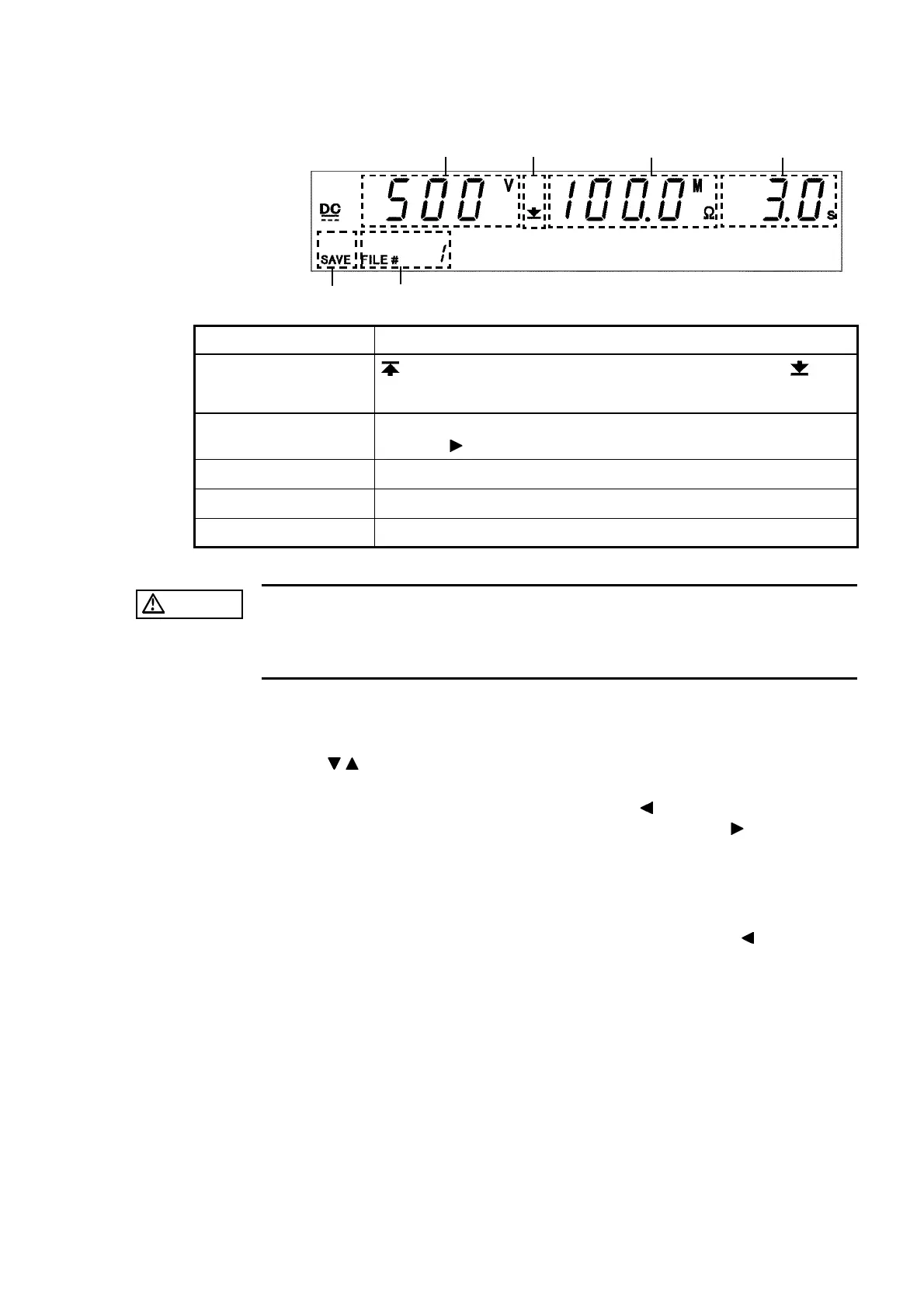

1 2 3 4
5 6
1 Test voltage value
The test voltage value for saved data.
2 Upper limit value
icon and Lower limit
value icon
is displayed when the upper-limit value is shown, and is
displayed when the lower-limit value is shown.
3 Upper and Lower
limit values
The upper- or lower-limit value of saved data. Switch the display
using the
key.
4 Test time
The test time for the saved data.
5 LOAD
Indicates a loaded screen.
6 File number
Indicates the file number for the saved data.
CAUTION
The output-voltage nearly doubles when the output-voltage range is changed
from 2.5 kV to 5.0 kV. To avoid damaging the unit, after changing the range,
make sure that you adjust the output-voltage using the voltage adjustment
knob.
Insulation resistance mode
(3) Selecting a file to load
Use the / keys to change the file number and confirm the saved data that
you want to load.
On the withstand voltage mode Load screen, the key switches between the
comparative-voltage value and output-voltage value, and the key switches
between the upper- and lower-limit values.
(4) Loading and canceling data
When the saved data to be loaded is displayed, press SHIFT + keys. This
loads the saved data and the unit reverts to the READY state.
Press the STOP key to revert to the READY state without loading the target
data.
