33
_____________________________________________________________________________________________
3.4 Starting a Test
______________________________________________________________________________________________
3.4.1 Setting the Output Voltage
DANGER
Observe the following precautions to avoid electric shock.
Make sure that no high voltage is being applied to the output, confirm
the following items, and output voltage.
(1) The analog voltmeter reads 0 kV.
(2) The
DANGER
lamp is OFF.
(3) The
READY
lamp is lit (it is off in the Double Action mode).
A voltage is output during output-voltage setting using the
outputvoltage adjustment knob. Never touch the HIGH terminal, H.V.
TEST LEAD, or tested object.
Before starting a test, make output voltage settings using the output-voltage
knob.
1.
In accordance with the instructions given in Section 2.8, connect the
probe to the tested object.
2.
Make sure the analog voltmeter is at 0 kV, the DANGER lamp is OFF, and
the unit is in the READY state.
3.
Press the START key.
TEST
will light up and a voltage will be output.

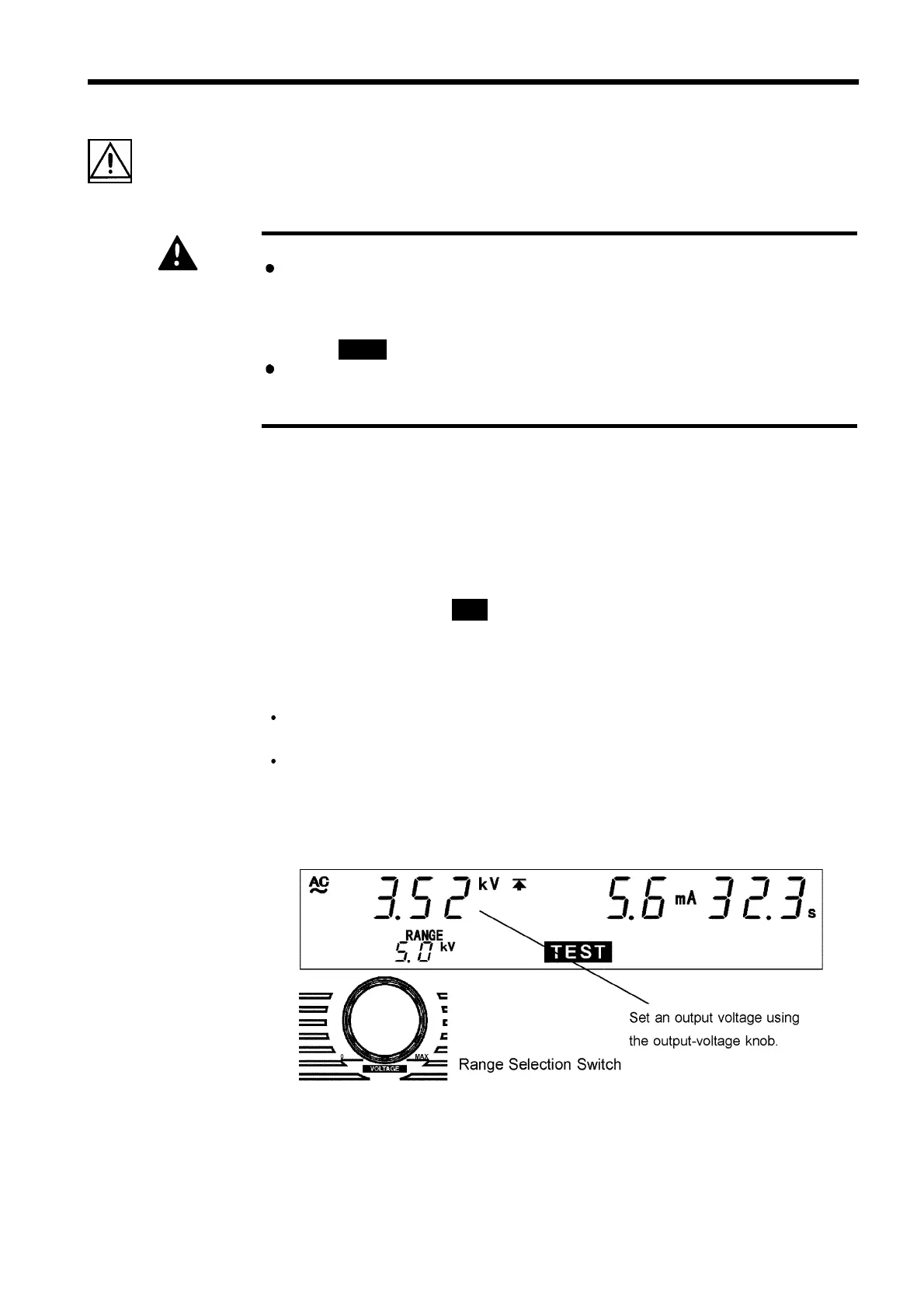

4. Set an output voltage using the output-voltage knob. The output-voltage
knob increases the output voltage when turned clockwise, and decreases
the voltage when turned counterclockwise.
The maximum value is 2.5 kV or 5.0 kV, depending on the output-voltage
range set in step 3.3.
The output voltage is displayed on the analog voltmeter and the
fluorescent indicator.
5. Press the
STOP key to stop the output.
