Hioki 3159 - Page 59

47
_____________________________________________________________________________________________

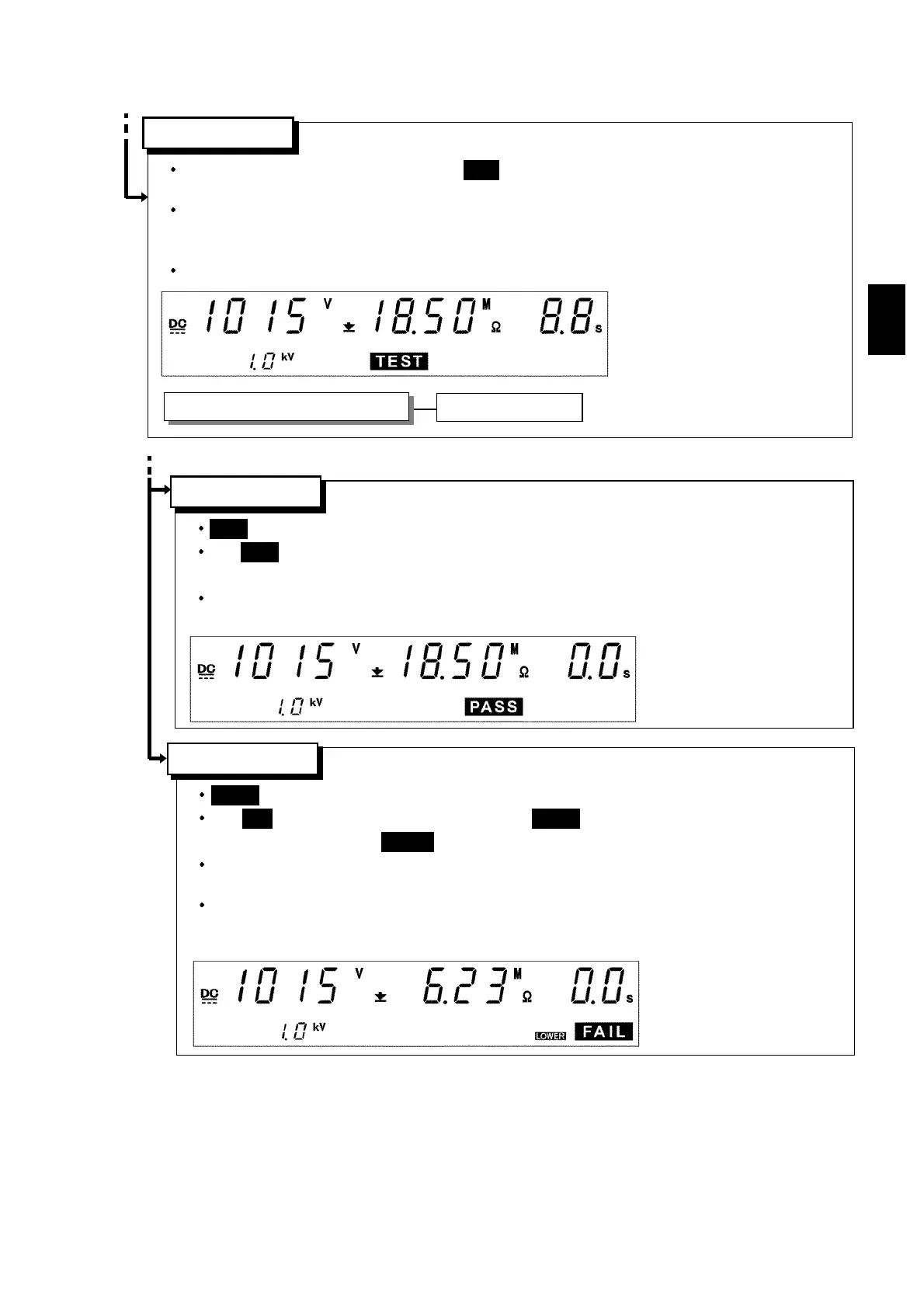

4.1 Insulation Resistance Mode Display
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
1
0
11
1
2
1
3
1
4
A
Key operation in the TEST status
When the unit is in the TEST state, the
TEST
lamp is lit. This indicates that a test is in
progress.
Compares the upper- and lower-limit measured resistance values. If the measured resistance
value deviates from either of these values once the test time has elapsed, the unit shifts to the
FAIL state. If the value does not deviate, the unit shifts to the PASS state.
Press the
STOP
key to forcibly terminate the test.
Forced ending
PASS
indicates that the measured object passed the test set in the READY state.
The
PASS
lamp is turned on. The PASS state screen is displayed for about 0.3 second
before switching to the READY state.
The PASS state can be maintained if the PASS Hold function is disabled in the optional
settings. (See Section 6.1)
READY
indicates that the tested object failed to pass the test set in the READY state.
The
FAIL
lamp will light up, accompanied by
UPPER
if the measured value exceeds the
upper-limit value, or by
LOWER
if the measured value is below the lower-limit value.
The FAIL state can be maintained. To return to the READY state, press the
STOP
key,
which will cancel the FAIL Hold function.
FAIL Hold function can be disabled in the optional settings. The FAIL-state screen is
displayed for 0.3 seconds, and the unit then switches to the READY state. (See Section
6.2)
Press the
STOP
key.
See Section 4.4.2
See Section 4.5.1
See Section 4.5.3
｢READY 状態｣
TEST
state
｢READY 状態｣
PASS
state
｢READY 状態｣
FAIL
state
START
key
