Conguring and Establishing a LAN Connection

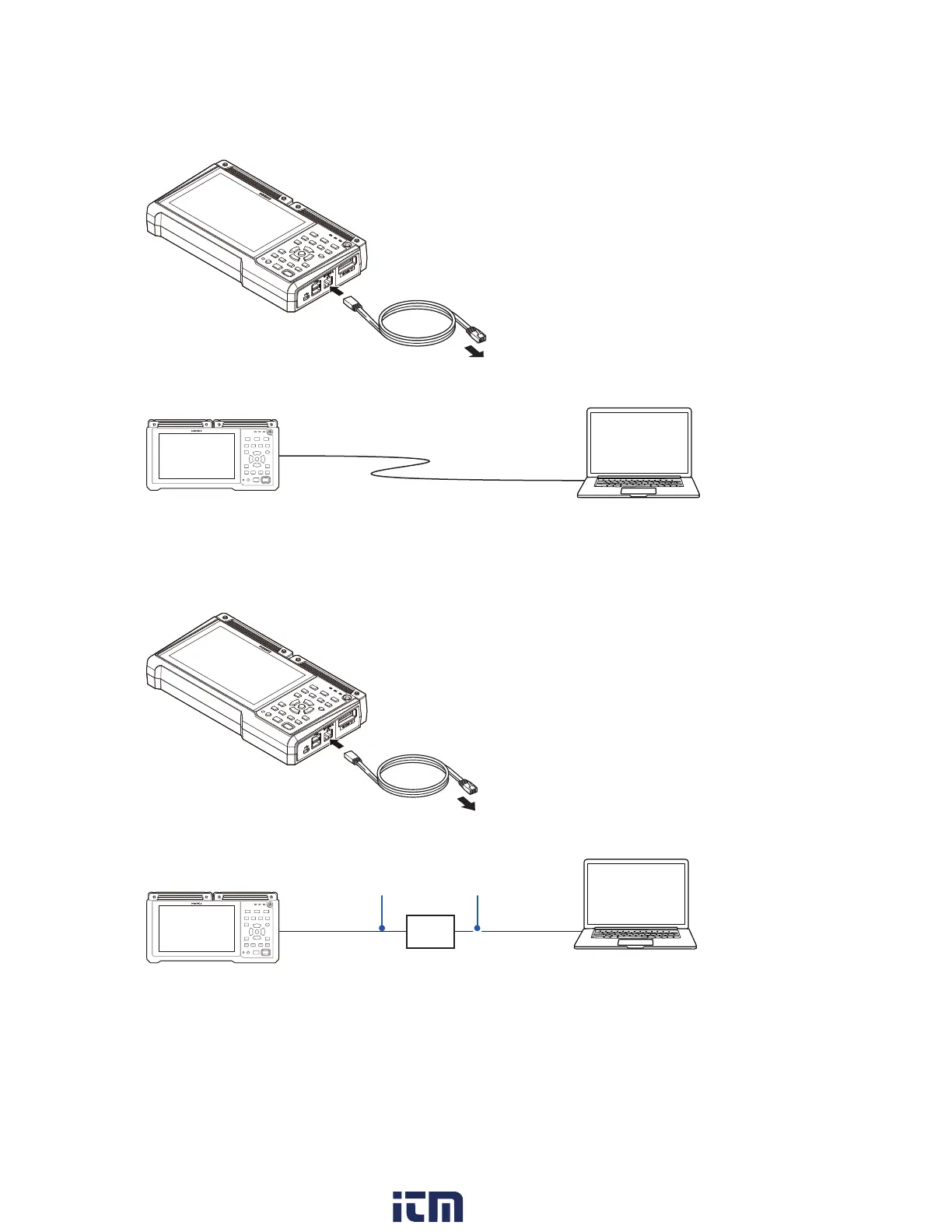

Connecting the instrument to a single computer
You will need: 9642 LAN Cable (×1)
2
To computer
1
9642 LAN Cable
1
Connect the 9642 LAN Cable
to the LAN connector on the
instrument.
2
Connect the other end of the
cable to the computer’s LAN
connector.
9642 LAN Cable
Connecting multiple instruments to a computer via a hub
You will need: 9642 LAN Cable (×2), hub
1
2
9642 LAN Cable
To hub
1
Connect the 9642 LAN Cable
to the LAN connector on the
instrument.
2
Connect the other end of the
cable to one of the hub’s LAN
connectors.
9642 LAN Cable
Hub
HIOKI LR8450A964-03
