Hioki LR8450 - Page 73

68
Conguring Channels in a List
3
(U8552, LR8532)
• Press the ENTER key while [16-30>] is selected to display CH16 to CH30.
• Press the ENTER key while [1-15>] is selected to display CH1 to CH15.
4

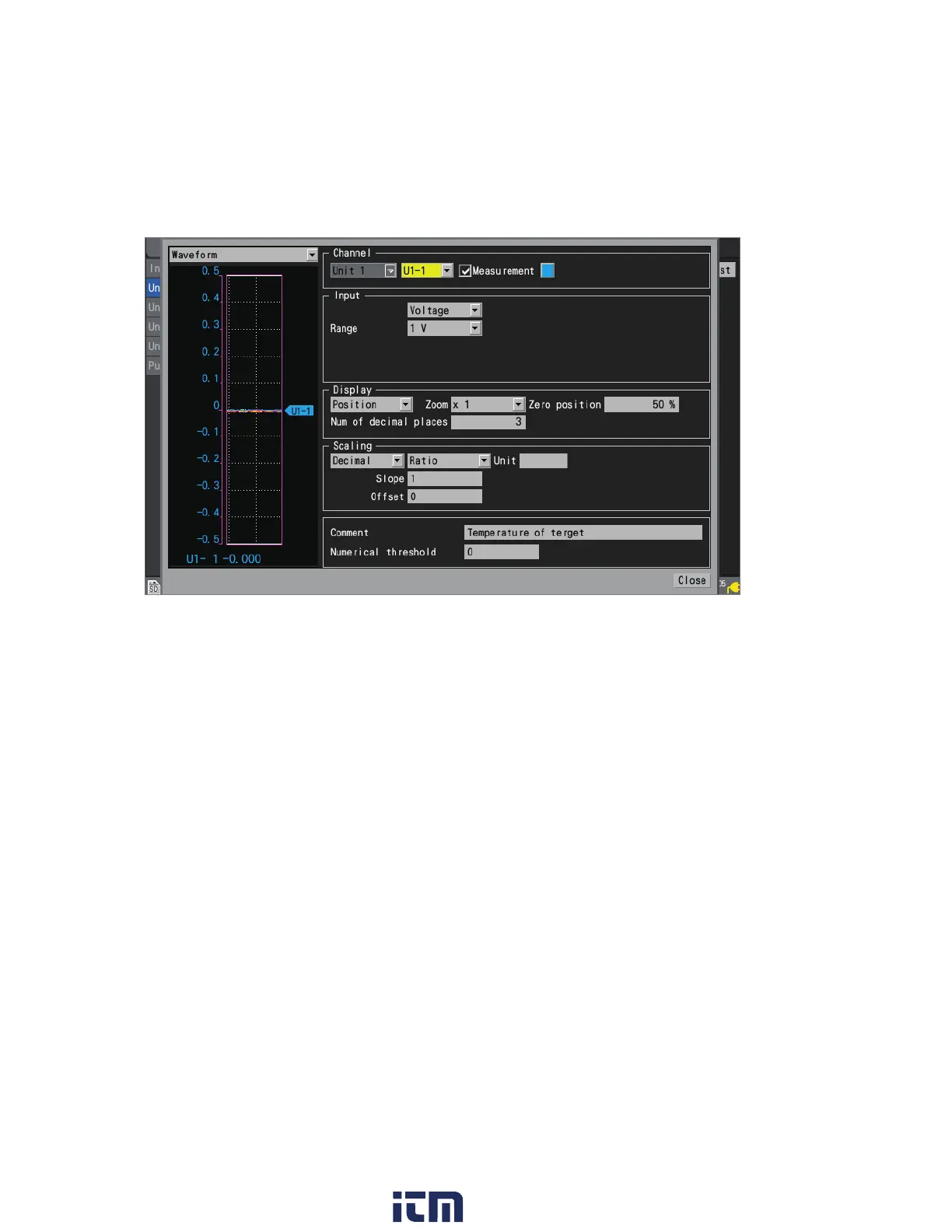

Select a channel number and press the ENTER key.
The individual settings window will open, allowing you to congure the settings.
Press the ESC key to close the window.
See “1.4 Conguring Input Channels” (p. 25).
HIOKI LR8450A964-03
