69
Conguring Channels in a List

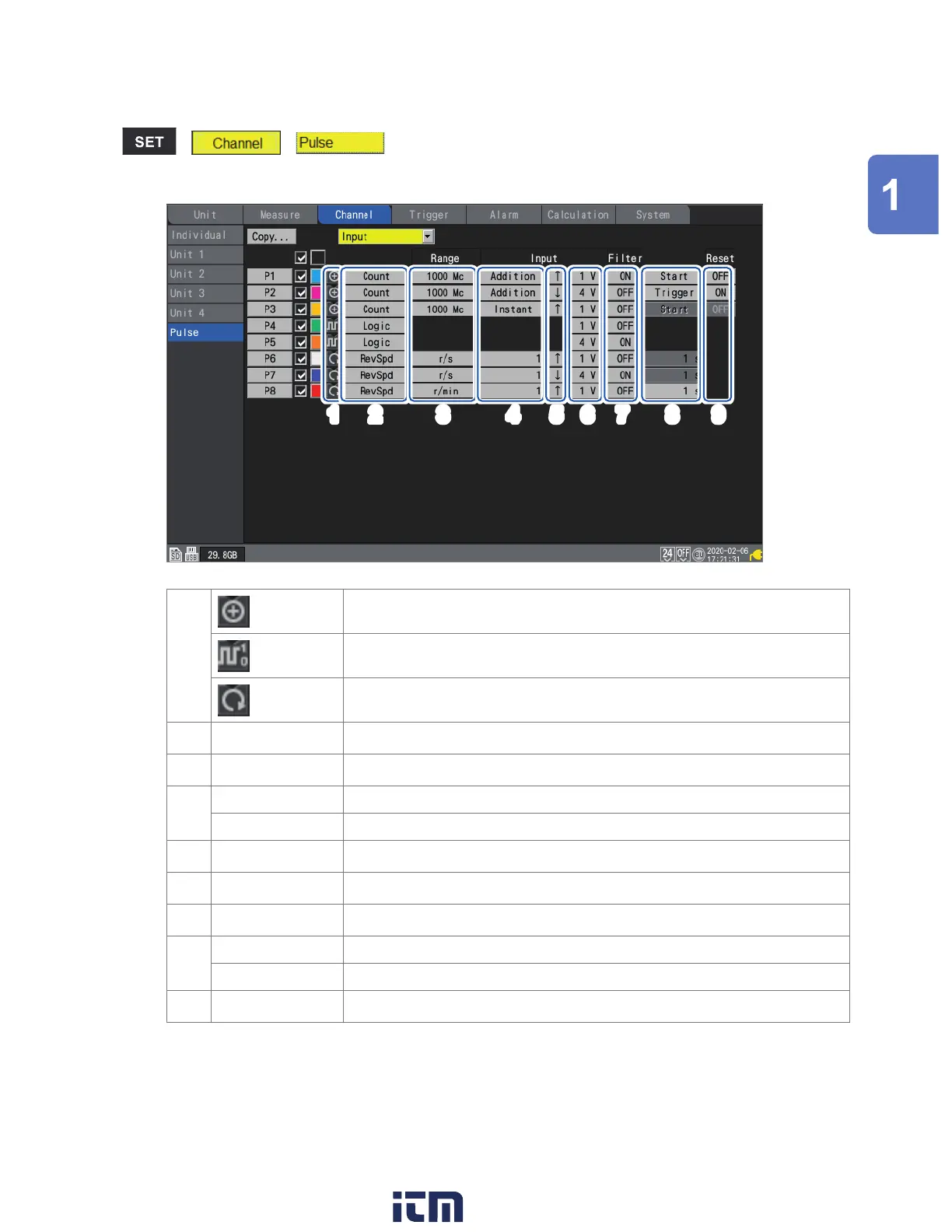

Pulse settings list screen
> >
Settings list screen: [Input]
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
1
1
Input type: Integration
Input type: Logic
Input type: Rotational speed
2
2
Input type Input type
3
3
Range When the input type is [RevSpd]: Count reference time
4
4
Integration mode When the input type is [Count]: Integration method
Pulse count When the input type is [RevSpd]: Number of pulses per revolution
5
5
Slope Slope at which to count
6
6
Threshold value Level at which to count
7
7
Filter Chatter prevention lter
8
8
Timing When the input type is [Count]: Timing at which to start counting
Smoothing When the input type is [RevSpd]: Processing period for smoothing
9
9
Reset Operation to perform when the integrated value overows
Settings and Operation
HIOKI LR8450A964-03
