151430-L8 IDP and SD SLC Device Installation
7-6
7.5 Wiring IDP SLC Detectors
This section describes how to install IDP heat and smoke detectors. All detectors ship with installation
instructions. Refer to each detector’s installation instructions for more detailed information.
To wire IDP detectors:
1. Wire device bases as shown in Figure 7-4.
2. Set the address for each device as described in Section 7.6.

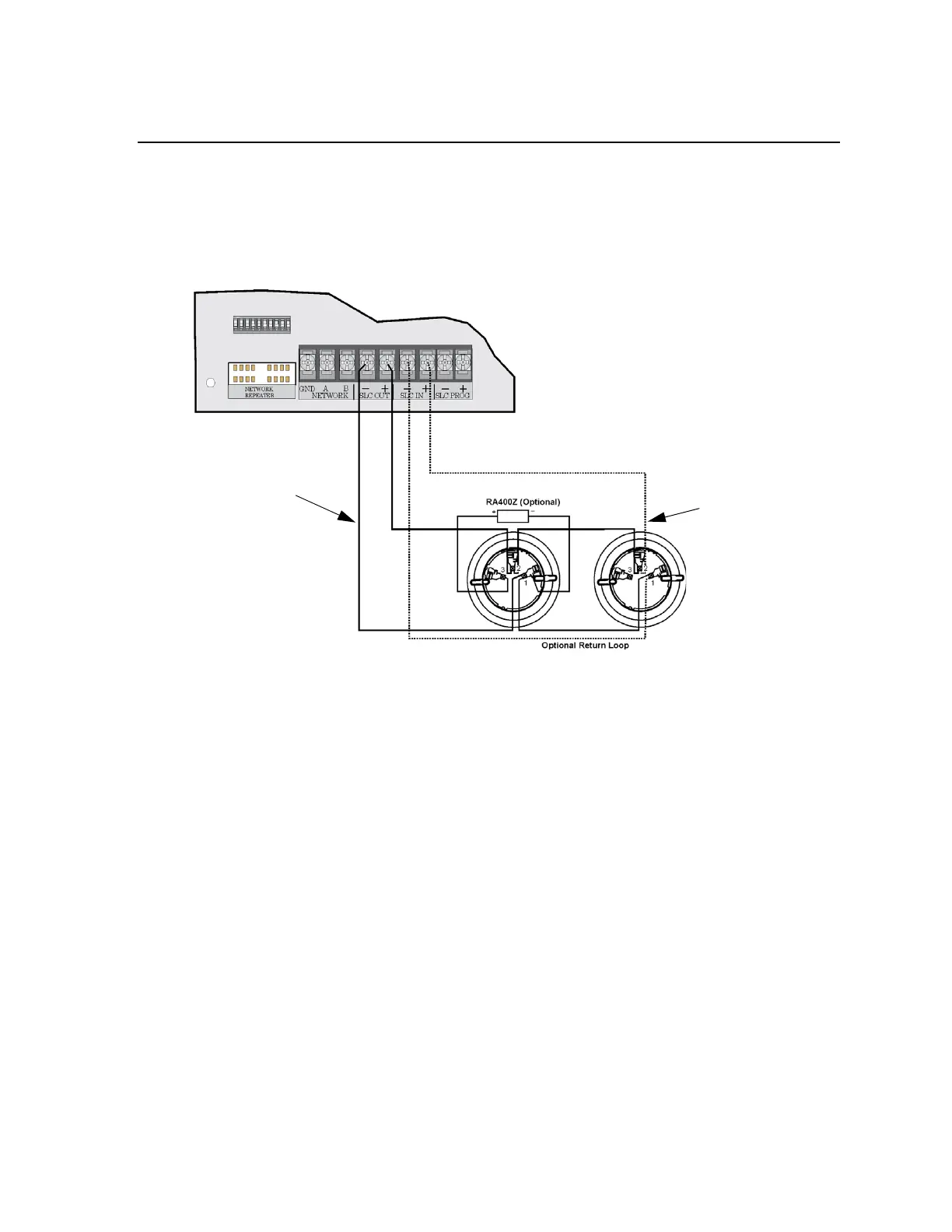

Figure 7-4 Heat and Smoke Detector Connection to the Panel.
Caution: Do not loop wire under Terminal 1 or 2.
Break wire run to provide supervision of connections.
Class A wiring
Class B wiring
To Next Page
