Model IFP-2000/ECS Installation Manual 151430-L8
8-13
8.3.4 Mapping LED Points
Figure 8-10 is a simple example showing how LED points are mapped to zones and output groups. Typically you
would create two output groups for each zone, one for alarms and one for troubles. (LED points are available
when models 5865-3/4 and/or 5880 are used with the system).

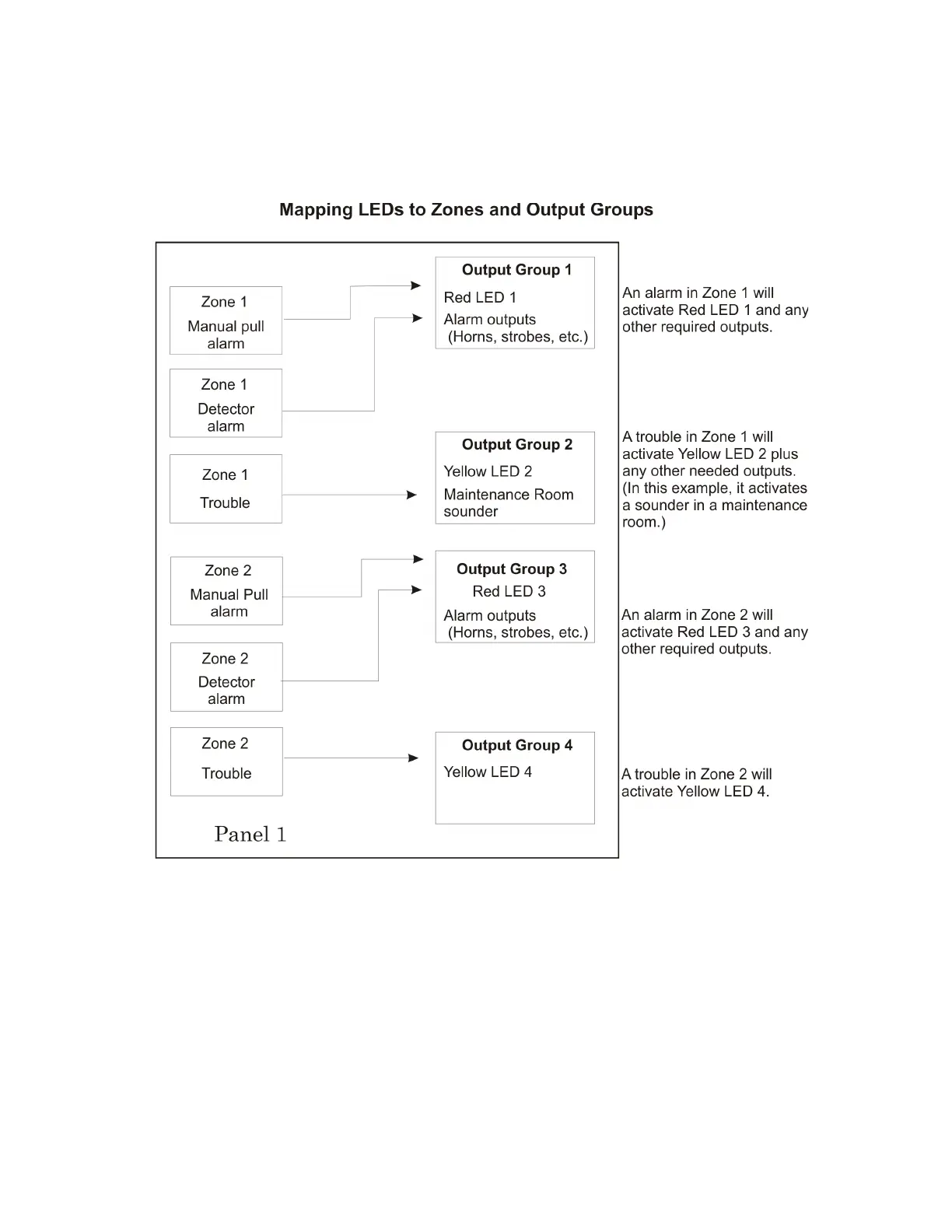

Figure 8-10 Example of LED Points Mapped to Output Groups
(Applies to Models 5865-3/4 and 5880)
