When in the record mode, the ECS-VCM keys will function as follows:
While in the Local Record mode, Select Keys 1-15 will be used to reference message slots 1-15. The associated
green Select Key LED will indicate that a message is currently programmed in the corresponding slot. When
there is no message recorded (or the message is erased), the associated green Select Key LED will be off. While
recording a particular message, the associated red Select Key LED will turn on until recording is completed. The
Select Key 1-15 will be used to playback a recorded message or to select the message slot to record to or erase.
When in the Local Record mode, the ECS-VCM LEDs will function as follows:
11.8.1 Recording Messages 1-15 Using Aux Audio Input
Recording messages from the Aux Audio Input enables you to load customized, pre-recorded messages into an
ECS message location.
Table 11-1: LED Functions During Programming
LED LED State Meaning
Select Key 1-15 Green LED On Message is currently programmed in this slot
Select Key 1-15 Red LED On Message recording is in progress
Select Key 1-15 Green/Red LED Off/Off Message slot is empty
Select Key 1-15 Red LED Flashing Message is being played back or message is selected
for recording
Key Function
ECS Message Key 1 Select message slot to record to.
ECS Message Key 3
Start and stop recording from Aux.
Audio Input
ECS Message Key 8 Erase user message 1-15
Select Keys 1-15 Message slot 1-15

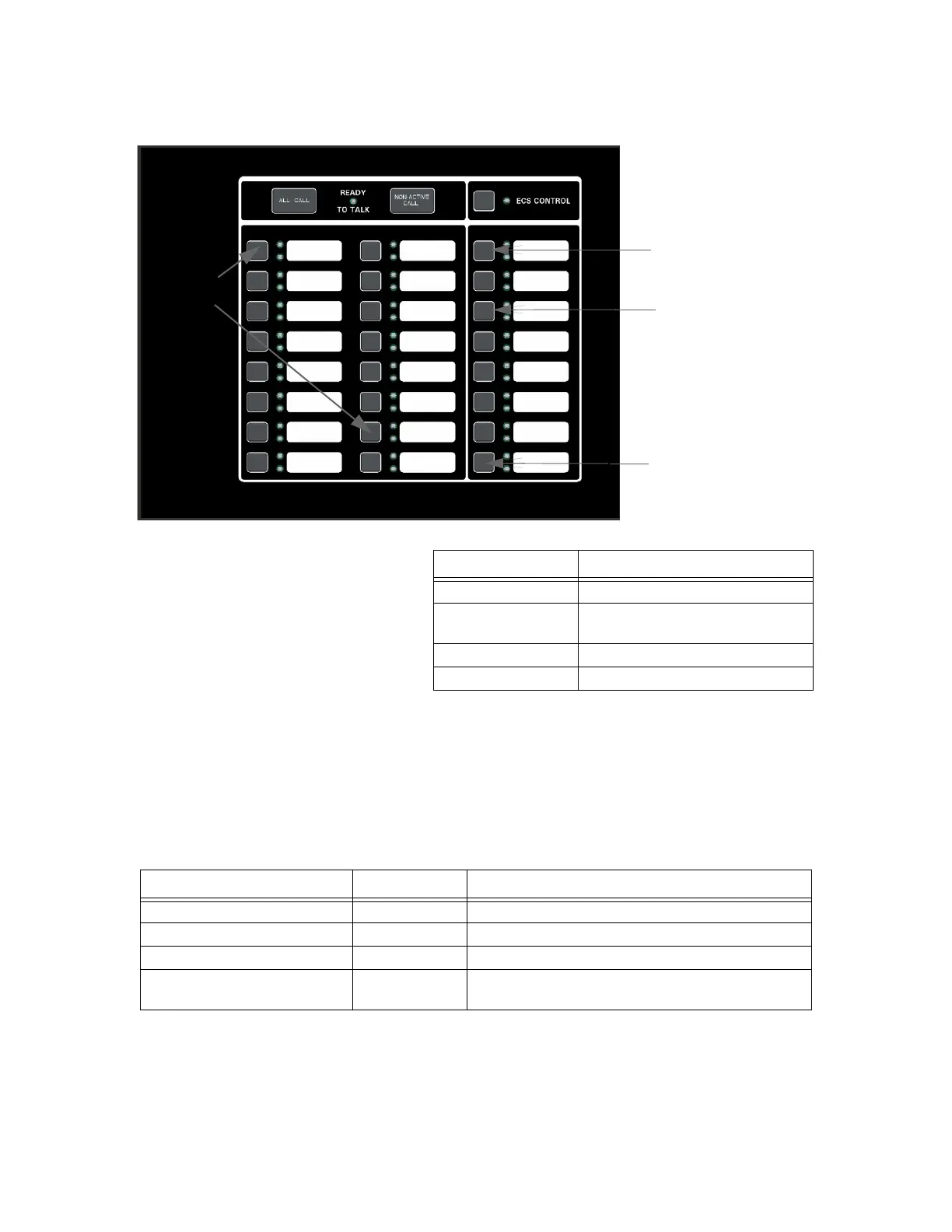

ECS Message Key 1
ECS Message Key 3
ECS Message Key 8
Select Keys
1-15
To Next Page
