4.2 AC Connection
At installation, connect the AC terminals to the power source as shown in Figure 4-1 or Figure 4-2. It may be
necessary for a professional electrician to make this connection.
The AC terminals are rated at 120 VAC, 50 or 60 Hz, 5A (for the IFP-2000) or 240 VAC 50 or 60 Hz, 2.5A (for
the IFP-2000HV).

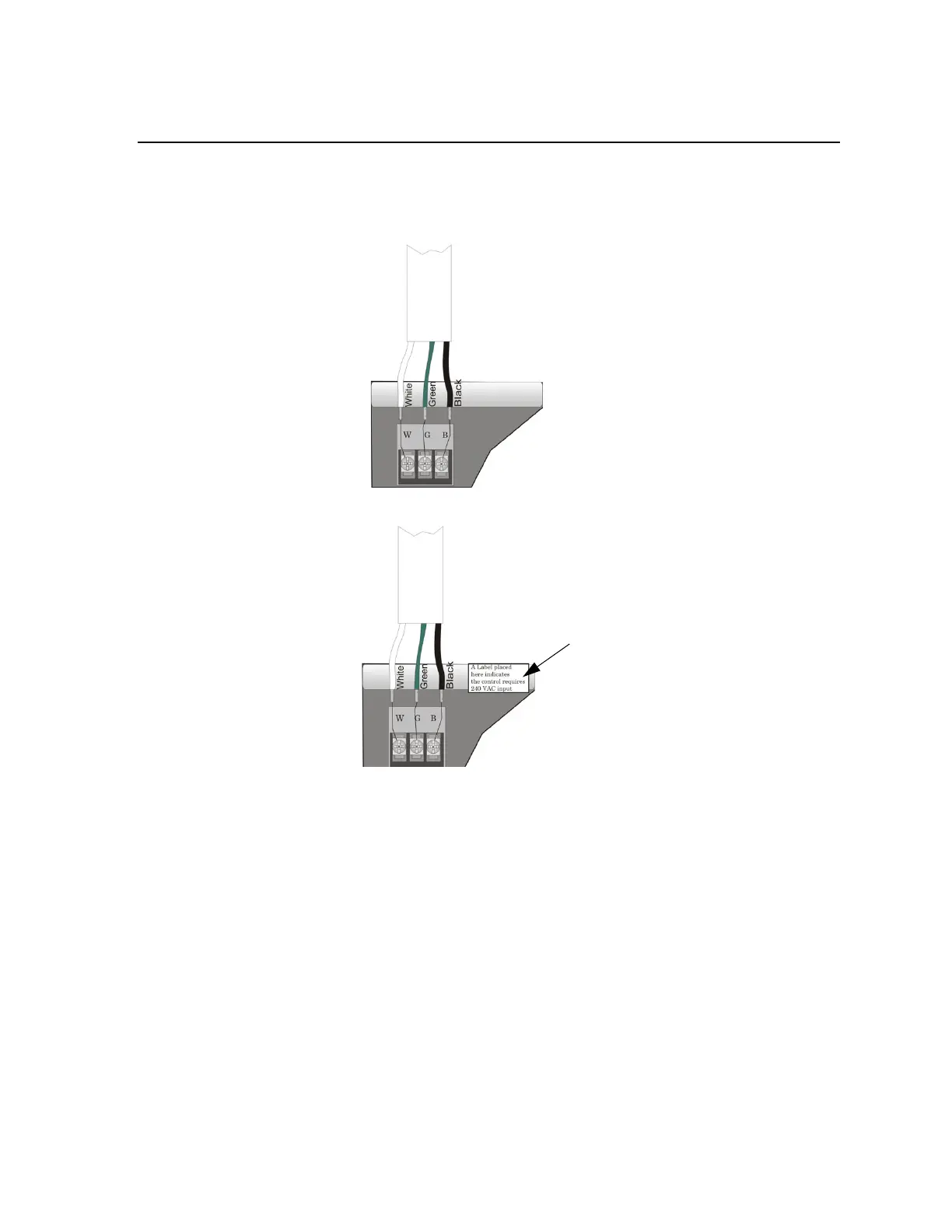

Figure 4-1 120 VAC Power Connection for the IFP-2000
Figure 4-2 240 VAC Power Connection for the IFP-2000/ECSHV
240 VAC models
are labeled here
