9.4.1.1 Edit Group Name
6. To edit the group name, press 1.
You can use words to display a descriptive name for a group.
Note: See Appendix B for editing names.
9.4.1.2 Edit Group Properties
7. To edit the group properties, Press 2 from the edit group menu.
The Edit Group Menu allows you to select options for each group for the following items:
• Define output group type as voice or non-voice group. Select Y for voice group and N for non-voice group.
• Select / Dynamic Activation switch number: used when the group is defined as a voice group; or as a non-
voice group where Dynamic Activation is used.
• Template Override: Y or N.
• Allow Sys Override: Y of N.
• Dynamic Activation / Template Override Cadence. (This is shown when the Template override is set to Yes).

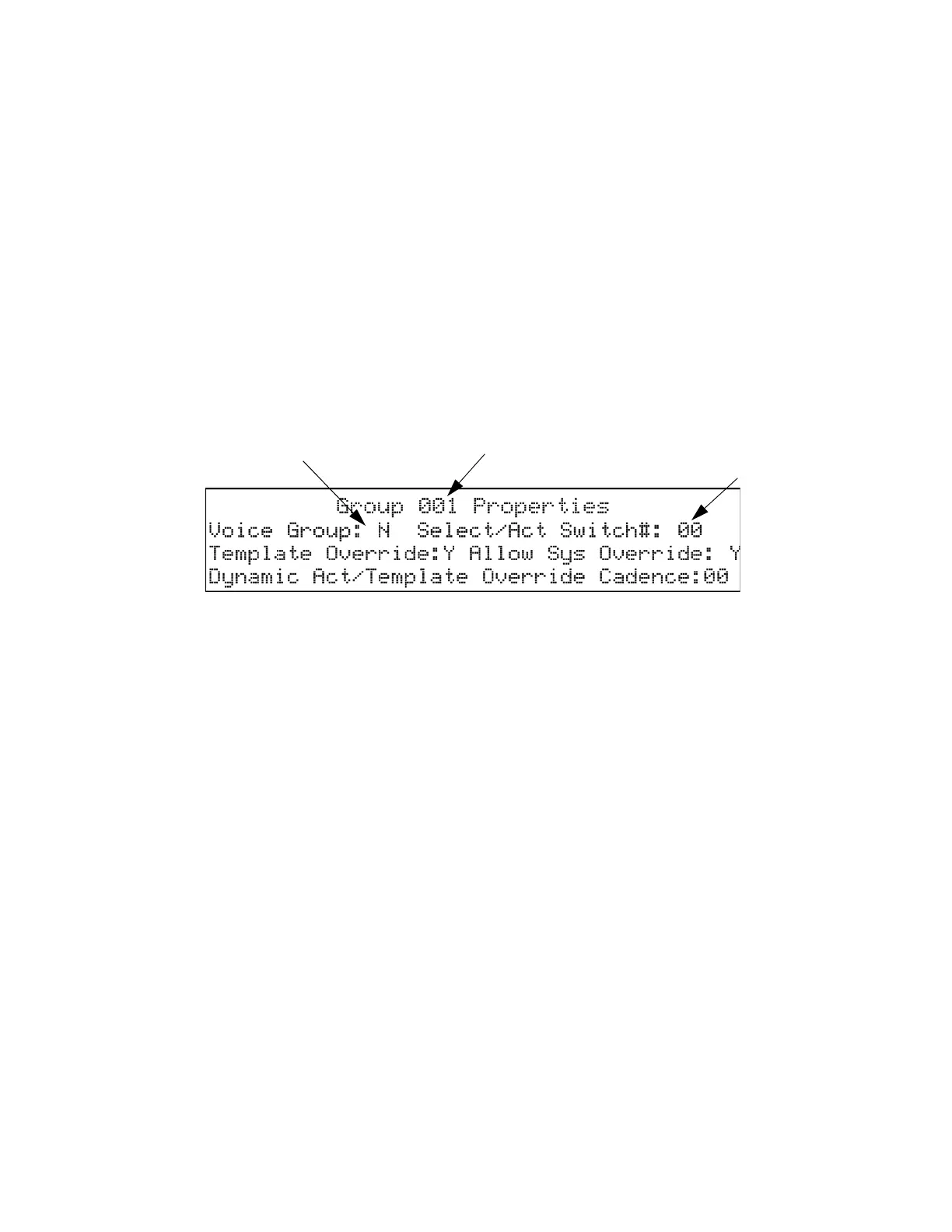

Figure 9-3 Group Properties Screen Programming Options
Defining Output Group Type
Each output group is defined as either a voice output group or a non-voice output group. Output points that are
audio circuits (all circuits on the ECS-50W, ECS-125W, ECS-INT50W, ECS-DUAL50W and ECS-CE4) can
only be assigned to voice output groups. Output points that are non-voice circuits (all other points and circuits
that are on all modules except the ECS-DUAL50W, ECS-50W, ECS-125W, ECS-INT50W and ECS-CE4) are
assigned to non-voice output groups.
Each of the output groups defined as voice can be mapped to a particular switch and LED on the ECS-VCM,
ECS-RVM or ECS-SW24. This allows the user to see the state of the voice groups assigned to the switches. This
also lets the user individually select which areas they want to do a live page.
Output groups not defined as voice groups can also be assigned to these switches as long as there is a voice group
already assigned to the switch. This allows for dynamically activating both voice and strobes/other outputs in an
“Switch# only applies
if the group is a
voice group.”
Voice EVAC
Only
Group #
