Model IFP-2000/ECS Installation Manual 151430-L8
5-3
5.4 Repeater Wiring Options
Networking a group of IFP-2000 and/or RPS-2000 at a distance greater than 20 feet requires the use of a network
repeater with each panel. Repeaters are used to travel long distances and/or between buildings. Figure on
page 3Figure 5-3 on page 3 shows the repeater wiring connection for style 4, class B as a solid line. For style 7,
class A the dotted line would be used in addition to the solid lines.

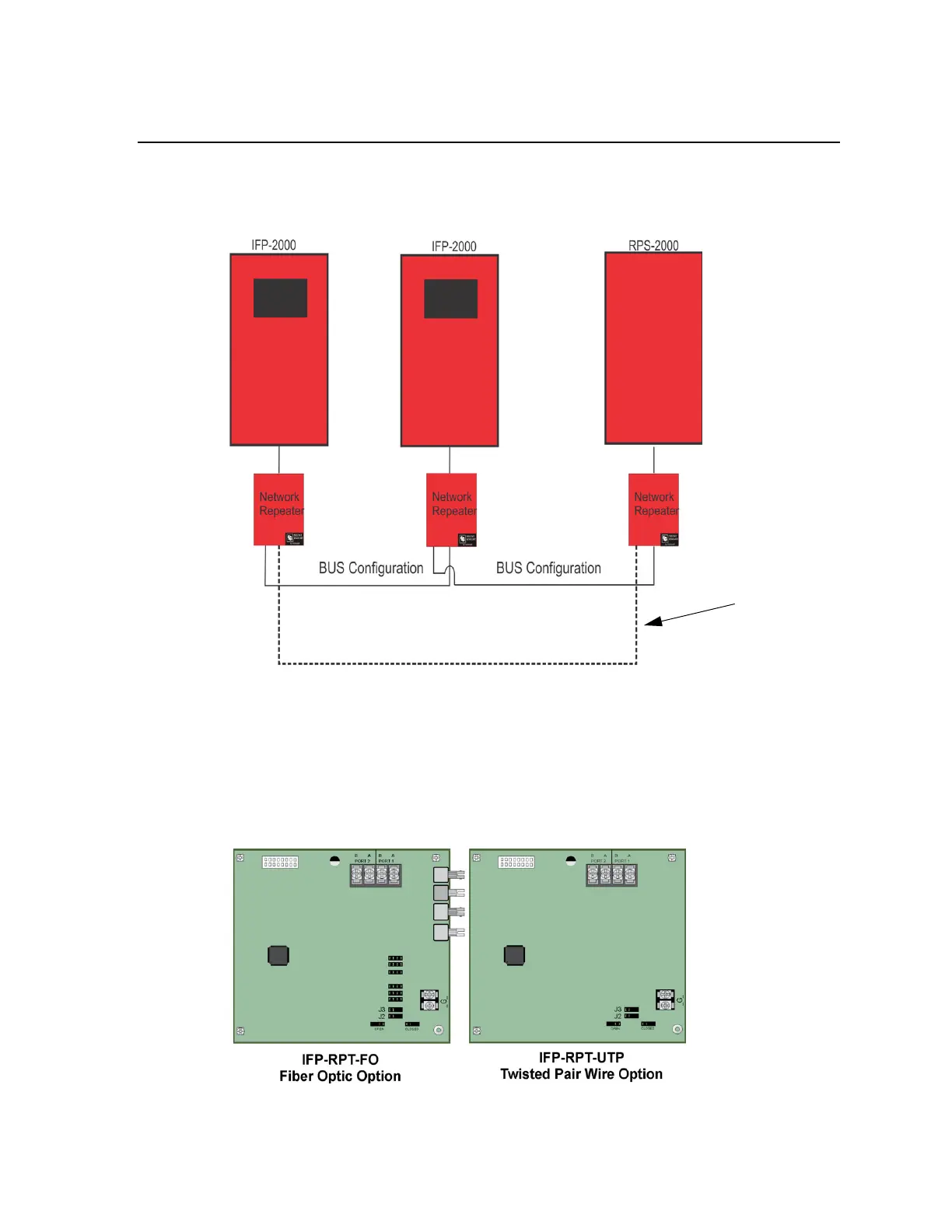

Figure 5-3 Repeater Networking Connections
5.4.1 Network Repeater Types
Network repeaters are available in two configurations. See Figure 5-4 on page 3.
1. P/N IFP-RPT-UTP is used for twisted pair copper wiring up to 3000 ft. between panels.
2. P/N IFP-RPT-FO is used for fiber optic cable or twisted pair wiring between panels.
Figure 5-4 Types of Network Repeaters
Class A
wiring
