Model IFP-2000/ECS Installation Manual 151430-L8
4-21
4.9.2 5865 Mounting
Mount the 5865-4 to a standard 4-gang electrical box. Mount the 5865-3 to a standard 3-gang electrical box. In
Figure 4-28, the 5865-4 attached to a 4-gang box is used as an example.

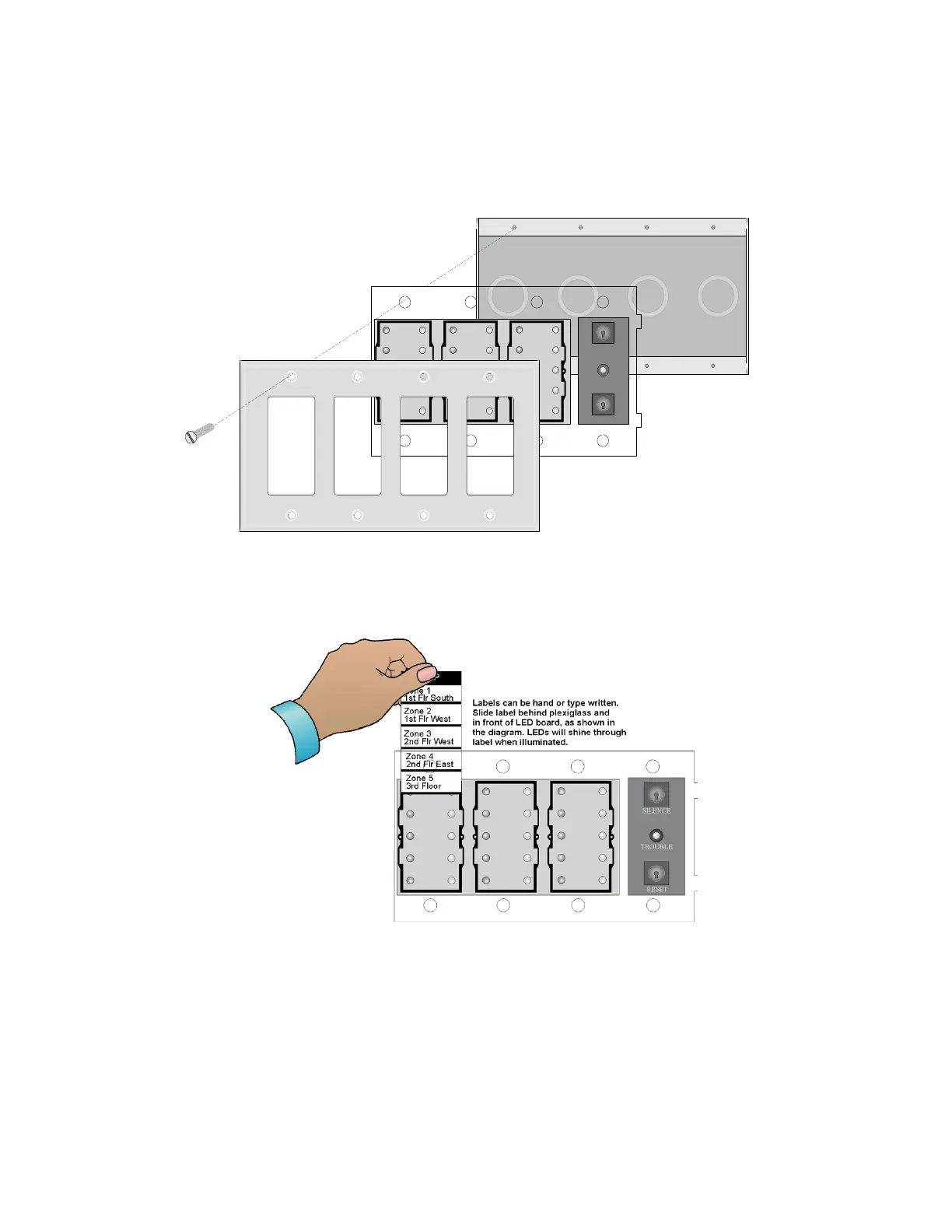

Figure 4-28 5865 Mounting Example
The 5865 ships with a set of zone description labels that can be inserted into the 5865 board assembly. These
labels can be used in a typewriter or can be written on by hand. Slide the labels under the plexiglass as shown in
Figure 4-29. The LEDs will show through the label when illuminated.
Figure 4-29 Inserting Zone Description Labels
Attach 5865 to a
standard 3- or 4-gang
electrical box.
4-gang electrical box. Use with 5865-4.
(Use 3-gang box with 5865-3.)
Cover Plate
5865 assembly is mounted
at the factory to a plexi-glass
plate. (5865-4 assemby shown.)
To Next Page
