151430-L8 Control Panel Installation
4-12

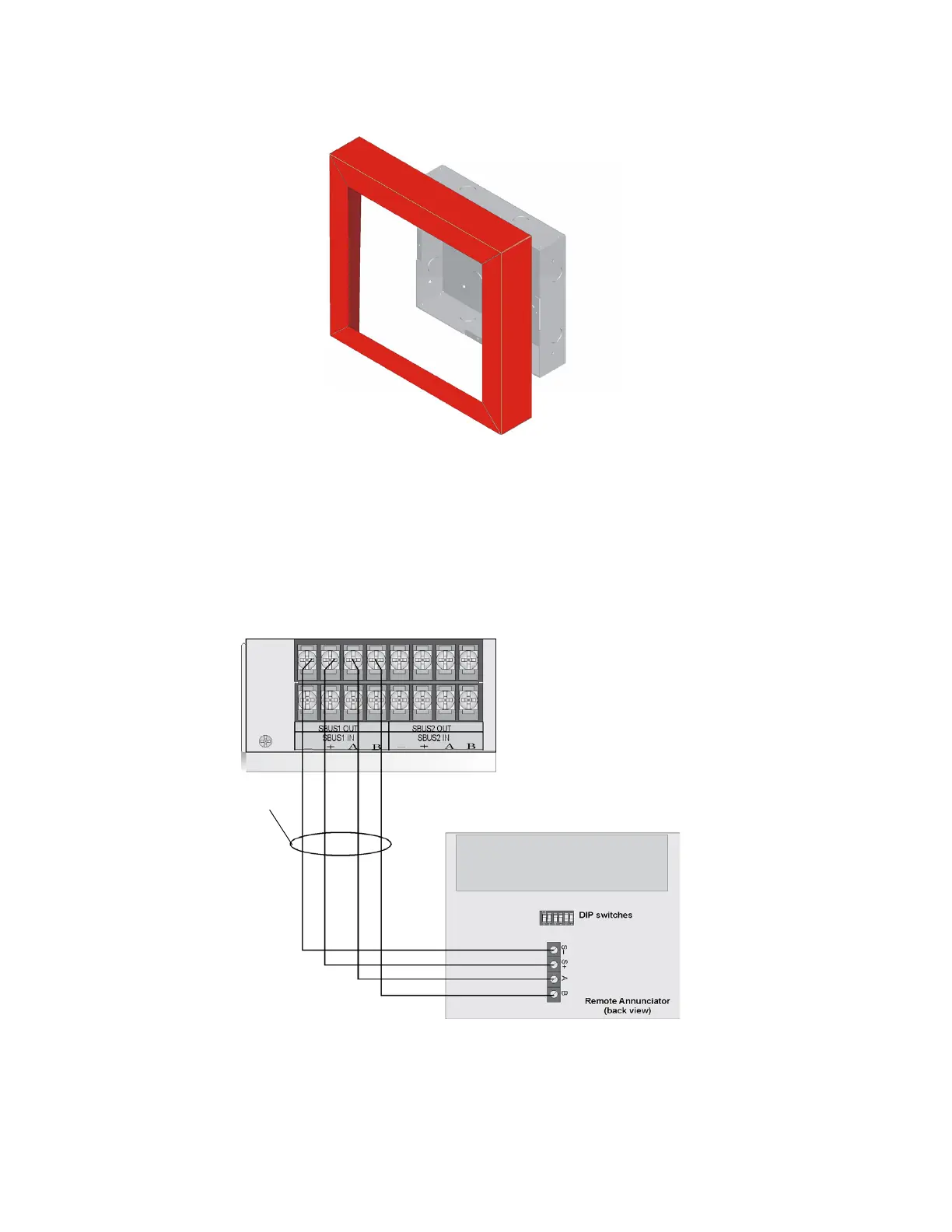

4. Place the trim ring over the back box as shown in Figure 4-15.
Figure 4-15 Installing Trim Ring
5. Attach the door assembly to the back box using screws provided.
6. After the SBUS wiring to the annunciator is complete (described in Section 4.5.2), replace the electronic
assembly in the back box.
4.5.2 RA-2000 Connection to the Panel
Connect the RA-2000 to the panel as shown in Figure 4-16.
Figure 4-16 Model RA-2000 Connection to the Panel
supervised
power limited
