151430-L8 IDP and SD SLC Device Installation
7-8
7.7 Wiring SD Detectors
This section describes how to install SD heat and smoke detectors. All detectors ship with installation
instructions. Refer to each detectors' installation instructions for more detailed information.
This information applies to the following SD models:
SD505-HEAT Heat Detector
SD505-PHOTO Photoelectric Smoke Detector
To wire SD505-PHOTO or SD505-HEAT detectors:
1. Wire device bases as shown in Figure 7-6.
2. Set the address for each device as described in Section 7.8.

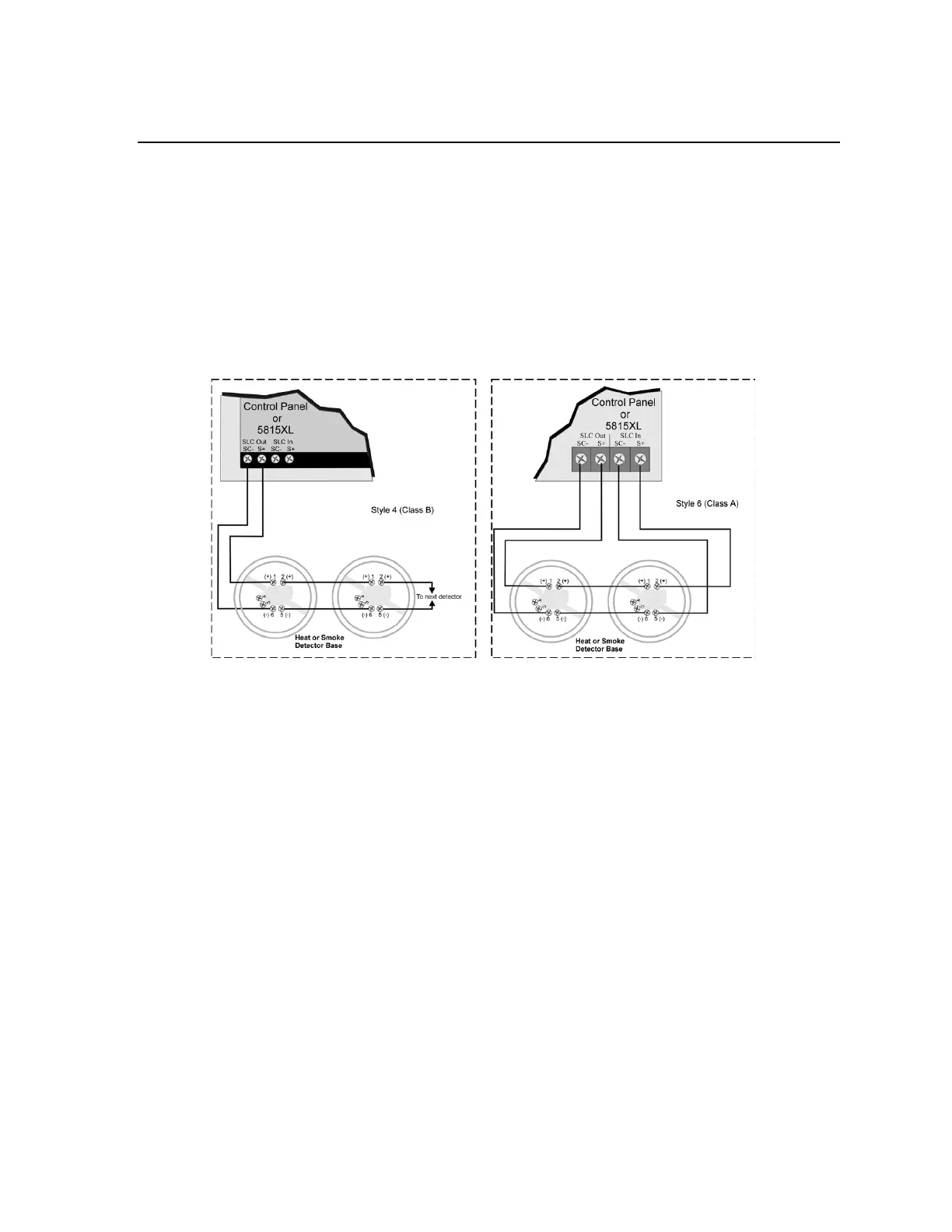

Figure 7-6 Heat or Smoke Detector Connection to the FACP
To Next Page
