151430-L8 Programming Overview
8-4
8.3 Mapping Overview
This section of the manual is a high level overview of mapping.
Mapping is an important concept with the control panel. In general terms, mapping is assigning or linking events
to outputs that should activate when events occur. You do this by assigning input points to input zones, output
points to output groups and then linking or mapping zones and output groups.
Figure 8-1 is a brief overview of the concept of mapping. The next several pages of the manual show these
subjects in detail.

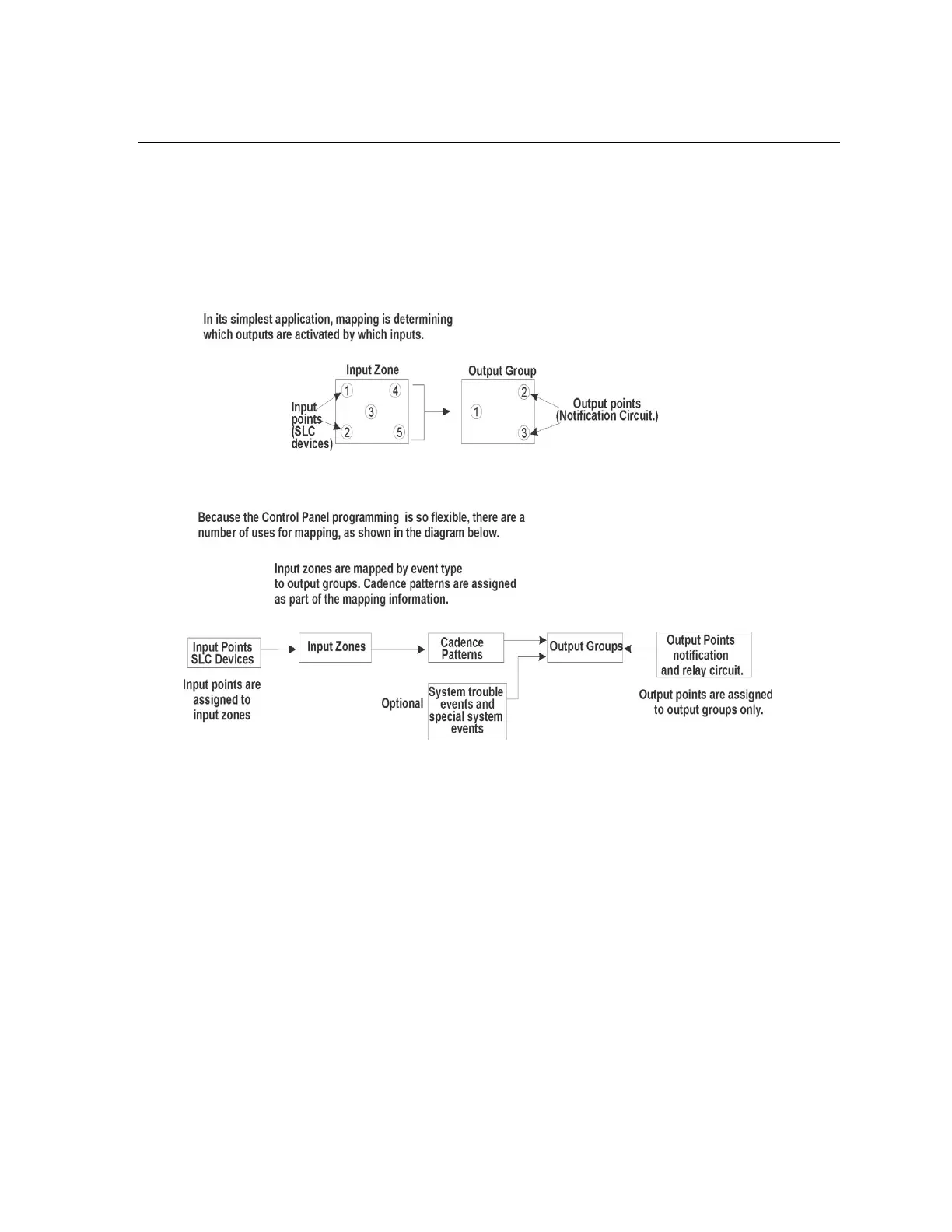

Figure 8-1 Mapping Overview
