Model IFP-2000/ECS Installation Manual 151430-L8
4-9
4.5 RA-2000 Remote Annunciator Installation
The optional Model RA-2000 Remote Annunciator, shown in Figure 4-10, performs the same functions as the
on-board annunciator. The RA-2000 can be surface or flush mounted. It is also available in gray color as RA-
2000GRAY.

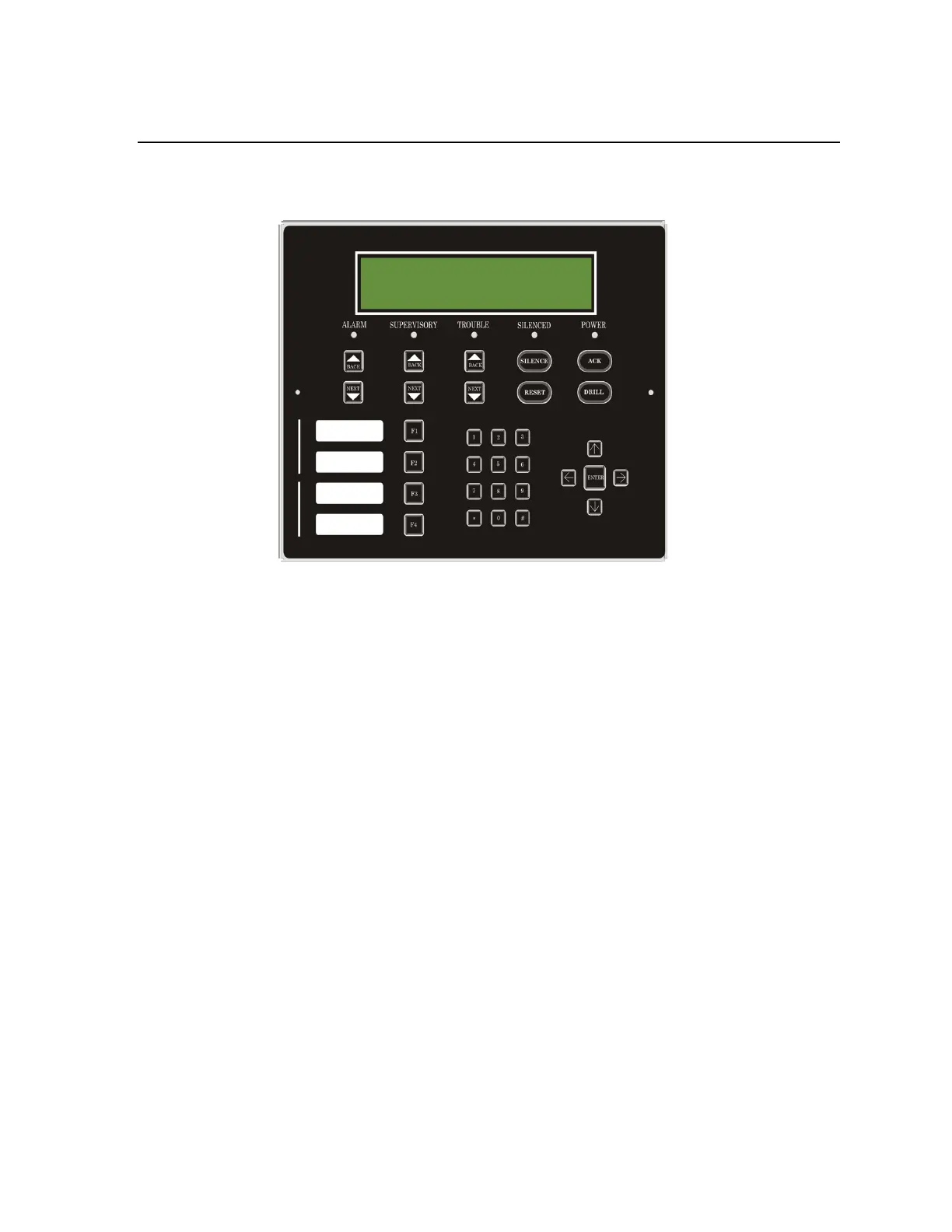

Figure 4-10 Model RA-2000 Remote Annunciator, Front View
RA-2000 installation involves the following steps:
1. Make sure power is off at the panel.
2. Mount the RA-2000 in the desired location (see Section 4.5.1).
3. Connect the RA-2000 to the panel (see Section 4.5.2).
4. Use the DIP switches on the back of the RA-2000 to assign an SBUS ID# to the RA-2000 (see Section
4.10.1).
5. The RA-2000 module must be added to the system through programming. JumpStart AutoProgramming will
add the module automatically (see Section 8.2.3). You can also add it manually (see Section 9.2.2). Select a
name, if desired (see Section 9.2.1.2).
4.5.1 Mounting the RA-2000
This section of the manual describes mounting the remote annunciator. The annunciator can be flush or surface
mounted.
4.5.1.1 Flush Mounting
This section of the manual describes flush mounting.
