Model IFP-2000/ECS Installation Manual 151430-L8
8-5
8.3.1 Input Point Mapping
Input points are assigned to input zones, as the example if Figure 8-2 shows. Any input point can be assigned to
any input zone. (Input points can be assigned to one zone only. An input point can be designated as “Unused,”
which means it has not been assigned to a zone).

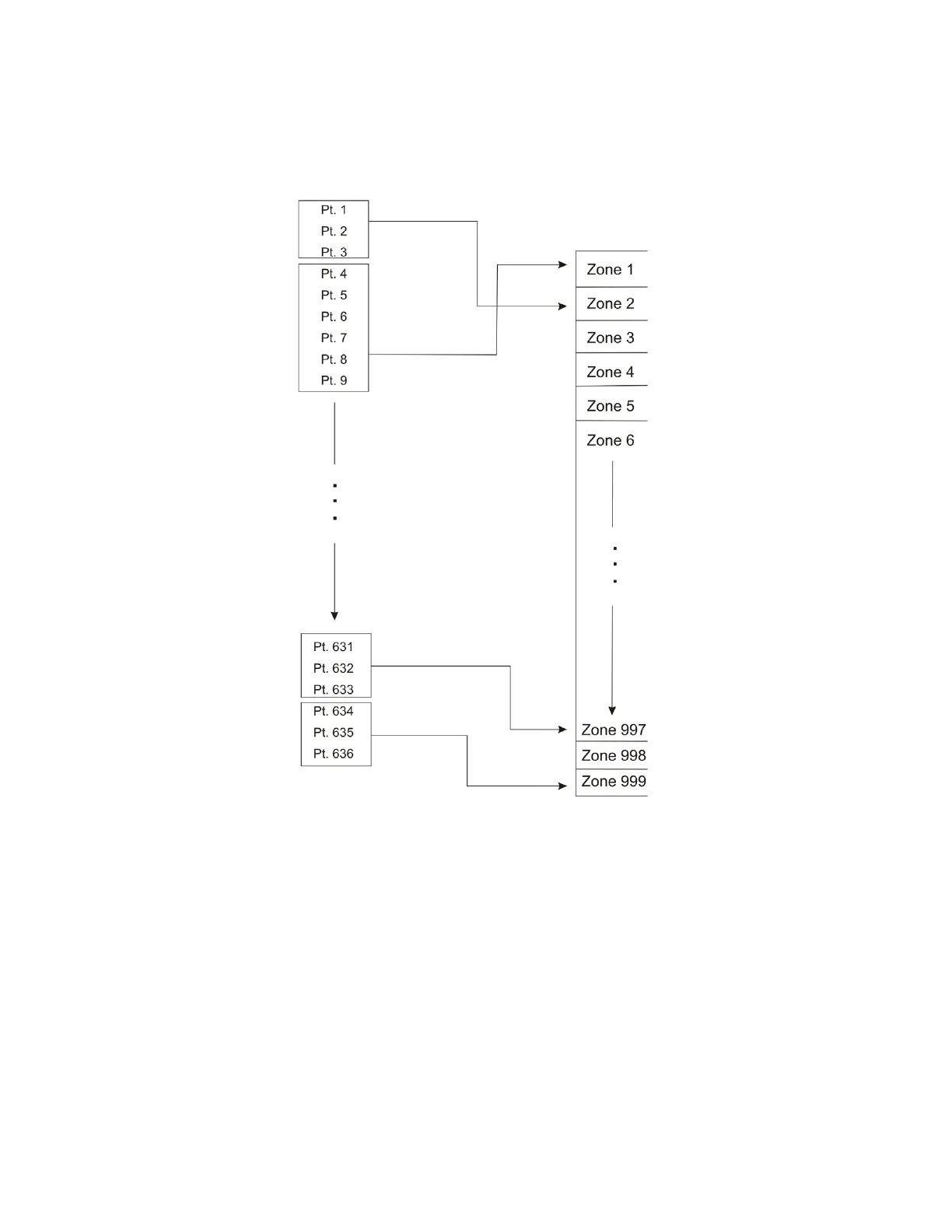

Figure 8-2 Example of Input Point Assignment
