Model IFP-2000/ECS Installation Manual 151430-L8
4-33
4.14 Remote Station Applications
4.14.1 Keltron Model 3158 Installation
The control panel is compatible with Keltron Model 3158, used for direct connection to a Keltron receiver. The
3158 reports alarms, supervisories, and troubles.
The steps for connecting the 3158 to the control panel. Refer to the 3158 installation instructions for complete
information.
1. Wire the 3158 to the control panel as shown in the connection list and Figure 4-42.
2. Wire the 3158 within 20 feet of the control panel. Wiring must be enclosed in conduit.
3. Program control panel Relay 1 for alarm.
4. Program Flexput circuit 5 for alarm.
5. Program Flexput circuit 6 for supervisory non latching.

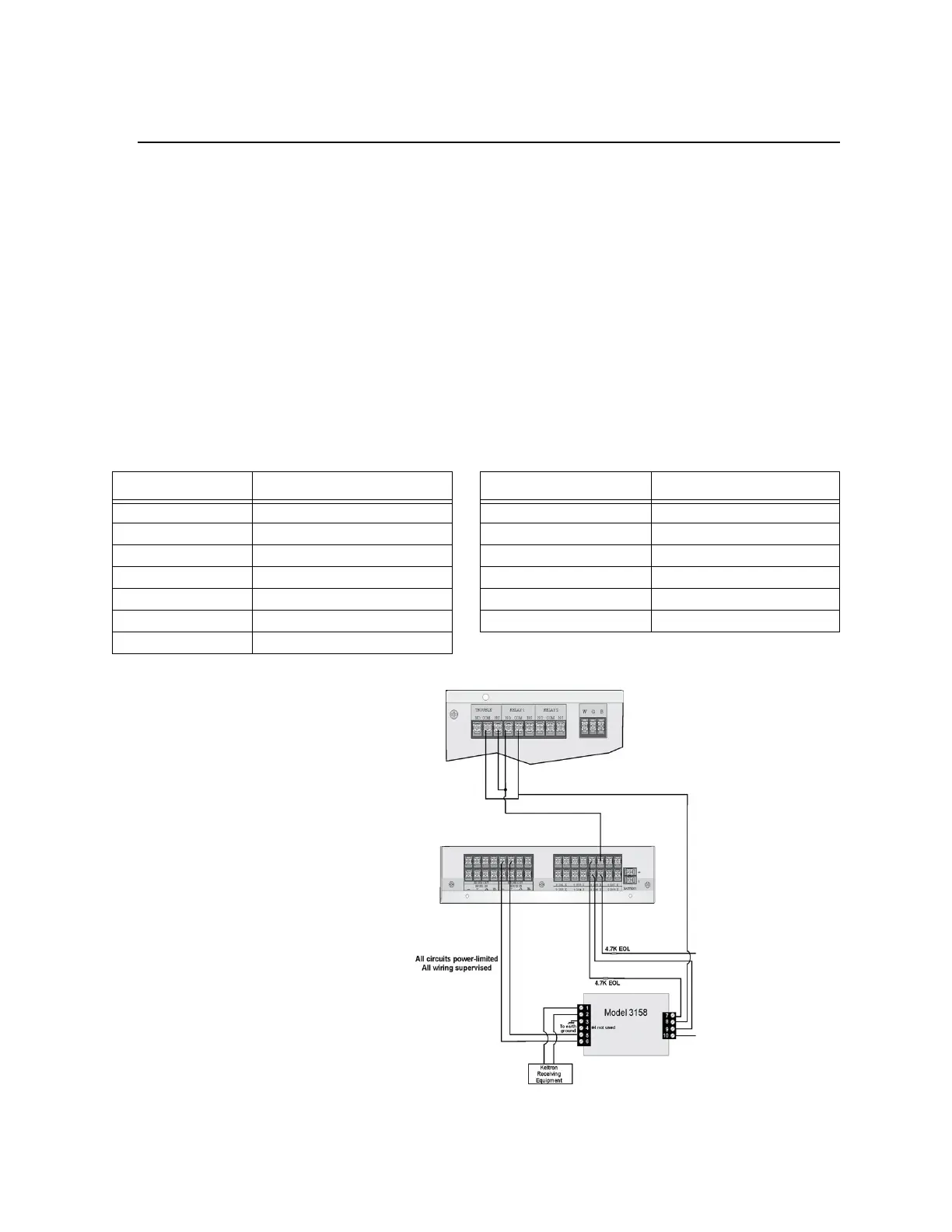

Figure 4-42 Keltron 3158 Connection to Control Panel
Table 4-5: Keltron 3158 to Control Panel Connections
Terminal # Connects To Terminal # Connects To
3158 Term. 1 To Keltron receiving equipment 3158 Term. 8 Control panel Relay 1 COM
3158 Term. 2 To Keltron receiving equipment 3158 Term. 9 Control panel I/O6 O
3158 Term. 3 Earth ground 3158 Term. 10 Control panel I/O6 X
3158 Term. 4 Not used; no connection. Control panel I/O5 X Control panel Relay 1 NO
3158 Term. 5 Control panel SBUS OUT + Control panel Relay 1 COM Control panel Trouble COM
3158 Term. 6 Control panel SBUS OUT – Control panel Relay 1 NO Control panel Trouble NC
3158 Term. 7 Control panel I/O5 O
Not suitable for remote station
where separate transmission
supervisory (if applicable), and
protected premise service
circuits are required for fire
trouble signals.
Intended for connection to a
polarity reversal circuit of a
remote station receiving unit
having compatible ratings.
