151430-L8
Programming Overview
8-16
8.5.1.3
Editing Keys
The keys shown in Figure 8-13 are available for
use when yo
u are in the Panel Programming menu.

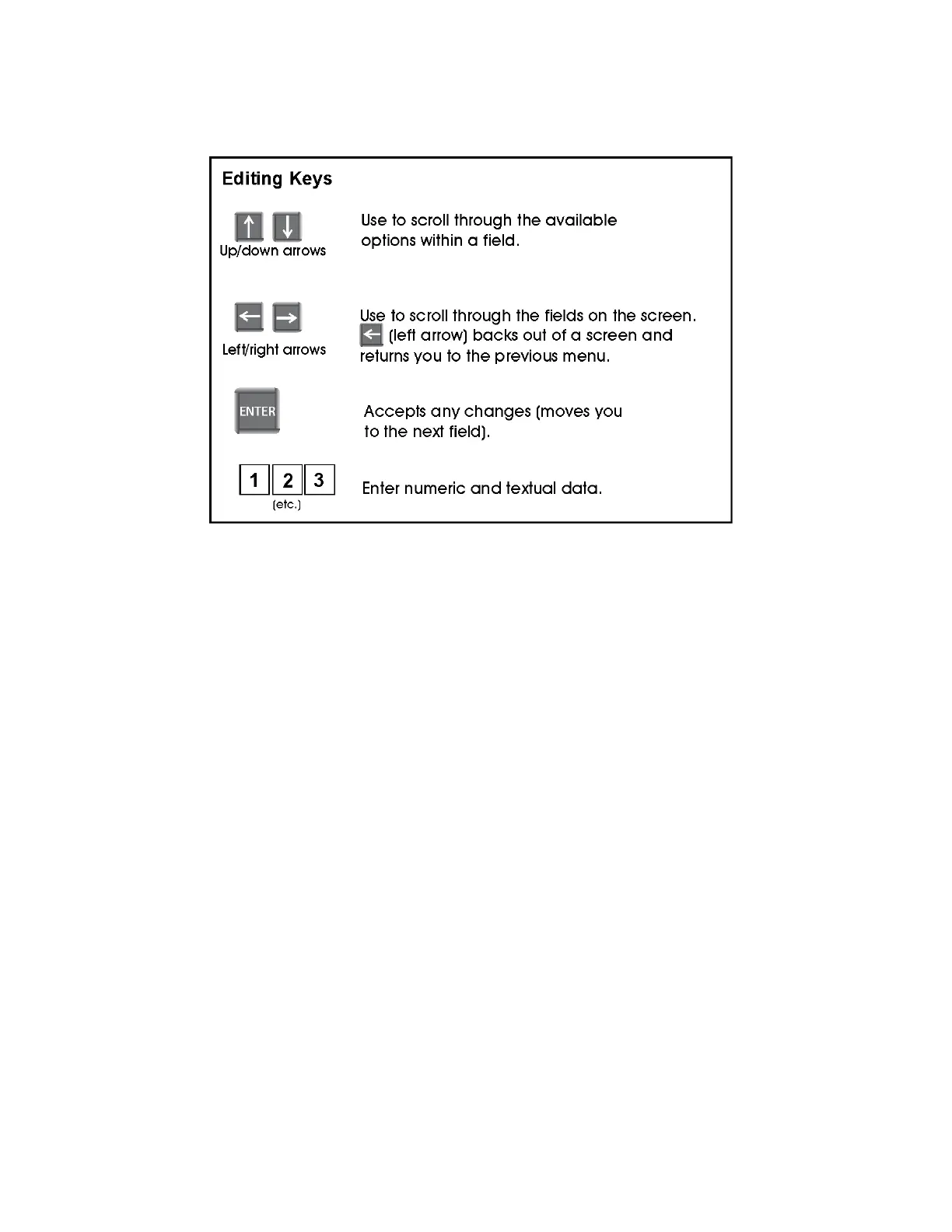

Figure 8-13 Editing Keys Availabl
e from the Panel Programming Menu
124
126
Table of Contents
Table of Contents
5
Introduction
14
Overview of Basic System
14
Hardware Features
14
Network System Hardware Features
14
Software Features
15
IFP-2000ECS Features
15
About this Manual
15
Terms Used in this Manual
16
Compatible Products
17
Agency Listings, Approvals, and Requirements
19
Federal Communications Commission (FCC)
19
Underwriters Laboratories (UL)
20
Requirements for All Installations
20
Requirements for Central Station Fire Alarm Systems
20
Requirements for Local Protected Fire Alarm Systems
20
Requirements for Remote Station Protected Fire Alarm Systems - (DACT)
21
Before You Begin Installation
22
What's in the Box
22
Environmental Specifications
22
Electrical Specifications
22
Wiring Specifications
25
Board Assembly Diagram
28
Calculating Current Draw and Standby Battery
29
Current Draw Worksheet Requirements
29
Current Draw Worksheet for IDP SLC Devices
29
Current Draw Worksheet for SD SLC Devices
33
Maximum Battery Standby Load
37
Installation Task Overview
37
Control Panel Installation
41
Mounting the Control Panel Cabinet
41
Preventing Water Damage
41
Removing the IFP-2000 Assembly from the Housing
41
Ethernet Connection
41
AC Connection
42
Battery Connection
43
Battery Accessory Cabinets
43
Installing the RBB or AB-55 Accessory Cabinet and Batteries
43
SBUS Wiring
45
Calculating Wiring Distance for SBUS Modules
45
Wiring Configurations
48
RA-2000 Remote Annunciator Installation
49
Mounting the RA-2000
49
Flush Mounting
49
Surface Mounting
51
RA-2000 Connection to the Panel
52
Temporary Programming Display
53
5815XL Installation
53
5815XL Connection to the Panel
54
5824 Serial/Parallel Interface Module Installation
54
Selecting 5824 Options
56
5880 LED I/O Module
57
5880 Board Layout
57
FACP Connection
58
LED Wiring
58
Dry Contact Wiring
59
5865-3 / 5865-4 LED Annunciator Installation
60
FACP Connection
60
5865 Mounting
61
Configuring SBUS Modules
62
Assigning SBUS Module Ids
62
SBUS Bandwidth Considerations
62
Telephone Connection
63
Flexputs ™ I/O Circuits
63
Conventional Notification Appliance
63
Class B Notification Wiring
63
Class a Notification Wiring
64
Conventional Input Switch Circuits
65
Class B Inputs
65
Class a Inputs
66
Installing 2-Wire Smoke Detectors
67
Installing 2-Wire Class B Smoke Detectors
67
Installing 2-Wire Class a Smoke Detectors
68
Installing 4-Wire Smoke Detectors
68
Installing a Class B 4-Wire Smoke Detectors
68
Installing 4-Wire Class a Smoke Detectors
69
Auxiliary Power Installation
70
Door Holder Power
71
Constant Power
71
Resettable Power
71
Sounder Sync Power
71
On-Board Relays (Conventional)
72
Trouble Relay
72
Programmable Relays
72
Remote Station Applications
73
Keltron Model 3158 Installation
73
City Box Connection Using the 5220 Module
74
Using the IDP-Relay Addressable Relay Module for City Box Connection
75
NFPA 72 Polarity Reversal
75
Using the 5220 Module
75
Using the 7644-L8* Module
76
Transmitter Activated by Dry Contacts
77
Networking
78
Network System Hardware Features
78
Networked Sites
78
Wiring Options to Connect Networked Panels
78
Model RPS-2000
78
Direct Connect Wiring Option
78
Installing Using Direct Connection Within a Site
79
Repeater Wiring Options
80
Network Repeater Types
80
Accessory Mounting Kits
81
Network Repeater Installation
81
Network Repeater Cable Requirements
82
Unshielded Twisted Pair Wiring between Multiple Panels
82
Fiber Optic Repeater Wiring between Multiple Panels
83
Fiber Optic and Twisted Pair Repeater Wiring between Multiple Panels
83
Using both Repeaters and Direct Connect Wiring on a Networked System
85
Setting the Network Terminators at Panel DIP Switches and Repeater Jumpers
85
Setting the Network ID for each Panel
87
Network Management
88
Network Diagnostics
88
Ping Panel
88
Network Status
88
Repeater Power
88
Network Programming
88
Learn Network
88
Edit Network Names
89
Edit Panel ID
89
Computer Access
90
Access Codes
91
Edit Name
93
Edit Access Code
93
Panel Functions
93
Dialer
93
Dialer Assignments
93
Dialer Miscellaneous
93
Receiver Configuration
93
Dialer Report Table
94
Voice Options
94
Edit Timers
94
Control Lockout
94
Auto Reset ECS Custom Event/Auto Reset ECS Event
94
Edit Voice Commands
95
Sync Network Options
96
Network Management Quick Reference
97
IDP and SD SLC Device Installation
100
List of IDP SLC Devices
100
List of SD SLC Devices
101
Maximum Number of SLC Devices
102
Wiring Requirements for SLC Devices
102
Wiring 5815XL in Style 4 (Class B) Configuration
102
Wiring 5815XL in Style 6 & 7 (Class A) Configuration
104
Wiring IDP SLC Detectors
105
Addressing IDP SLC Devices
106
Wiring SD Detectors
107
Addressing SD Devices
108
Sd505-Photo & Sd505-Heat
108
SLC Devices with DIP Switches
109
Programming Overview
110
Security and Data Protection
110
Jumpstart Autoprogramming
110
Input Points
110
Output Points
111
Running Jumpstart Autoprogramming
111
Mapping Overview
113
Input Point Mapping
114
Output Circuit Mapping
115
Event Mapping
116
Mapping LED Points
122
Mapping LED Points for a Networked System
123
Programming Using the 5655 Silent Knight PC Configuration Software
123
Programming Using an Annunciator
123
Entering & Exiting Panel Programming
124
Moving through the Menus
124
Selecting Options and Entering Data
124
Editing Keys
125
Programming Menu Quick Reference
126
Programming
134
UL 864 / UL 2572 Programming Requirements
134
Modules
134
Edit Modules
135
Editing Module ID
135
Naming Modules
135
Changing Module Options
135
Adding a Module
136
Deleting a Module
136
View Module List
136
Zone
136
Edit Zone
137
Edit Zone Name
137
Edit Zone Properties
137
Zone Accessory Options
139
View Zone Points
140
Group
140
Edit Group
140
Edit Group Name
141
Edit Group Properties
141
View Group Points
142
Edit OPG Template
142
Point
143
Point Programming for 5815XL Module
143
Point Programming for Internal or External Power Module (RPS-1000)
147
Point Programming for 5880/5865 Modules
149
Point Programming for 5496
150
Point Programming for ECS-Amp's
150
Point Programming for ECS-VCM or ECS-RVM
151
System Options
153
Auto Test Time
153
Phone Lines
154
Dialing Prefix
154
Number of Answer Rings
154
Dial Option (Touchtone or Pulse, or TT/PL)
155
Rotary Format
155
Dial Tone Detection Disabled
155
Line Monitor
155
Answering Machine Bypass
155
Phone Line Unused
155
Daytime/Nighttime Sensitivity
156
Holiday Days
156
Time Options
157
Water Flow Delay
157
Alarm Verification Time
157
Low AC Report Delay
157
Change AC Line Frequency
158
Clock Display Format (AM/PM or Military)
158
Miscellaneous Options
158
Strobes Active When Silenced
158
Auto Display Events
158
IFP-RPT Repeater Installed
158
Both Ports Used
159
Daylight Saving Options
159
Automatic Daylight Saving Adjustment
159
Daylight Saving Time Start and End
159
Edit Banner
160
Edit SLC Family
160
Edit Ethernet
160
Jumpstart Autoprogramming
161
Restore Defaults
161
Voice Options
161
ECS-VCM Maintenance
161
Edit Voice Settings
162
Enable Dual Channel System
162
System Operation
163
Annunciator Description
163
LCD Display
163
Banner
164
Menu System
164
Main Menu Overview
164
Using the Menus
165
Basic Operation
165
Setting Time and Date
165
Disable / Enable a Point
165
Disable / Enable Nacs by Template
165
Disable / Enable Nacs by Group
165
Disable / Enable Zone Points
165
Disable / Enable Point
165
Inhibit Output Group
165
View Event History
166
To Clear the Event History
166
Conduct a Fire Drill
166
Conduct an Indicator Test
166
Conduct a Walk Test
167
Conduct a Dialer Test
167
Silence Alarms or Troubles
167
Reset Alarms
167
Check Detector Sensitivity through Point Status
168
View Status of a Point
168
View Alarms or Troubles
169
System Information
169
Communicating with a Remote Computer
169
Event Priority
170
System Control
170
System Override
170
Priority Rules
171
Other Priority Considerations
171
Operation Mode Behavior
172
Releasing Operations
177
Single Interlock Zone Releasing
179
Double Interlock Zone Releasing
180
Smoke Alarm Verification
181
Function Keys
181
Recording an F-Key Macro
181
Aborting an F-Key Macro Recording Session
181
Erasing an F-Key Macro
182
Using a Recorded F-Key Macro
182
F-Key Status Event
182
F-Key Map Inhibit
182
Emergency Communication System Operation
183
Overview
183
LOC Functionality
183
Keys and Leds
183
ECS Control Key
183
ECS Control LED
183
ECS Message Keys
184
ECS Message Leds
184
Select Keys
184
Select Key Leds
184
Gaining ECS Control
185
LOC Priority
185
LOC Lockout
185
User Profile Access Control
186
Manual ECS
186
Switching between Microphone Mode and Message Mode
186
Activating Output Groups Dynamically
186
Microphone Mode
186
Message Mode
187
Custom ECS Event
187
Passing ECS Control
187
Exit ECS Control Menu
188
Relinquish ECS Control
188
ECS Reset
188
ECS Super User
188
ECS Point Functionality
189
ECS Point Activations
189
ECS-VCM Points
189
Amplifier Programming
189
Adding an Amplifier
189
Editing an Amplifier
190
LOC Programming
190
Adding an LOC
190
Editing an LOC
190
LOC Priority
191
LOC Association
191
Using the Microphone
191
Microphone Functionality
191
Custom ECS Event
191
Fire Page
191
Emergency Page
191
Paging
192
Recording Custom Messages
192
Recording Messages 1-15 Using aux Audio Input
193
Recording Messages 1-15 Using the Microphone
195
Erasing User Message
197
Using Farenhyt ECS Message Manager Software Tool
197
Reporting
198
Receivers Compatible with the Control Panel
198
Reporting Formats Table
198
SIA - Intelliknight / IFP-2000 Panels PI Modifier Reporting
210
SIA - IFP-2000 Panel Dialer
211
Testing and Troubleshooting
213
Troubleshooting
213
Common Problems
213
Periodic Testing and Maintenance
214
Event History
214
Built-In Troubleshooting and Testing Tools
215
SLC Device Locator
215
SLC Multiple Device Locator
215
I/O Point Control
216
Earth Fault Resistance
216
Installation Records
218
Detector and Module Point Record
218
Conventional Output Point Record
222
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Honeywell Farenhyt IFP-2000 and is the answer not in the manual?
Ask a question
Honeywell Farenhyt IFP-2000 Specifications
General
Brand
Honeywell
Model
Farenhyt IFP-2000
Category
Conference System
Language
English
Related product manuals
Honeywell Farenhyt ECS Series
64 pages
Honeywell Mark III
59 pages
Honeywell JetWave
12 pages
Honeywell IFP-2100
264 pages
Honeywell IFP-2100ECS
264 pages
Honeywell RFP-2100
264 pages
Honeywell ECS Series
264 pages
Honeywell ASPIRE-400
130 pages
Need help?
General
To Next Page
