151430-L8 Programming
9-2
module,5880 LED I/O module, 5865 LED annunciator, ECS-50W or ECS-125W watt audio amplifier, ECS-
AMP audio/voice amplifier, ECS-VCM voice control module, ECS-INT50W 50 watt internal amplifier, ECS-
RVM remote voice module, and ECS-DUAL50W dual channel amplifier.
9.2.1 Edit Modules
The features that can be edited when this option is selected are module ID, module name, or features that are
specific to the module to be edited.
To edit an existing module:
1. Enter the installer code. The panel will automatically go to the main menu.
2. Select 7 for Panel Programming.
Note: If you are working on a networked system you will need to select which panel you want to program
3. Press 1 to enter module menu.
4. Press 1 to edit a module.
5. Use the Up or Down arrow to select the module you wish to edit.
6. Press the right arrow
or ENTER to move to next selection.
9.2.1.1 Editing Module ID
7. Press the Up or Down arrow to modify the module ID.
Note: Internal devices are not able to have their module ID edited.
9.2.1.2 Naming Modules
You can assign an English name to a system hardware module to make it easier to recognize on a display.
8. If you wish to edit the module’s name, press ENTER on the module’s name. Then, press the number keys
corresponding to the character for the module’s, name (or press the right arrow to bypass editing the name).
Note: See Appendix B for editing names.

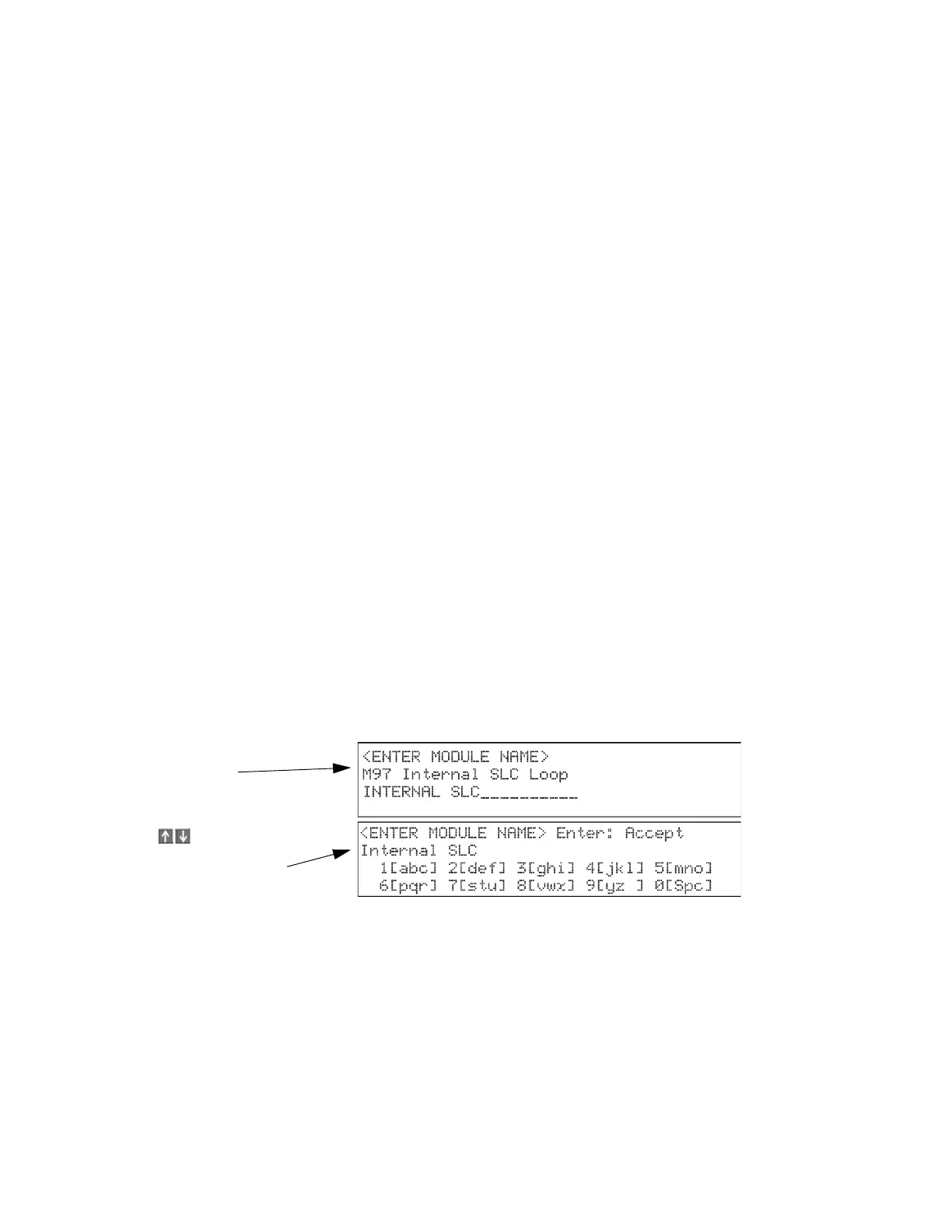

Figure 9-1 Edit module Name Programming Screen Example
9.2.1.3 Changing Module Options
Each module has a unique set of options that specifically applies to the functionality of the module being edited.
9. Use the left and right arrow keys to move between available options.
10. Option settings are edited by pressing the Up or Down arrow or using the keypad for numerical entry.
Default name for the Int
5815XL module
(no customization)
Use to select
Mode. Press the number until
shown. Press left/rt arrow
the character wanted is
To Next Page
