151430-L8 Control Panel Installation
4-16
4.7.1 Selecting 5824 Options
Configuring the 5824 includes the following steps:
• Add the module to the system. JumpStart will add the module automatically (see Section 8.2). You can also
add it manually (see Section 9.2.2).
• Select a name, if desired (see Section 9.2.1.2).
• Select options for the printer and the output port. See below.
Printer and Output Port Options
1. From the Main Menu, select 7 for Panel Programming.
2. Select 1 for Module.
3. Select 1 for Edit Module.
4. From the list that displays, select the 5824 module you want to configure.
5. Press the right arrow twice to skip over the Enter Module ID and Enter Module Name options. A screen sim-
ilar to the one shown in Figure 4-21 will display.

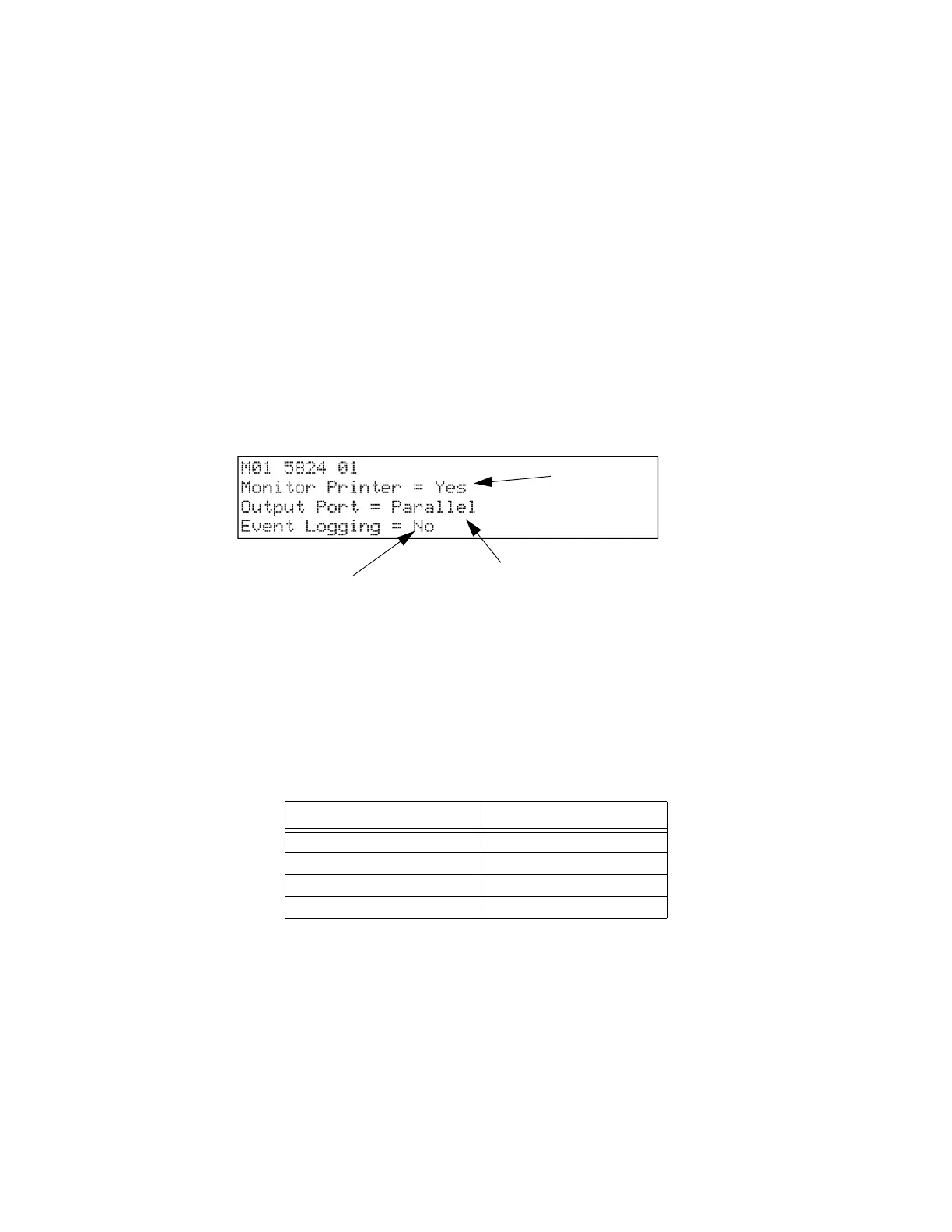

Figure 4-21 Selecting Printer and Output Port Options
6. Select options for the printer as needed for your installation. Most printers are
parallel.
Note: When setting Monitor Printer to “Yes” the system defaults to printing only for the connected panels site.
Use SKSS-2 to configure the 5824 to print for multiple sites.
7. If you are using a serial printer, use the next screen to select serial port options as required for your printer.
Refer to your printer manual if you need more information.
Option Choices
Baud Rate: 75 - 19200
Data Bits: 5 - 8
Stop Bits: .5, 1, 2
Parity: None, Even, Odd
Select yes if printer
should be supervised
for paper and
off line conditions
Select type of printer
Parallel or Serial. (Most printers
are parallel)
Defaulted to No
Select “Yes” for
event logging
To Next Page
