4.8 5880 LED I/O Module
The 5880 is an LED driver board that can be used in a wide variety of applications, including as an interface with
most customized floor plan annunciator boards. The 5880 can drive up to 40 LEDs and has one PZT controller.
The 5880 also has eight inputs for dry contact monitoring. The following sub-sections describe hardware
installation. Refer to Section 9 for programming information.
4.8.1 5880 Board Layout
Figure 4-22 shows the locations of screw terminals for connection to the panel and contact monitor wiring, pin
connectors for connecting LEDs and the DIP switch for selecting an SBUS ID number for the 5880.

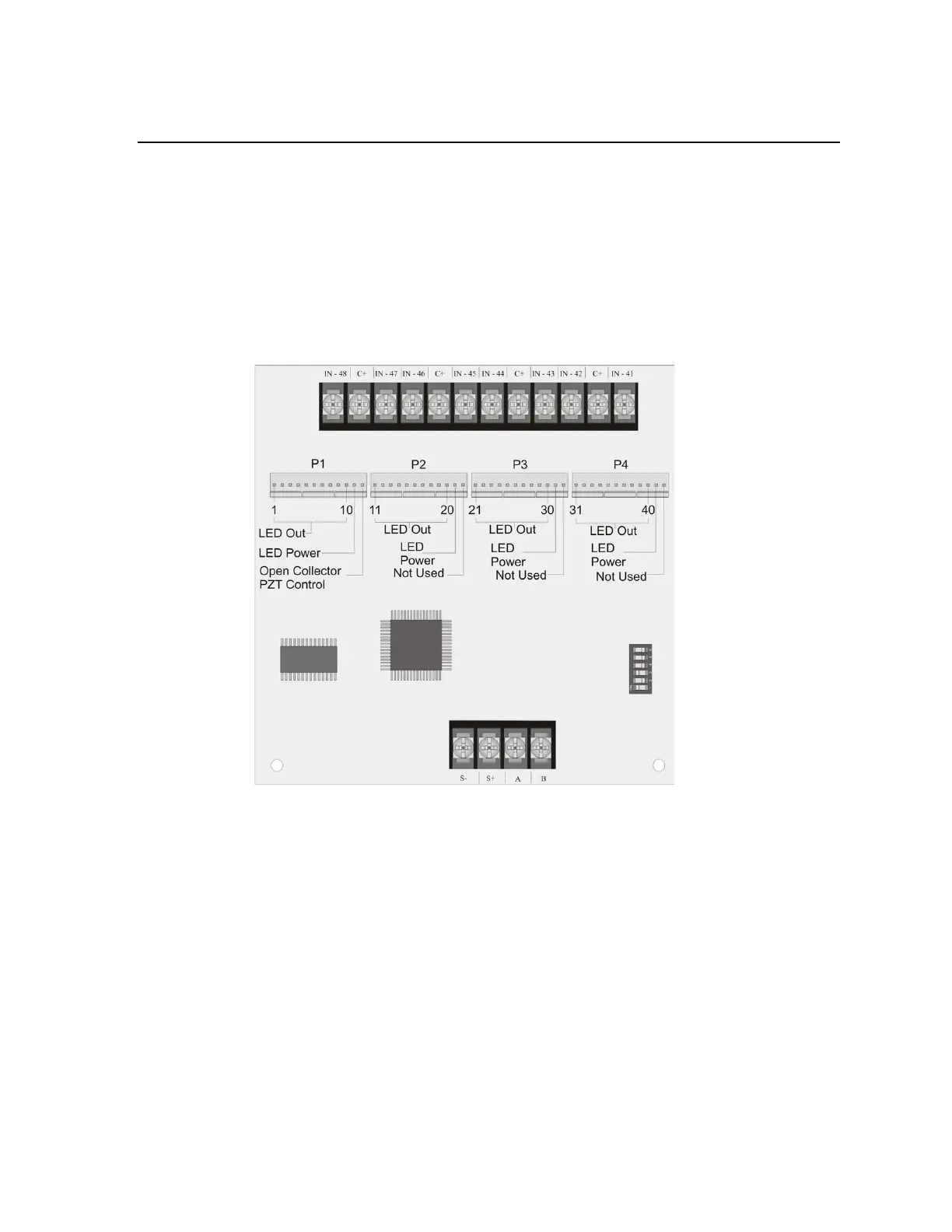

Figure 4-22 5880 Board Layout
SBUS Connection
Dry Contact Inputs
SBUS Address
DIP Switch
