Honeywell Farenhyt IFP-2000 - Fiber Optic Repeater Wiring between Multiple Panels; Fiber Optic and Twisted Pair Repeater Wiring between Multiple Panels

151430-L8 Networking
5-6
5.4.2.3 Fiber Optic Repeater Wiring between Multiple Panels
Fiber optic cable between multiple panels is shown in Figure 5-7 on page 6. Class A is shown with a dotted line.

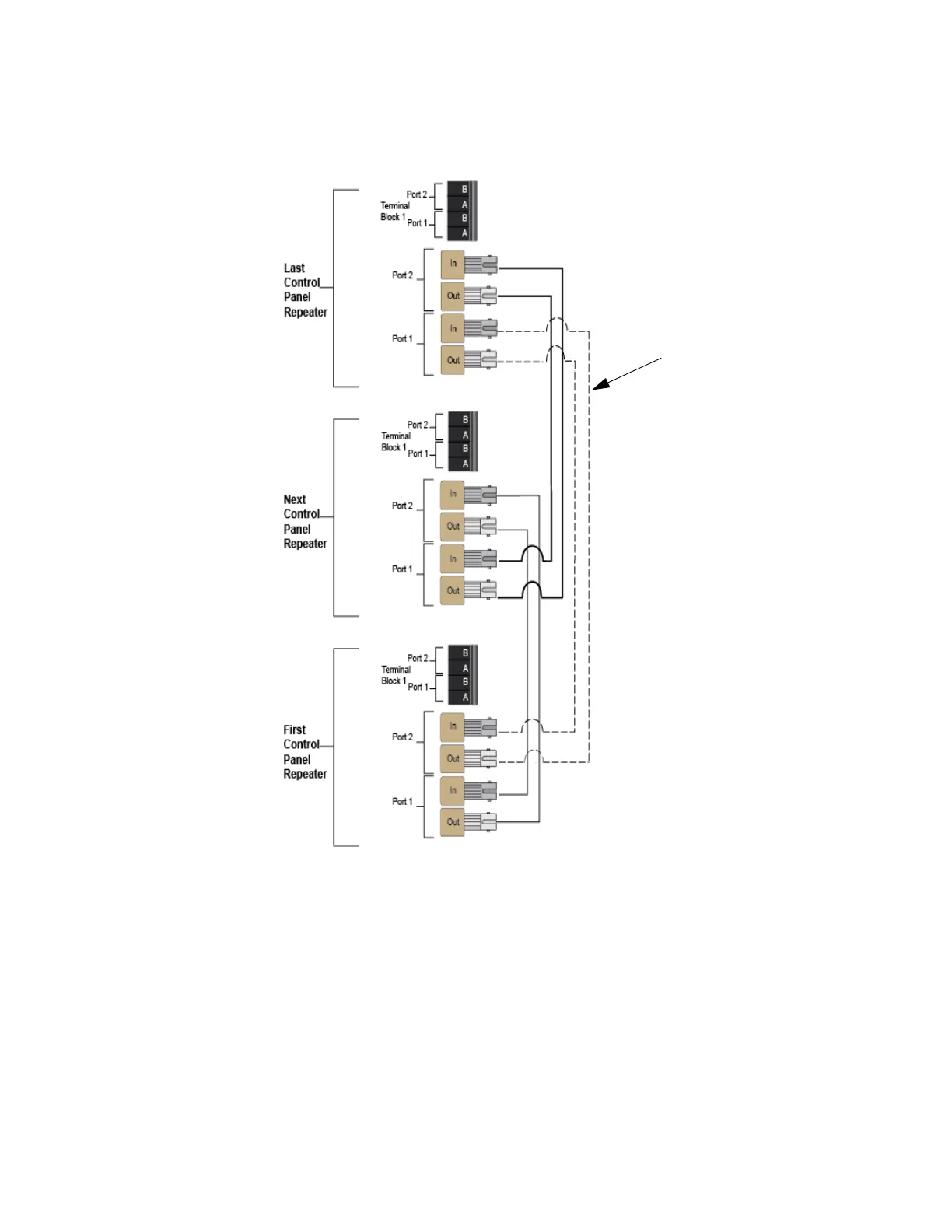

Figure 5-7 Fiber Optic Wiring Example
5.4.2.4 Fiber Optic and Twisted Pair Repeater Wiring between Multiple Panels
A mixture of fiber optic cable and twisted pair wiring between multiple panels is shown in Figure 5-8 on page 7.
Class A
wiring
