Honeywell Series A User Manual

5. Configuration
5.4. Configuring Fieldbus Components In a Control Strategy
R400 Experion PKS Series A Fieldbus Interface Module User's Guide 121
July 2010 Honeywell
AI
AO
CPM/
CEE
FIM
L
L
LL
LL
DI
DO
DEVCTL
IOM
DI
IOM
DO
FTRIG
CPM/CEE
CM102
ST3000FF
Smart Pressure
Transmitter
Logix 1400
V
alve Positioner
Surge Tank
T-106
2000 Gallons
SP = 50%
HI=70%
LO=25%
HIHI=85%
LOLO=15%
Feedback
Command
Recycle
Feed
100
gal/min
Nominal
Interlocks
Recycle Pump
Shut Off at LOLO
Restart at 35%

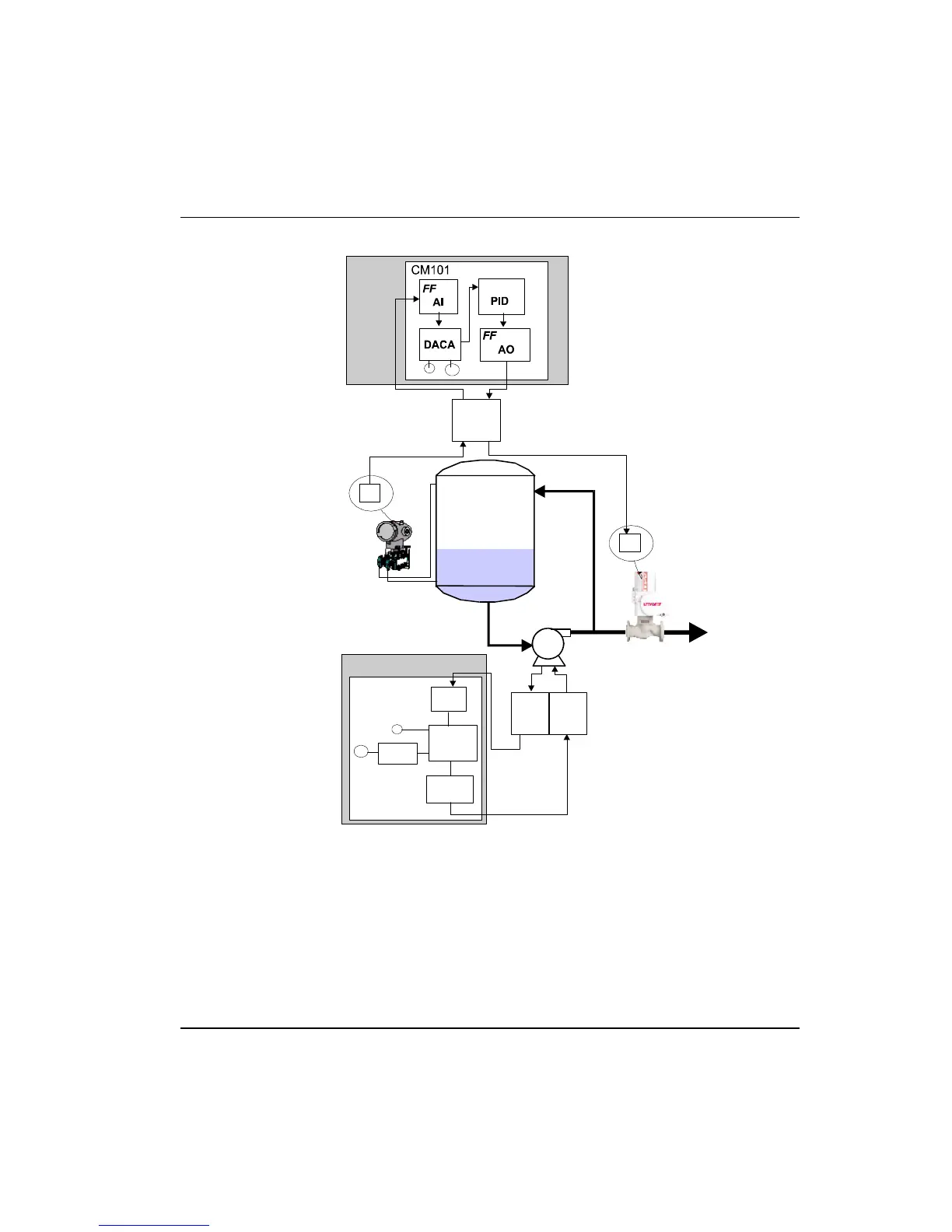

Figure 21 Sample Application and Control Strategy Integrating Fieldbus
Devices with an Experion System.
The application involves controlling the level of a 2000 gallon surge tank with a steady-
state 100 gallon per minute (gal/min) process feed and recycle line. A fieldbus approved
ST3000FF smart pressure transmitter is being used to monitor the level in the surge tank.
A fieldbus approved Logix 1400 valve positioner is being used to regulate the control
valve in the process feed line.
