3. Fieldbus Integration With Experion System
3.1. Overview
R400 Experion PKS Series A Fieldbus Interface Module User's Guide 41
July 2010 Honeywell

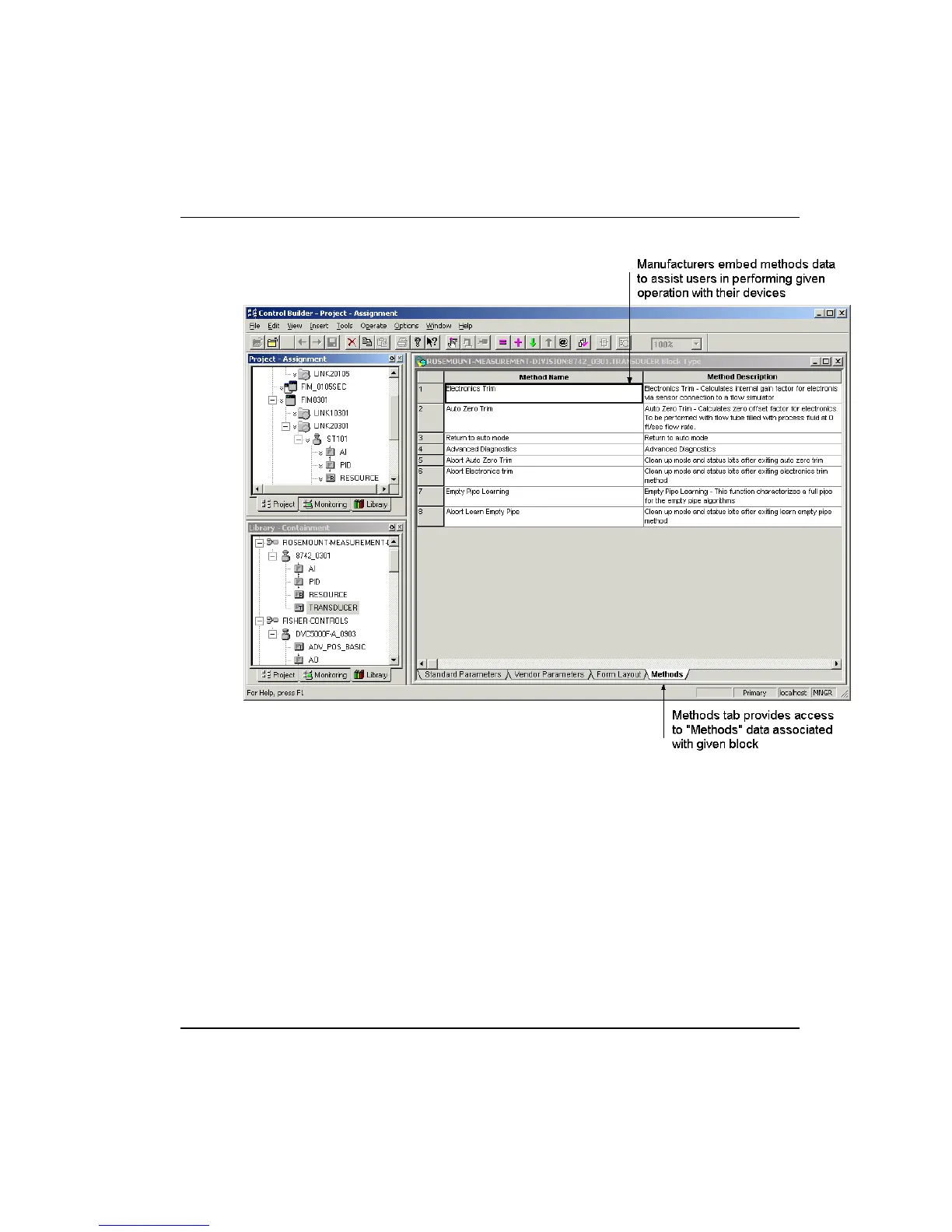

Figure 5 Sample Fieldbus Methods view in Parameter Definition Editor.
Station provides centralized operator interface
Th
e Station application includes Detail Displays dedicated to the configured FIM,
associated H1 Links, fieldbus device, and associated fieldbus function blocks. They
provide access to the same parameters that are accessible through the control charts and
configuration forms in the Monitoring tab of Control Builder. This includes manufacturer
specific parameters, where applicable.
The reporting of alarm conditions and retrieval of process data for inclusion in group,
trend, history, and schematic displays is closely integrated with the system's existing
notification management system. The existing access authorization levels apply and will
take precedence over fieldbus restrictions specified in Device Descriptions.
