8. Maintenance, Checkout, and Calibration
8.7. Using Fieldbus Device Simulate Function
334 Experion PKS Series A Fieldbus Interface Module User's Guide R400
Honeywell July 2010

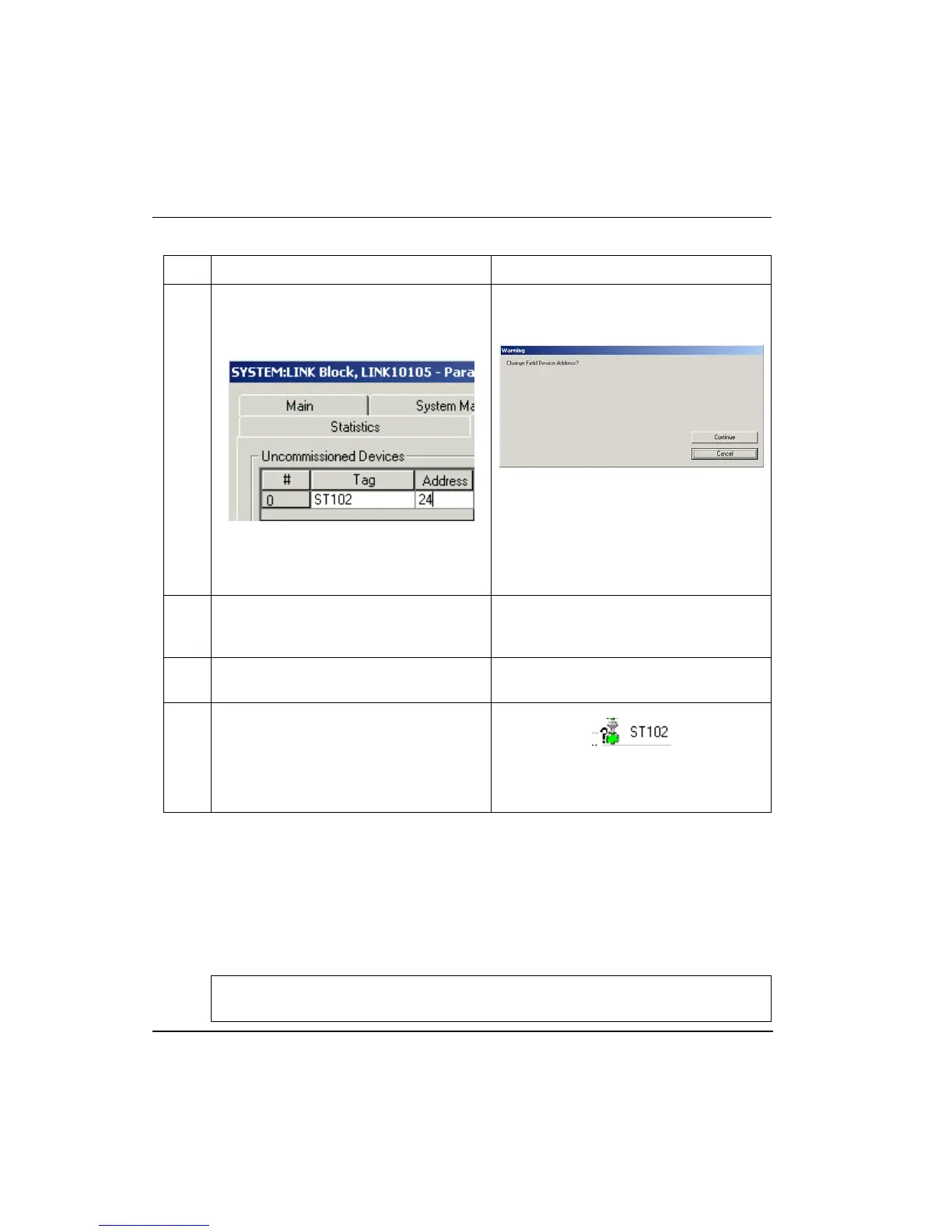

Step Action Result
5
To change the address, key in
desired address. Use 24 for this
example. Press <Enter>.
To clear the address, just highlight
it and press <Delete>. Click the OK
button.
Warning prompt asks for confirmation of
change.
6
Click the Continue button.
Initiates change and opens progress
tracking dialog box to show status of the
change.
7
Wait for change to complete. Click the Ok
button.
Closes the Link Parameter form.
8
Confirm that the tag for the
uncommissioned device icon in the
Monitoring tab has changed or has been
cleared (NoTag_248). This completes the
tag and address changes for the
uncommissioned device
8.7 Using Fieldbus Device Simulate Function
Some of the standard fieldbus function blocks support a signal simulation function for
testing purposes only. The following procedure shows the general steps involved in using
the simulate function with an Analog Input block in a Honeywell ST3000 transmitter. All
the illustrations used in the procedure are for example purposes only. You can easily
adapt this procedure to any applicable fieldbus device.
Only use the simulate function when the system is offline or in a safe
operating mode for testing purposes.
