3. Fieldbus Integration With Experion System

3.7. CIOM-A FIM Redundancy Functionality

R400 Experion PKS Series A Fieldbus Interface Module User's Guide 79

July 2010 Honeywell

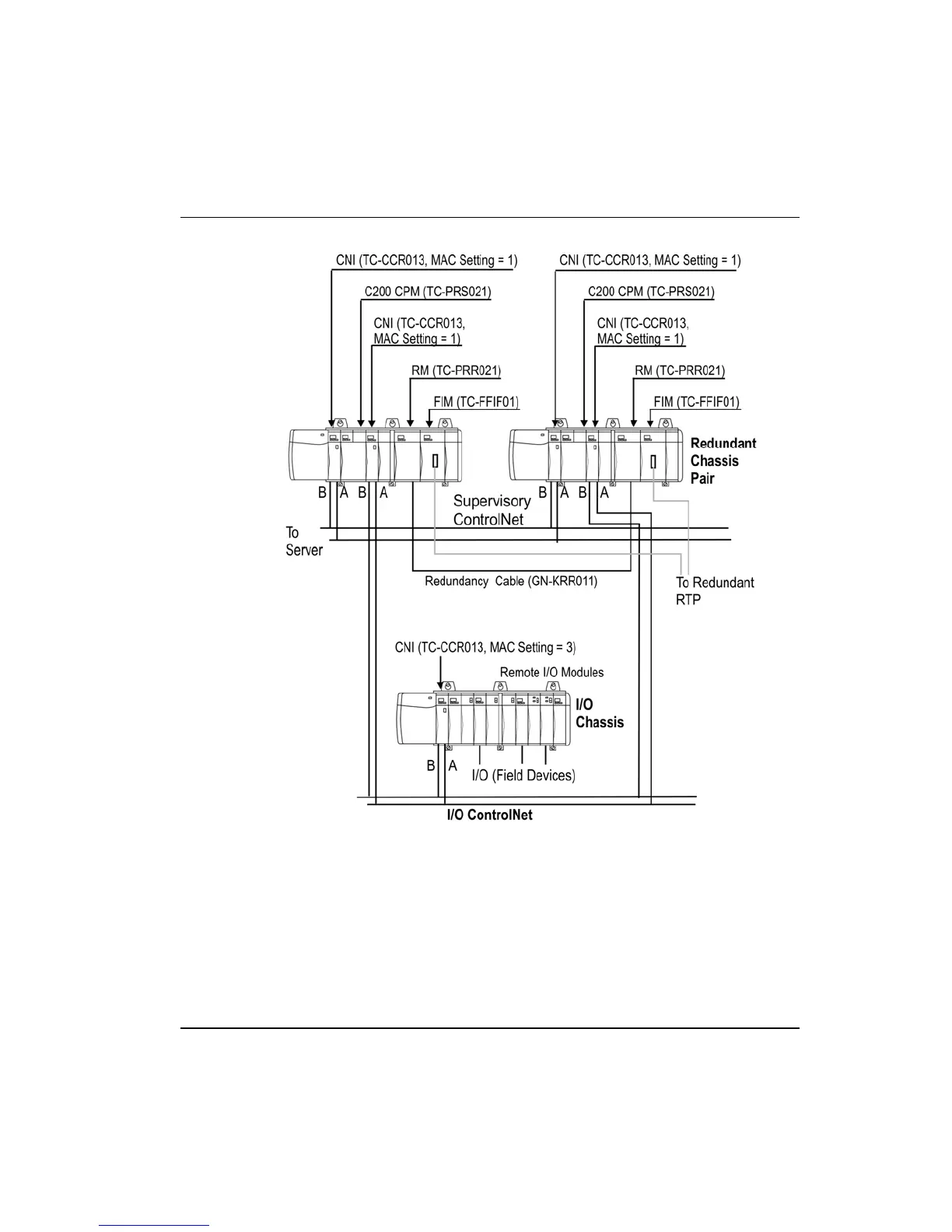

Figure 14 Typical RCP setup in 10-slot chassis.

CIOM-A FIM versus C200 CPM redundancy

th the CIOM-A FIM and the C200 CPM or Controller redundancy use Redundancy

Modules in a Redundant Chassis Pair (RCP) configuration to provide redundant

functionality. The RCP does this by providing a pair of chassis, so a component failure in

one chassis switches the handling of the assigned functions to the other chassis. This is
