HPE FlexNetwork 5510 HI Series User Manual

116
Intra area: 2 Inter area: 3 ASE: 0 NSSA: 0
4. Configure route redistribution:
# Configure Switch C to redistribute static routes.
[SwitchC] ip route-static 3.1.3.1 24 10.4.1.2
[SwitchC] ospf
[SwitchC-ospf-1] import-route static
[SwitchC-ospf-1] quit
# Display OSPF routing information on Switch D.
<SwitchD> display ospf routing
OSPF Process 1 with Router ID 10.5.1.1
Routing Table
Routing for network
Destination Cost Type NextHop AdvRouter Area
10.2.1.0/24 22 Inter 10.3.1.1 10.3.1.1 0.0.0.2
10.3.1.0/24 10 Transit 10.3.1.2 10.3.1.1 0.0.0.2
10.4.1.0/24 25 Inter 10.3.1.1 10.3.1.1 0.0.0.2
10.5.1.0/24 10 Stub 10.5.1.1 10.5.1.1 0.0.0.2
10.1.1.0/24 12 Inter 10.3.1.1 10.3.1.1 0.0.0.2
Routing for ASEs
Destination Cost Type Tag NextHop AdvRouter
3.1.3.0/24 1 Type2 1 10.3.1.1 10.2.1.1
Total nets: 6
Intra area: 2 Inter area: 3 ASE: 1 NSSA: 0
The output shows that an external route imported from the NSSA area exists on Switch D.
OSPF DR election configuration example
Network requirements
As shown in Figure 29:
• Enable OSPF on Switches A, B, C, and D on the same network.
• Configure Switch A as the DR, and configure Switch C as the BDR.

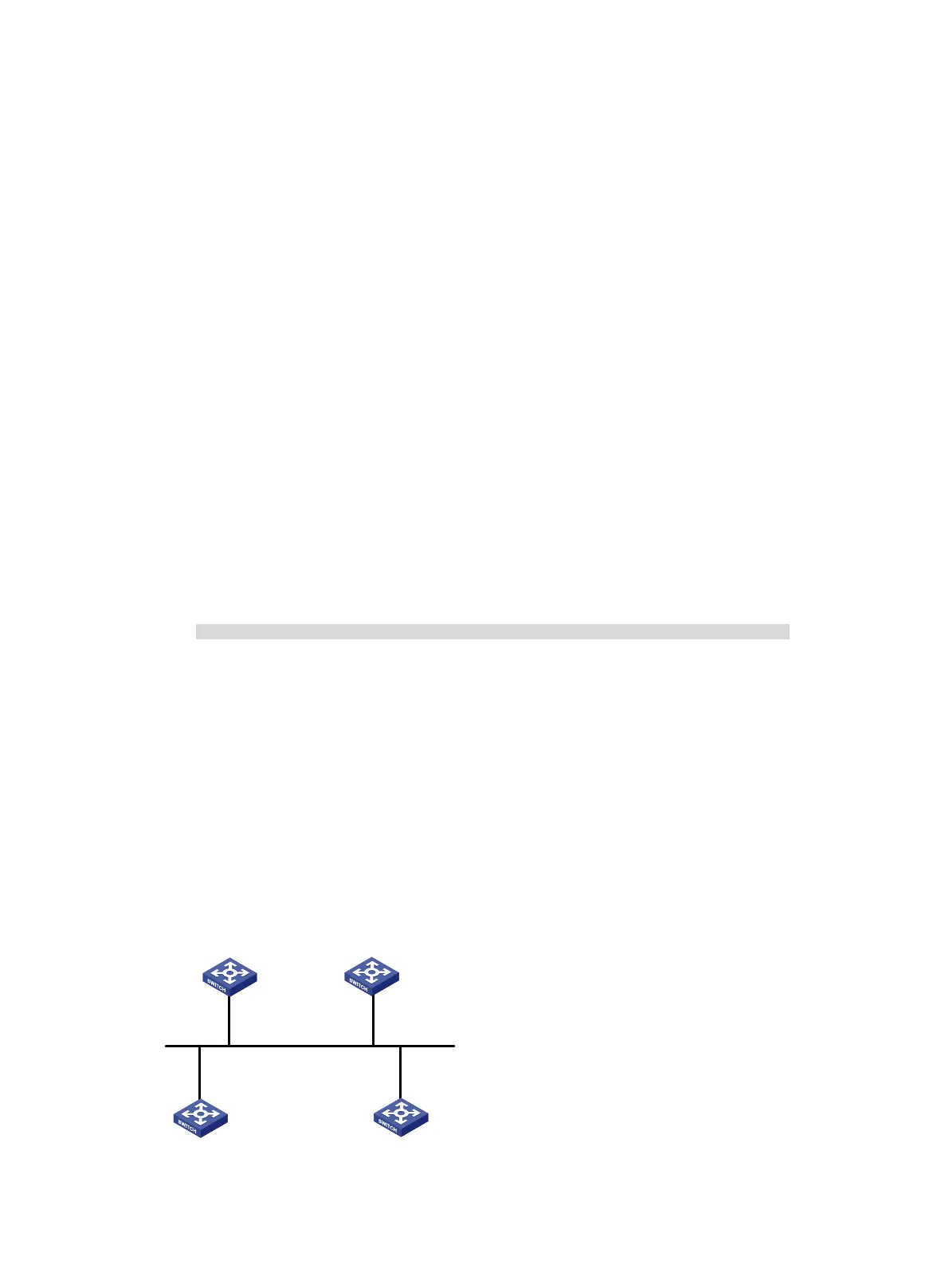

Figure 29 Network diagram
Switch A Switch B
Switch C
Switch D
Vlan-int1
192.168.1.1/24
Vlan-int1
192.168.1.2/24
Vlan-int1
192.168.1.3/24
Vlan-int1
192.168.1.4/24
DR
BDR
