405
ï‚¡ Dynamic route update can be implemented among them with RIPng.
3. Enable RIPng GR on Switch A.
<SwitchA> system-view
[SwitchA] ripng 1
[SwitchA-ripng-1] graceful-restart
Verifying the configuration
# Restart RIPng process 1 on Switch A.
[SwitchA-ripng-1] return
<SwitchA> reset ripng 1 process
Reset RIPng process? [Y/N]:y
# Display GR information on Switch A.
<SwitchA> display ripng 1 graceful-restart
RIPng process: 1
Graceful Restart capability : Enabled
Current GR state : Normal
Graceful Restart period : 60 seconds
Graceful Restart remaining time: 0 seconds
RIPng NSR configuration example
Network requirements
As shown in Figure 96, Switch S, Switch A, and Switch B learn IPv6 routing information through
RIPng.
Enable RIPng NSR on Switch S to ensure correct routing when an active/standby switchover occurs
on Switch S.

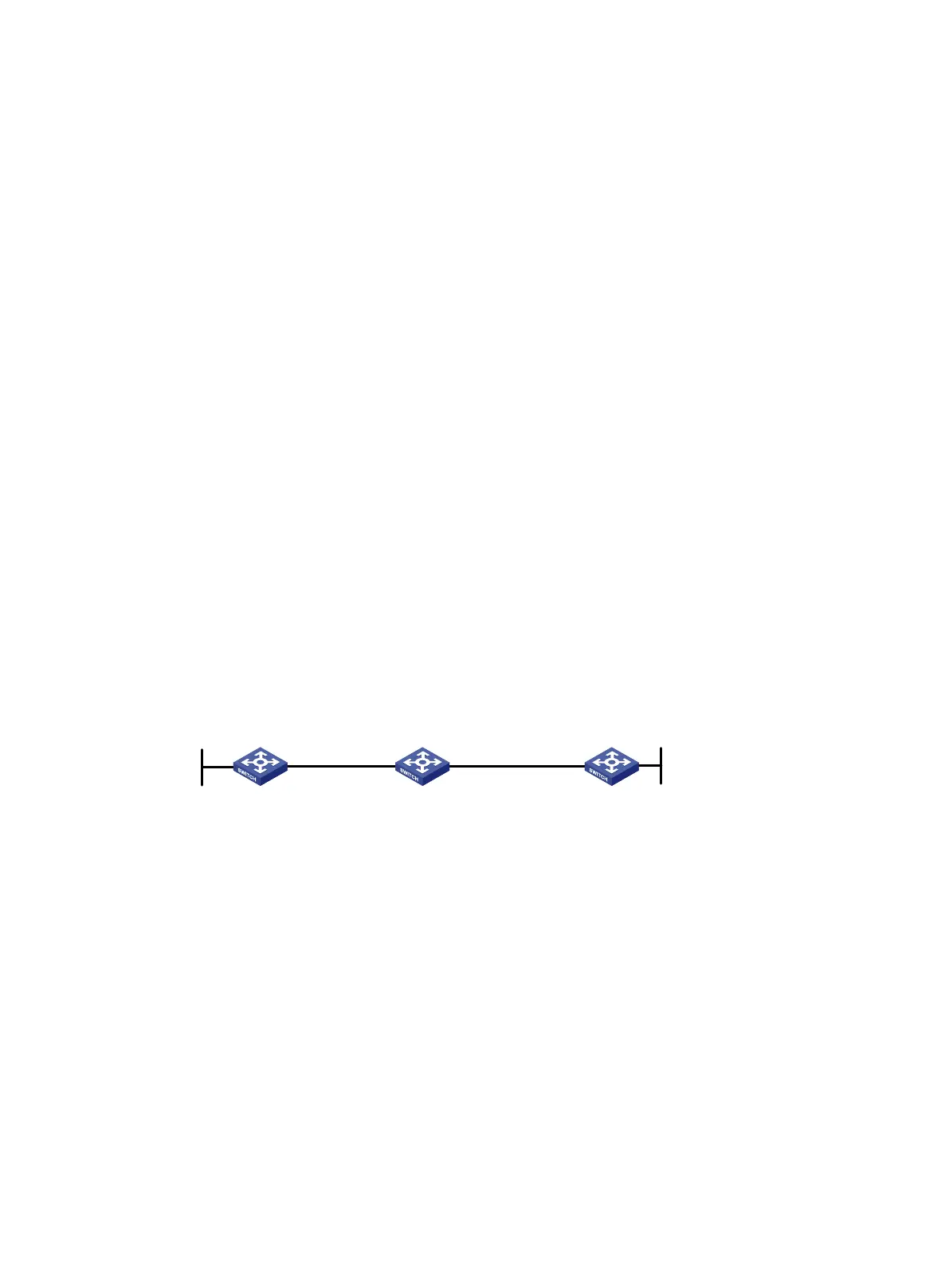

Figure 96 Network diagram
Configuration procedure
1. Configure IPv6 addresses for interfaces. (Details not shown.)
2. Configure RIPng on the switches to ensure the following: (Details not shown.)
ï‚¡ Switch S, Switch A, and Switch B can communicate with each other at Layer 3.
ï‚¡ Dynamic route update can be implemented among them with RIPng.
3. Enable RIPng NSR on Switch S.
<SwitchS> system-view
[SwitchS] ripng 1
[SwitchS-ripng-1] non-stop-routing
[SwitchS-ripng-1] quit
Verifying the configuration
# Perform an active/standby switchover on Switch S.
[SwitchS] placement reoptimize
Predicted changes to the placement
Loop 0
2002::2/128
Vlan-int100
1200:1::1/64
Vlan-int100
1200:1::2/64
Vlan-int200
1400:1::2/64
Vlan-int200
1400:1::1/64
Loop 0
4004::4/128
Switch S
Switch A
Switch B
