321
Total number of routes: 1
BGP local router ID is 4.4.4.4
Status codes: * - valid, > - best, d - dampened, h - history,
s - suppressed, S - stale, i - internal, e - external
Origin: i - IGP, e - EGP, ? - incomplete
Network NextHop MED LocPrf PrefVal Path/Ogn
* >i 20.0.0.0 193.1.1.2 0 100 0 100i
The output shows that Switch D has learned route 20.0.0.0/8 from Switch C.
BGP confederation configuration example
Network requirements
As shown in Figure 72, split AS 200 into three sub-ASs (AS 65001, AS 65002, and AS 65003) to
reduce IBGP connections. Switches in AS 65001 are fully meshed.

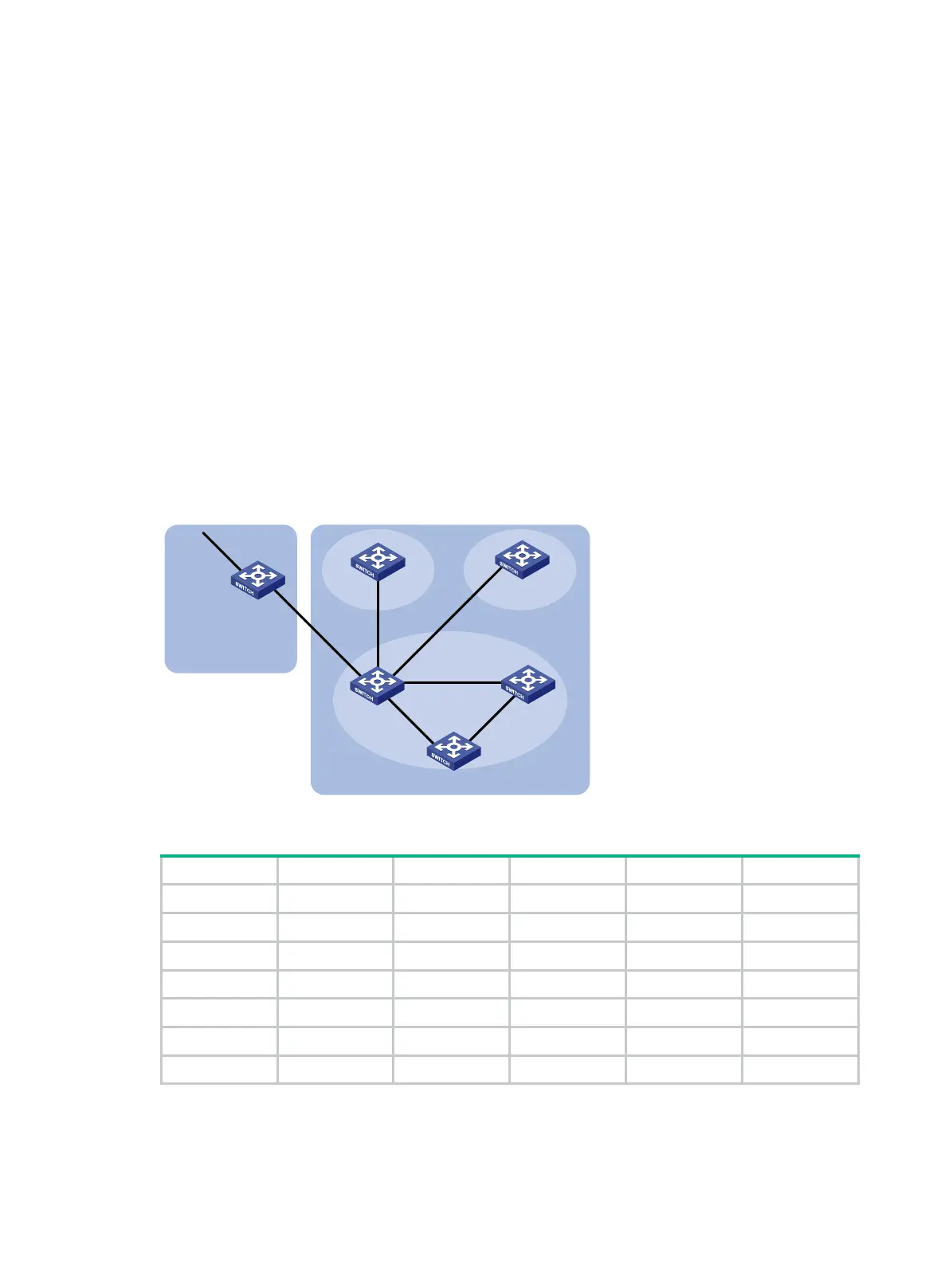

Figure 72 Network diagram
Table 17 Interface and IP address assignment
Device
Interface
IP address
Device
Interface
IP address
Switch A Vlan-int100 200.1.1.1/24 Switch D Vlan-int200 10.1.5.1/24
Vlan-int200 10.1.1.1/24 Vlan-int400 10.1.3.2/24
Vlan-int300 10.1.2.1/24 Switch E Vlan-int200 10.1.5.2/24
Vlan-int400 10.1.3.1/24 Vlan-int500 10.1.4.2/24
Vlan-int500 10.1.4.1/24 Switch F Vlan-int100 200.1.1.2/24
Switch B Vlan-int200 10.1.1.2/24 Vlan-int600 9.1.1.1/24
Switch C Vlan-int300 10.1.2.2/24
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure BGP confederation:
Switch F
Switch A
Switch D
Switch E
AS 200
AS 100
Vlan-int600
Switch B
Switch C
AS 65002
AS 65003
Vlan-int100
Vlan-int100
AS 65001
Vlan-int200
Vlan-int300
Vlan-int400
Vlan-int500
Vlan-int400
Vlan-int500
Vlan-int200
Vlan-int200
Vlan-int300
Vlan-int200
