5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 3.000/4.400/9.000/2.332 ms
BGP route summarization configuration example
Network requirements
As shown in Figure 68, run EBGP between Switch C and Switch D, so the internal network and
external network can communicate with each other.
• In AS 65106, perform the following configurations so the devices in the internal network can
communicate:
ï‚¡ Configure static routing between Switch A and Switch B.
ï‚¡ Configure OSPF between Switch B and Switch C.
ï‚¡ Configure OSPF to redistribute static routes.
• Configure route summarization on Switch C so BGP advertises a summary route instead of
advertising routes to the 192.168.64.0/24, 192.168.74.0/24, and 192.168.99.0/24 networks to
Switch D.

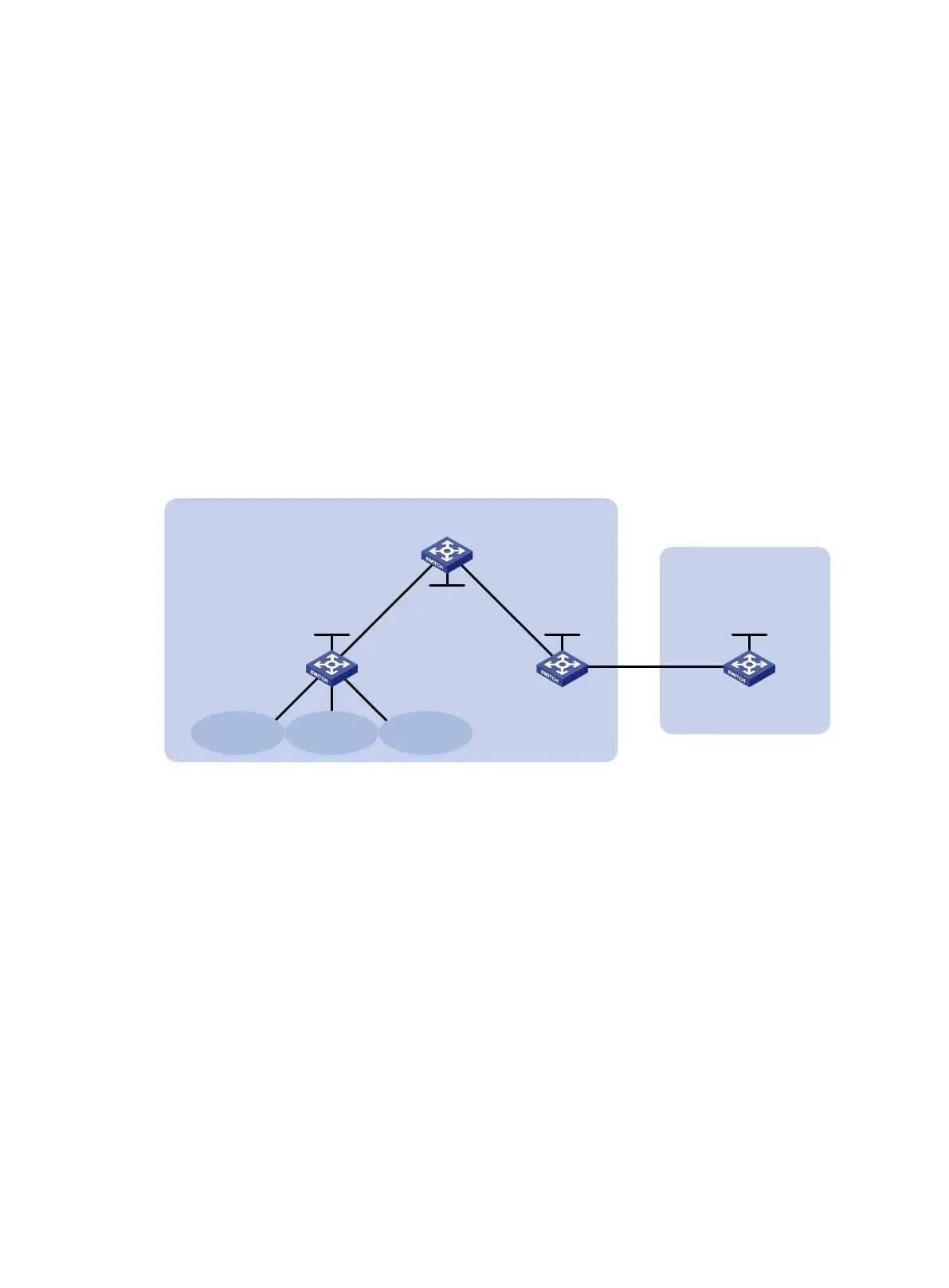

Figure 68 Network diagram
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure static routing between Switch A and Switch B:
# Configure a default route with the next hop 192.168.212.1 on Switch A.
<SwitchA> system-view
[SwitchA] ip route-static 0.0.0.0 0 192.168.212.1
# Configure static routes to 192.168.64.0/24, 192.168.74.0/24, and 192.168.99.0/24 with the
same next hop 192.168.212.161 on Switch B.
<SwitchB> system-view
[SwitchB] ip route-static 192.168.64.0 24 192.168.212.161
[SwitchB] ip route-static 192.168.74.0 24 192.168.212.161
[SwitchB] ip route-static 192.168.99.0 24 192.168.212.161
3. Configure OSPF between Switch B and Switch C and configure OSPF on Switch B to
redistribute static routes:
# Configure OSPF to advertise the local network and enable OSPF to redistribute static routes
on Switch B.
[SwitchB] ospf
Loop0
1.1.1.1/32
Loop0
3.3.3.3/32
Loop0
4.4.4.4/32
Vlan-int100
172.17.100.1/24
Vlan-int100
172.17.100.2/24
Vlan-int110
192.168.212.1/24
Vlan-int110
192.168.212.161/24
External network
AS 64631
Internal network
AS 65106
Switch A
Distribution layer device
Loop0
2.2.2.2/32
Vlan-int200
10.220.2.16/24
Vlan-int200
10.220.2.217/24
192.168.64.0/24
192.168.74.0/24
192.168.99.0/24
Switch B
Core layer device
Switch C
Boundary device
Switch D
External network device
