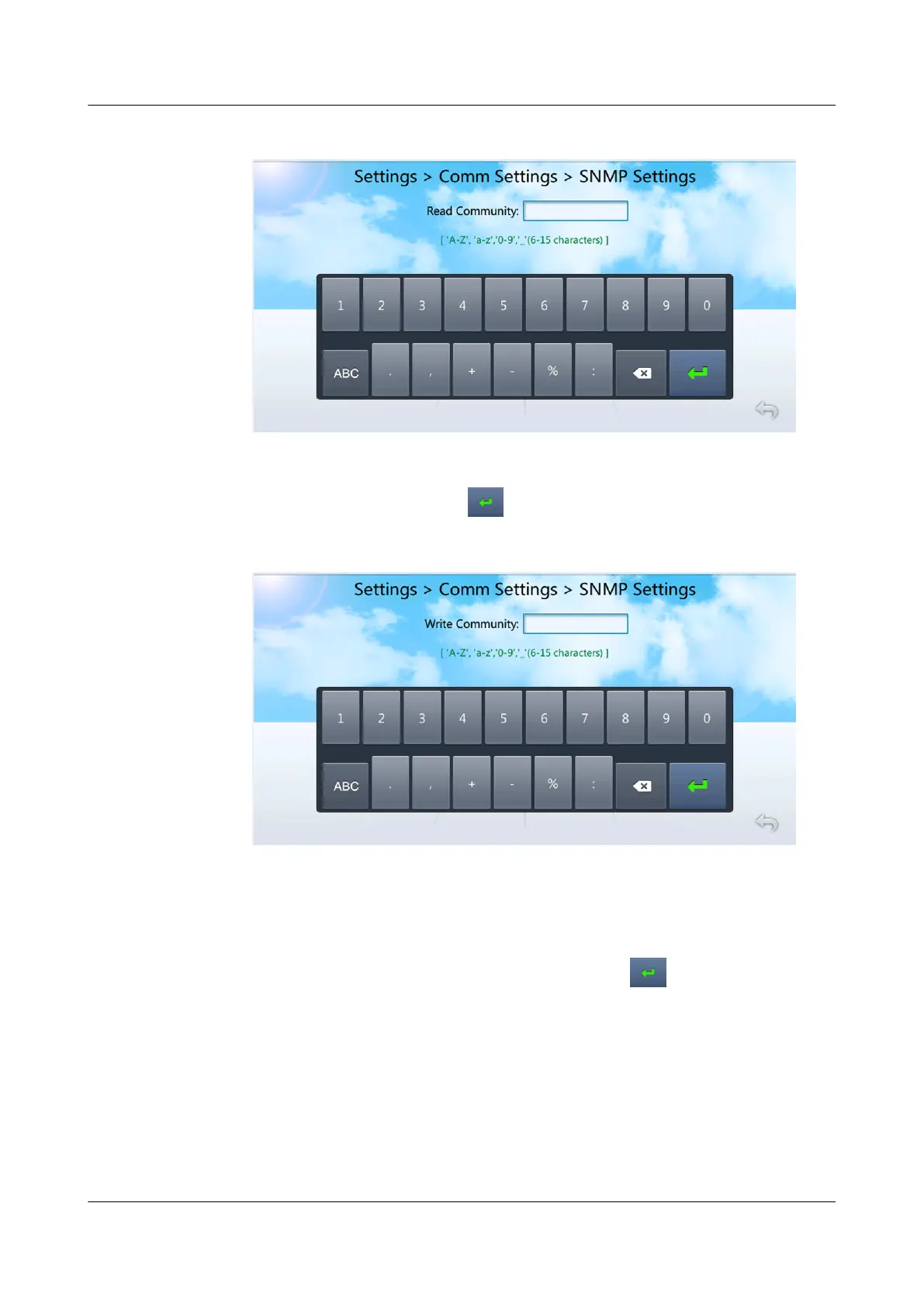

Figure 4-21 Setting read community
2. Tap the text box after Write Community, as shown in Figure 4-22. Set Write
Community as planned, tap and then tap Submit.
Figure 4-22 Setting write community
Step 4 Add an SNMPv3 user.
1. Tap Add under SNMP V3.
2. Enter a planned value for User Name, select values for Auth Protocol and
Prop Protocol from drop-down list boxes, and tap
, as shown in Figure
4-23.
MD5 and DES protocols are not secure. It is recommended that you set Auth
Protocol to SHA, and set Prop Protocol to AES. The following operations use
the recommended settings as an example.
NetCol5000-A025 In-row Air Cooled Smart Cooling
Product
User Manual (300 mm Width) 4 Power-On Commissioning
Issue 15 (2020-12-10) Copyright © Huawei Technologies Co., Ltd. 149
