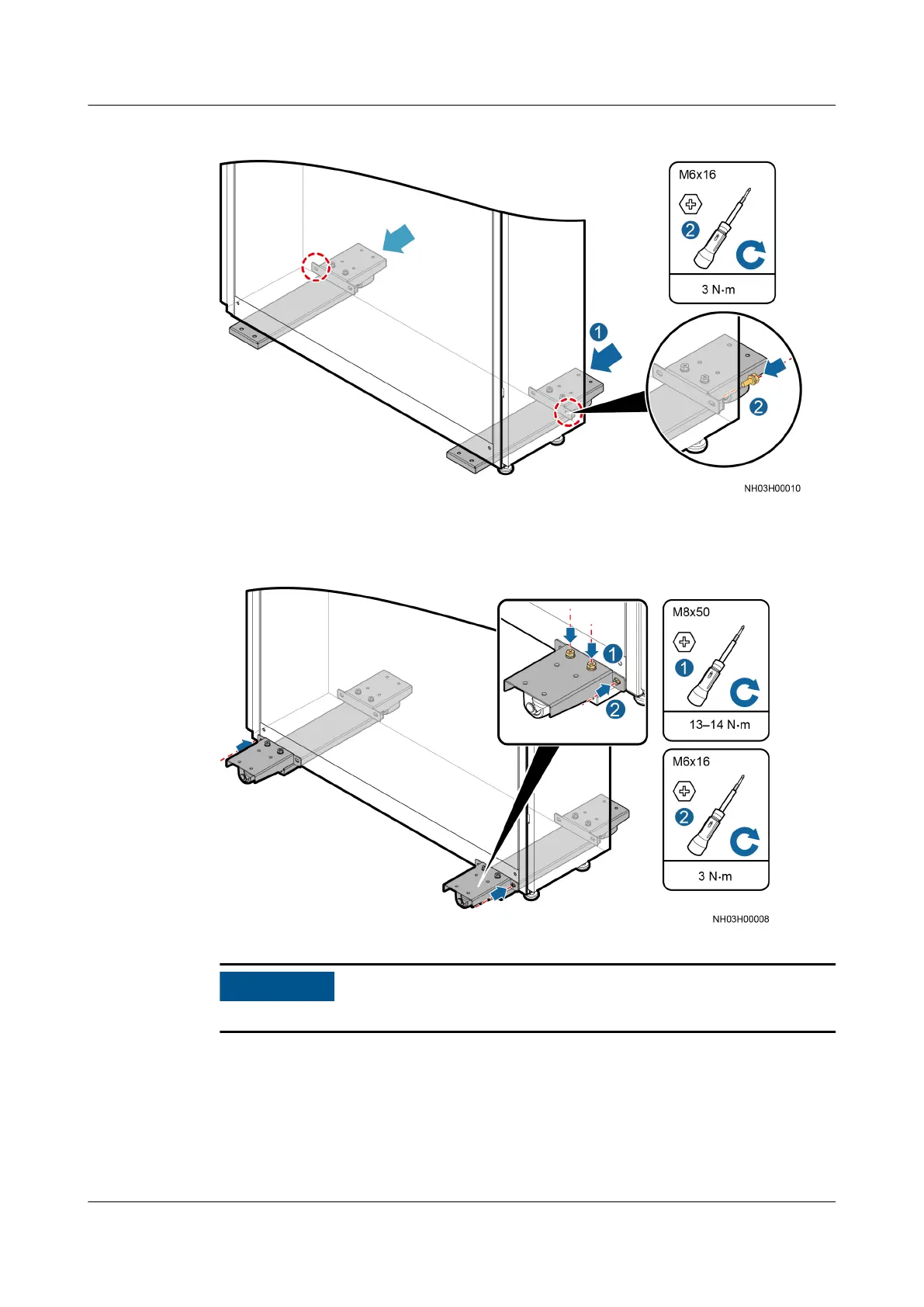

Figure 3-16 Installing a transport tool
Step 3 Reinstall the removed cover using M8x50 bolts, as shown by (1) in Figure 3-17.
Figure 3-17 Reinstalling the cover on a transport tool
NO TICE
Secure the transport tool to the cabinet through the hole near the cabinet door.
Step 4 Secure the transport tool to the cabinet using M6x16 bolts, as shown by (2) in
Figure 3-17.
Step 5 Wrench an anchor bolt anticlockwise to lower a cabinet, move the cabinet to the
installation place using the transport tool, and then remove the transport tool.
----End
